Block C : Calibration Data
C 02 Belt Circuit Time
Range: 1.0...9999.0 s Preconfigured value: 30.0 s
Determines the measurement period for the impulse/belt circuit calibration program.
Usually, the time chosen is the time required for one belt circuit.
C 03 LC Characteristic Value
Range: 0.01...9.9999 mV/V Preconfigured value: 2.8500 mV/V
Characteristic value (transmission factor) of the load cell.
C 04 LC Rated Capacity
Range: 0.5000...220,000.0 kg Preconfigured value: 220.000 kg
Sum of the load cell rated capacities. Fixed bearings are counted as load cells.
C 05 Effective Platform length
Range: 0.1000...50.000 m Preconfigured value: 1.000 m
Effective weigh bridge length.

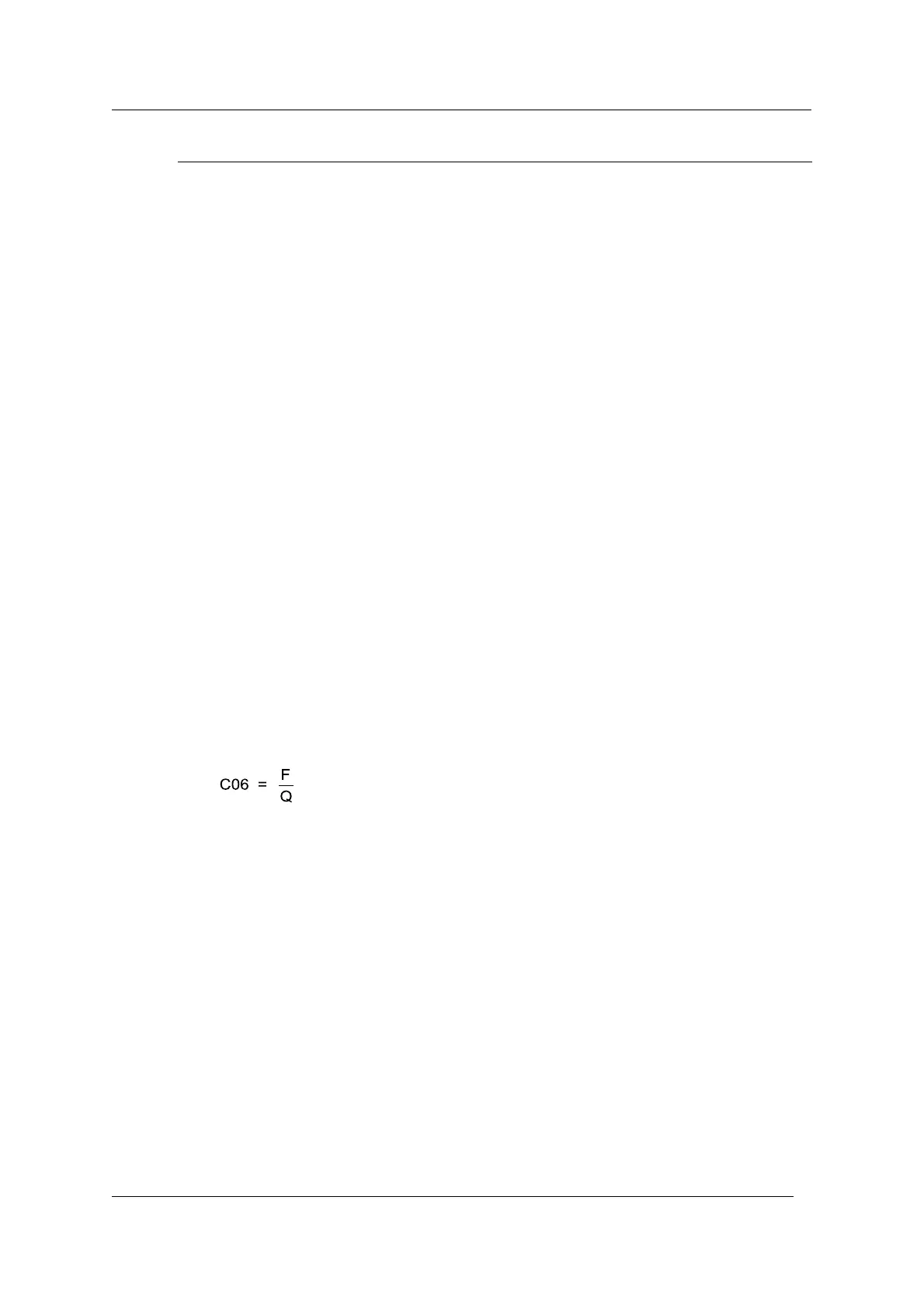

C 06 Lever Ratio
Range: 0.0100...2.0000 Preconfigured value: 1.0000
Lever transmission between weigh bridge’s force transducing weigh idler and the load cell.
Q = Bridge load
F = Load cell load
Load cells with leaf-spring parallel guides always have a lever transmission of 1.
C 07 Angle a
Range: 0.0...60.00 Degrees Preconfigured values: 0.00 Degrees
Inclination of scales’ longitudinal axis, when load cell installed perpendicular to the belt.
C 08 Effective Check Weight
Range: 0.001...22,000.0 kg Preconfigured value: 50.000 kg
Calibration weight simulates material weight applied to weigh bridge.
42 BV-H2346GB / 0833 Operating Manual INTECONT® Satus
© Schenck Process
