Block E : Analog Output

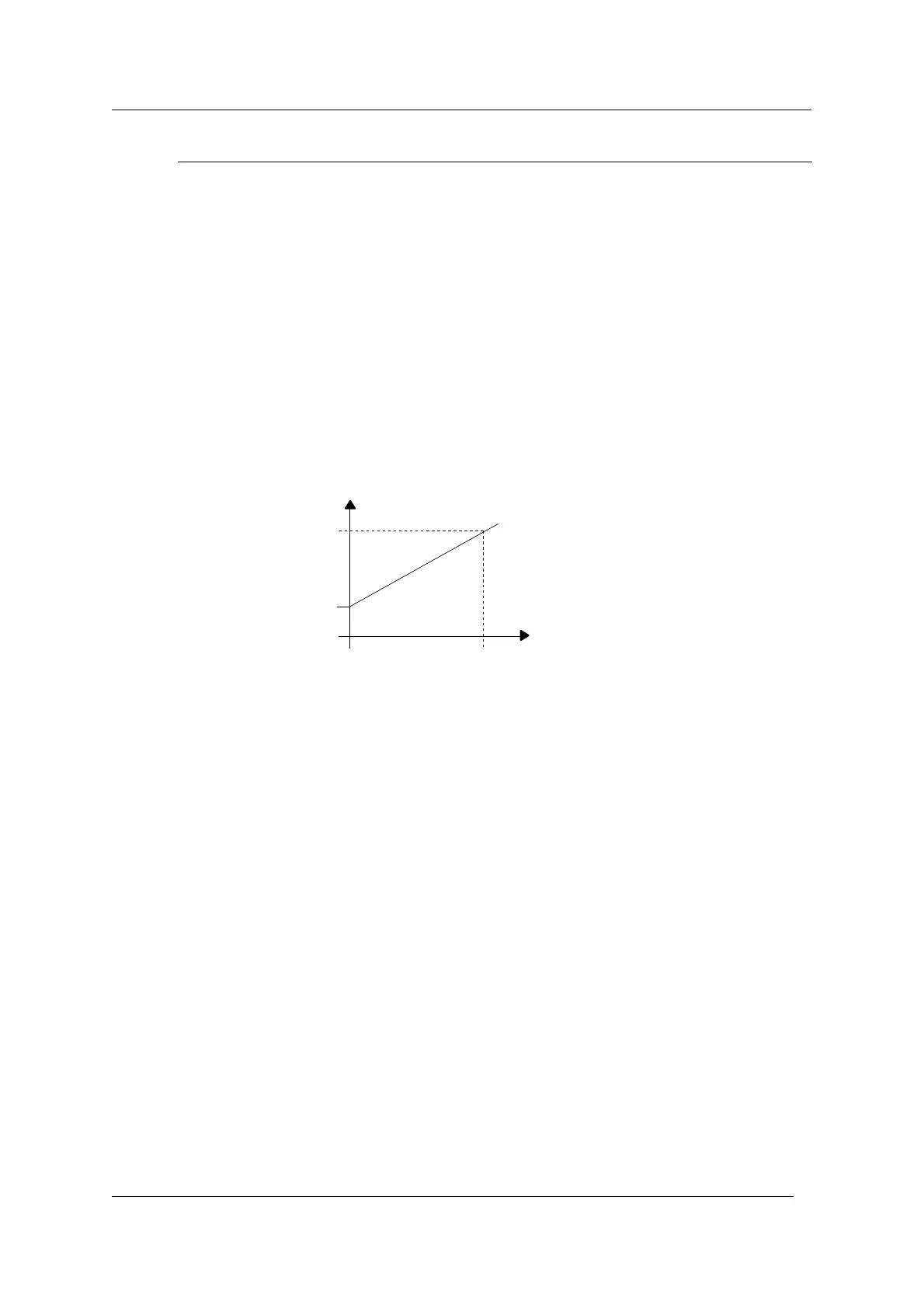

E 02 Elevation AO 1
Range: 0,00...20,00 mA Default: 4,00 mA
The output current for 0 feed rate.
The smallest value is limited to E 02, also in stop state of scale.
E 03 Limit Value AO 1
Range: 0,00...1000,00 mA Default: 20,00 mA
The output current for 100% feed rate (nominal value).
Range of output current is limited to 0...20 mA.
44 BV-H2346GB / 0833 Operating Manual INTECONT® Satus
© Schenck Process
i
END
E03
ANH
E02
0
100%
Feed Rate
