3.3 Operation
The menus can be accessed as follows:
• Direct access by pressing on the curve or measurement field, or
• by clicking on the menu soft key or any other soft key or
• by clicking on a icon, or
• by moving finger up or down, left or right for scrolling or changing display

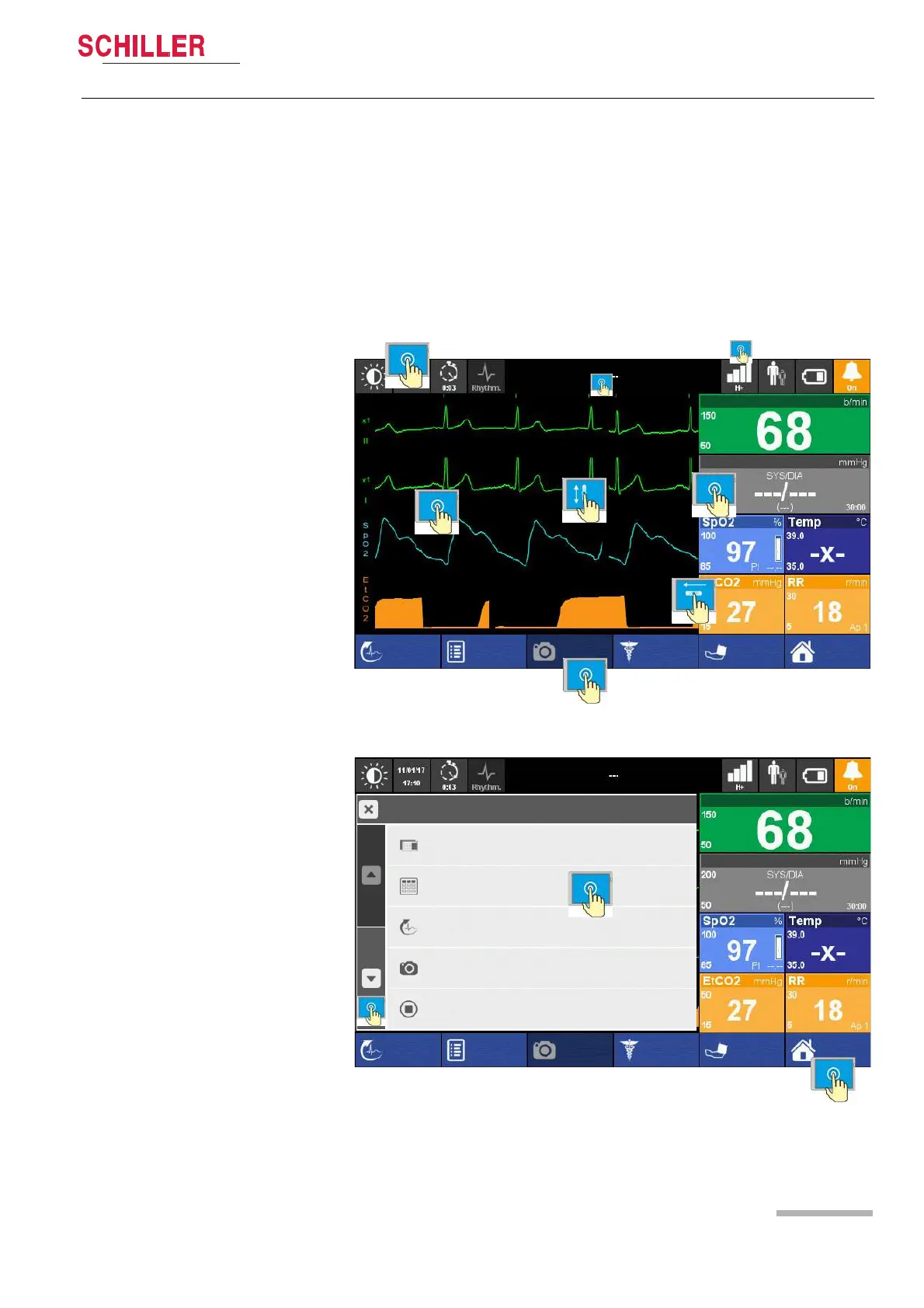

Fig. 3.5 Display with main menu and the touch-sensitive areas
Screenshot
Manual Def
Start
Menu
HR
---
Off
NIBP
EventR-ECG
Adult
Start
Menu
HR
---
Off
NIBP
Adult
Stop Intervention
00547_160318_103611
Trends
Screenshot
Manual Def
Event
R-ECG
R-ECG
Screenshots
Select an other view
To Next Page
