4 Monitoring
4.4 ECG and heart rate monitoring
Page 44
Art. no.: 0-48-0227 Rev.: g
DEFIGARD/PHYSIOGARD Touch 7
4.4.3 Connecting a 4-wire ECG patient cable
4.4.4 Connecting a 10-wire ECG patient cable
When a patient cable as well as the defibrillation electrodes are connected, you can
select the heart rate signal source by touching the first curve (standard ECG:II) on the
display and selecting ECG Defi. The first display curve is used to calculate the heart
rate unless the HR source is set to Pleth.

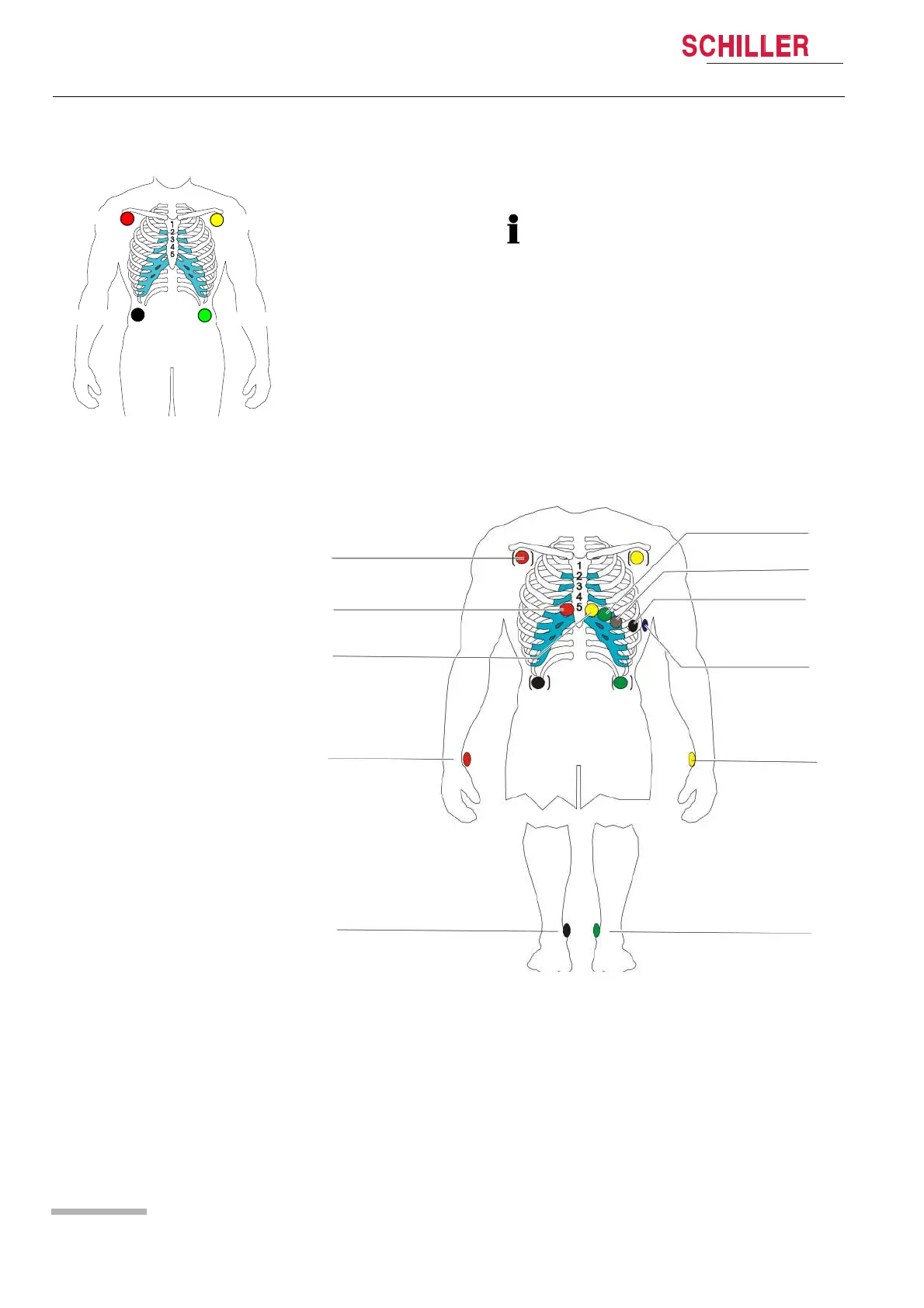

Fig. 4.4 4-wire cable
*Note
The electrode positions shown here (O)
are based on the diagnostic ECG. For
patient monitoring, the limb electrodes
can be attached on the upper body.
Fig. 4.5 10-wire cable
Yellow
Red
Black
Green
Black
Green
C3 green
C4 brown
C5 black
C6 purple
Left Arm - yellow
Right Arm - red
*Note
C1 red
C2 yellow
