How to connect a NO/NC contact on Classic PDU and ethernet PDU?

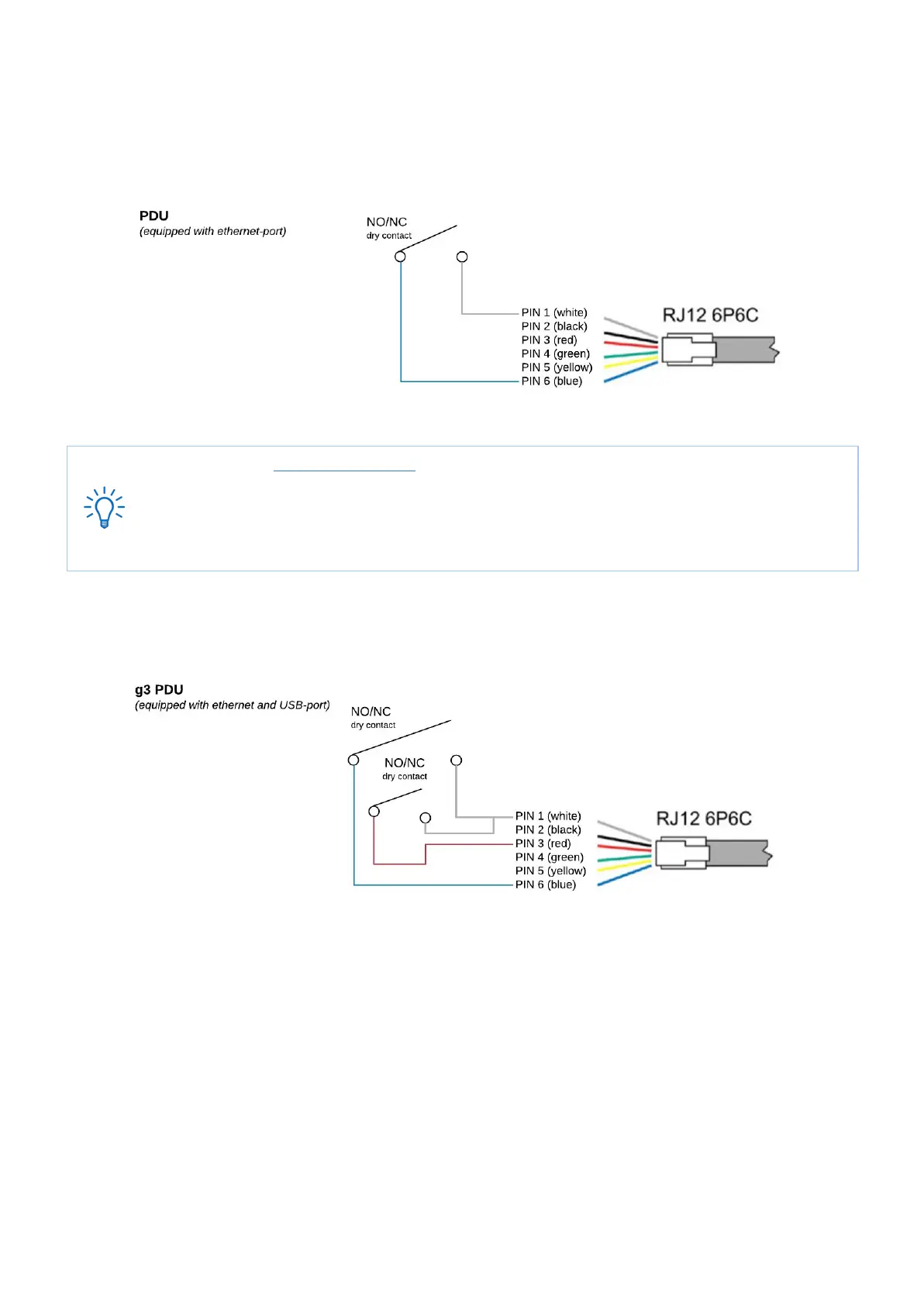

The sensor port makes use of the RJ12 6P6C standard (= 6 position, 6 conductor). To connect a NO/NC contact on the PDU
sensor port, you have to make use of pin 1 and pin 6 ; as shown in the figure below.




Note that on a PDU only 1 NO/NC contact can be connected.

Status of the contact will be displayed. It is not possible to send a command.

Classic PDUs (= without ethernet port) do not support a NO/NC contact

How to connect NO/NC contact on a g3 PDU?
3rd generation PDUs and DPM’ s are equipped with a USB-port and are able to operate two NO/NC dry switch contacts:

 


