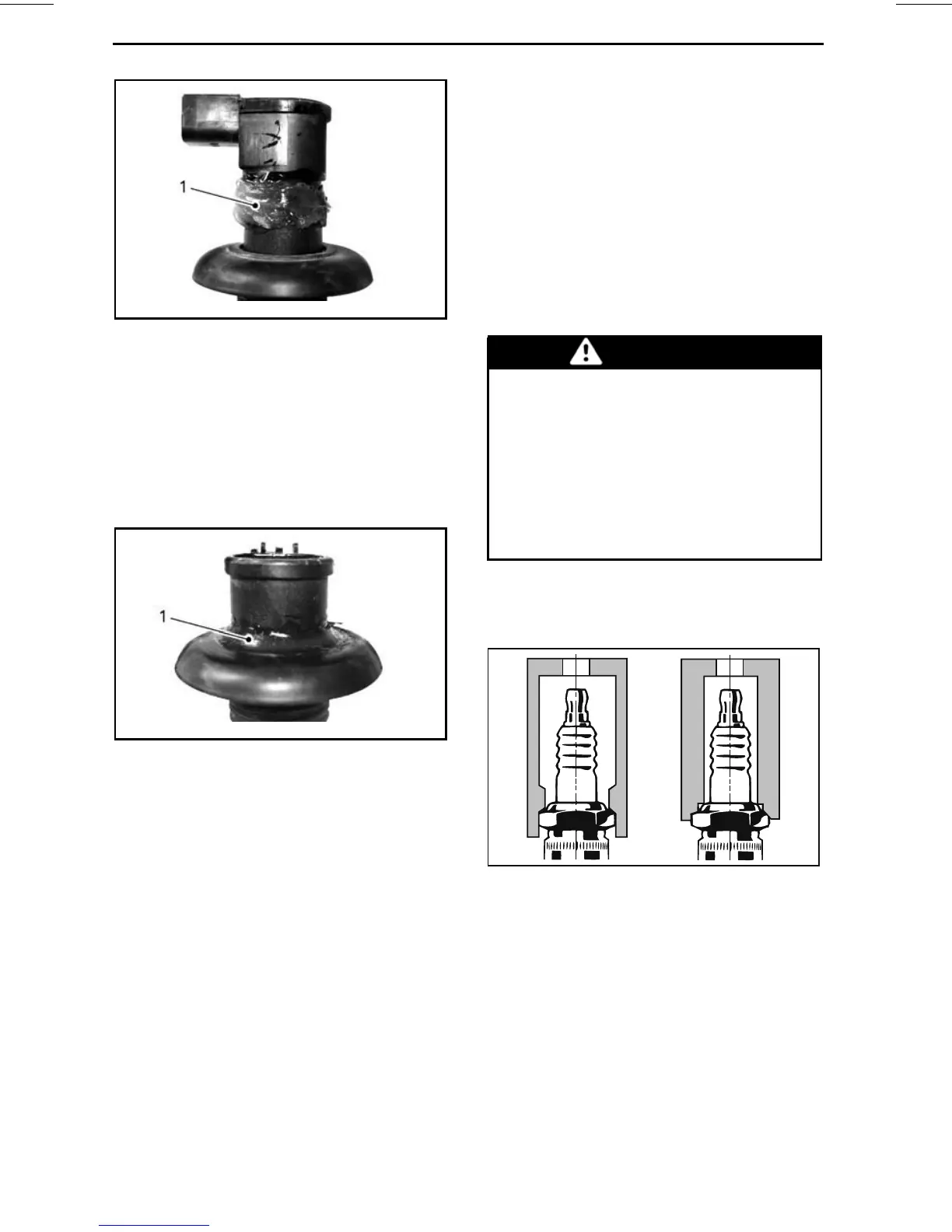

MAINTENANCE PROCEDURES
sbs2009-011-001_a
1. Apply product here
3. Pull rubber seal back on its seat
making sure the tabs on the ignition
coil and the slots in the seal properly
match together.
4. Leave a ring of grease on top of the
seal as shown to act as a water bar-
rier. Wipe off the excess.
sbs2009-011-003_a
1. Correctly shaped excess of product
5.Pushtheignitioncoildowntose-
curely install it on the spark plug tip.
NOTE: Ensure the seal seats properly
with the top surface of the engine.
NOTE: Ensure the seal seats properly
with the engine top surface.
6. Reconnect ignition coil connectors.
7. To reinstall engine cover, pu
sh it
downward until it snaps.
8. Wipe up any residual water f
rom the
engine.
9. Disconnect the garden
hose.
NOTE: It is recommended to fog the
engine valves with XPS
Lube. Contact
your authorized Sea-Doo dealer.
Spark Plugs
Spark Plug Removal
1. Open seat.
2. Remove rear ventilation box (as ap-
plicable).
3. Disconnect the ignition coil input
connector.
4. Remove ignition coil. Refer to
IGNI-
TION COIL REMOVAL
.
WARNING
Never remove an ignition coil from
a spark plug without disconnect-
ing it from the wiring harness.
Flammable vapors may be present
in the bilge. Should the tether cord
be installed on the engine cut-off
switch, a spark could be generated
at the coil spark plug end which
could cause an explosion.
5. Using a spark plug socket, release
the torque applied to the spark plug.
A00E0BA
2
1
1. Approved socket
2. Improper socket
6. Clean the spark plug and cylinder
headwithpressurizedair.
7. Unscrew spark plug then use the
ignition coil to take spark plug out of
spark plug hole.
134
