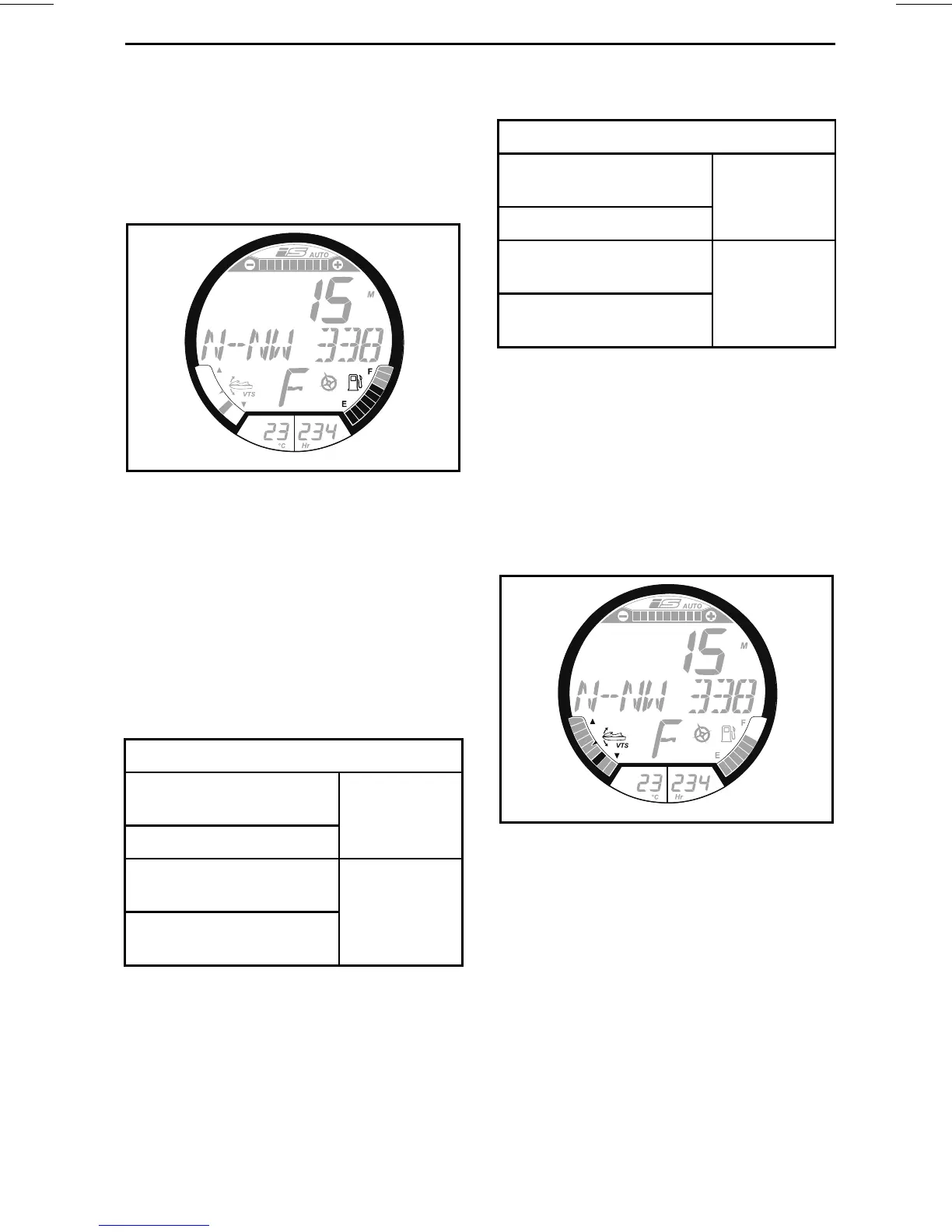

MULTIFUNCTION GAUGE
5) Fuel Level Indication
A bar gauge located in the bottom RH
side of the multifunction display con-
tinuously indicates the amount of fuel
in the fuel tank while riding.
smo2009-002-114_k
FUEL LEVEL INDICATION
When the fuel tank is full, 8 segments
(bars) of the indicator are turned on.
The top segment is not used.
Low Fuel Level Warning
When there is only 2 segments of fuel
indicated(approximately25% fueltank
capacity or 14 L (3.7 U.S. gal.), the fol-
lowing warnings will be ON.
All Models Except GTX 155
LOW FUEL LEVEL WARNING
Last 2 fuel gauge
segments
Fuel tank symbol (LED)
ON
Audible warning (one
long beep)
Scrolling LOW FUEL
WARNING message
Periodically
GTX 155 Only
LOW FUEL LEVEL WARNING
Last 2 fuel gauge
segments
Fuel tank symbol (LCD)
Flashing
Audible warning (one
long beep)
Scrolling LOW FUEL
WARNING message
Periodically
6) VTS Position
The VTS position indication located in
the bottom LH side of the digitalscreen
shows the riding attitude of the water-
craft.
A single segment of a bar gauge type
indicatoristurned on to indicate the rel-
ative position of the watercraft bow.
smo2009-002-114_l
VTS POSITION INDICATION
Refer to
OPERATING INSTRUCTIONS
for more details on using the VTS.
_______________
59
