EQUIPMENT
smo2009-002-121

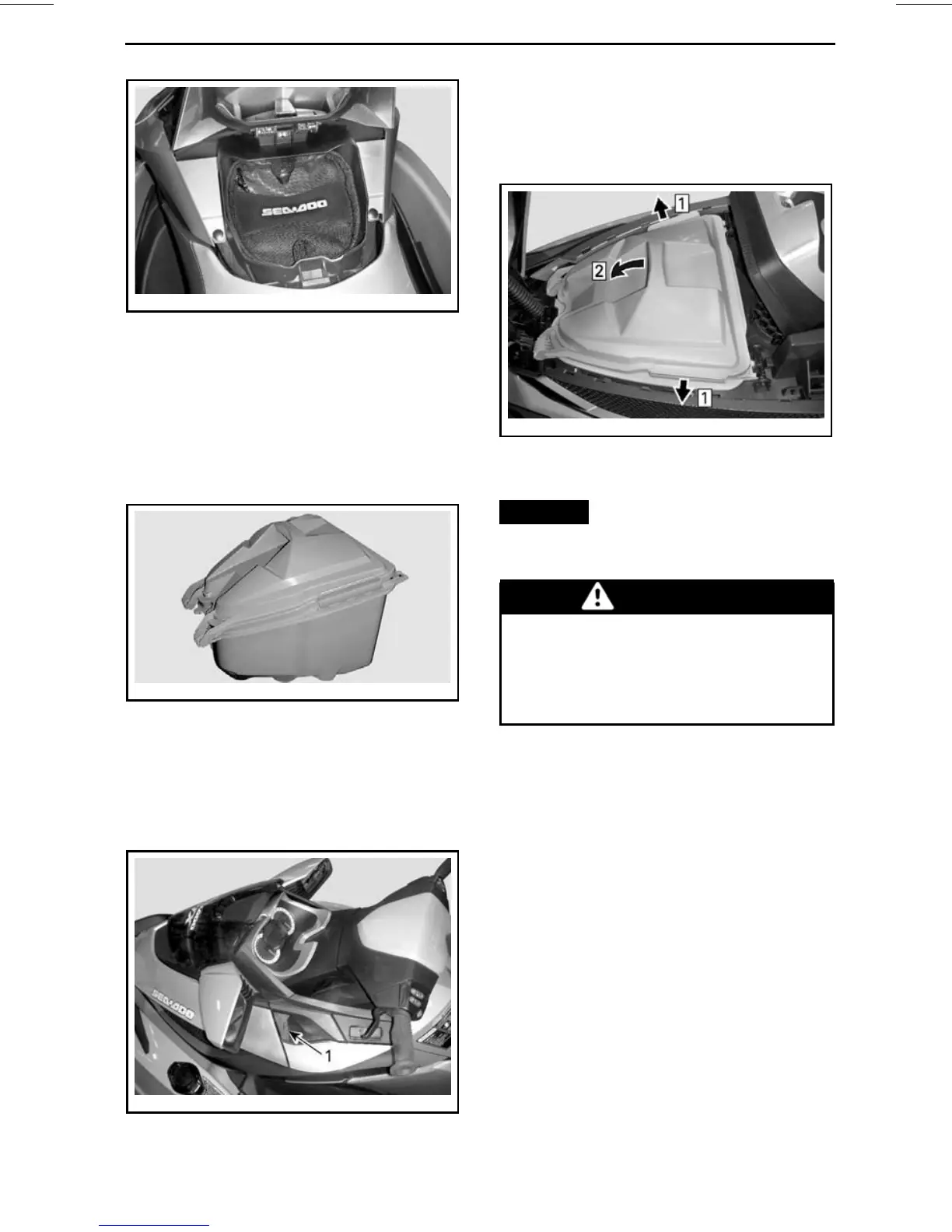

GLOVE BOX LINER BAG
2) Front Storage Bin
A watertight storage bin that can be
used to carry larger personal articles
is located under the front cover. The
storage bin is self-contained and re-
movable.
smo2009-002-136
FRONT STORAGE BIN
Storage Bin Access
Open the front storage compartment
cover by pulling upwards on the two
cover latch handles (one each side).
smo2009-002-122_a
TYPICAL - STORAGE BIN ACCESS
1. Front cover latch handles (o
ne each side)
HowtoOpenStorageBinCover
Release cover latches then pull on
cover handle to open.
smo2009-002-123_a
HOWTOOPENSTORAGEBIN
Step 1: Release cover latches
Step 2: Pull cover open
NOTICE
The maximum load al-
lowable for the front storage bin is
9 kg (20 lb) evenly distributed.
WARNING
Never leave any heavy or break-
able objects loose in the front stor-
age bin. Do not overload. Never
operate the watercraft with any
storage compartment cover open.
Storage Bin Removal
Ensure the latches on the storage bin
cover are properly locked.
Push back on the latches that lock the
storage bin in position. Then pull up on
the storage bin handle while tilting the
bin forward to release the front tabs,
and remove it from the watercraft.
_______________
71
