EQUIPMENT
WARNING
When trailering the watercraft,
NEVER leave a wakeboard in-
stalled on the rack. Otherwise,
wakeboard fin(s) could cause in-
jury to bystanders or wakeboard
could fly off on the road. The
bungee cords are under tension
and could spring back and whip
someone when released. Use cau-
tion.
To remove the wakeboard rack, de-
press the lever at the top of the rack
and remove it from its retaining brack-
ets.

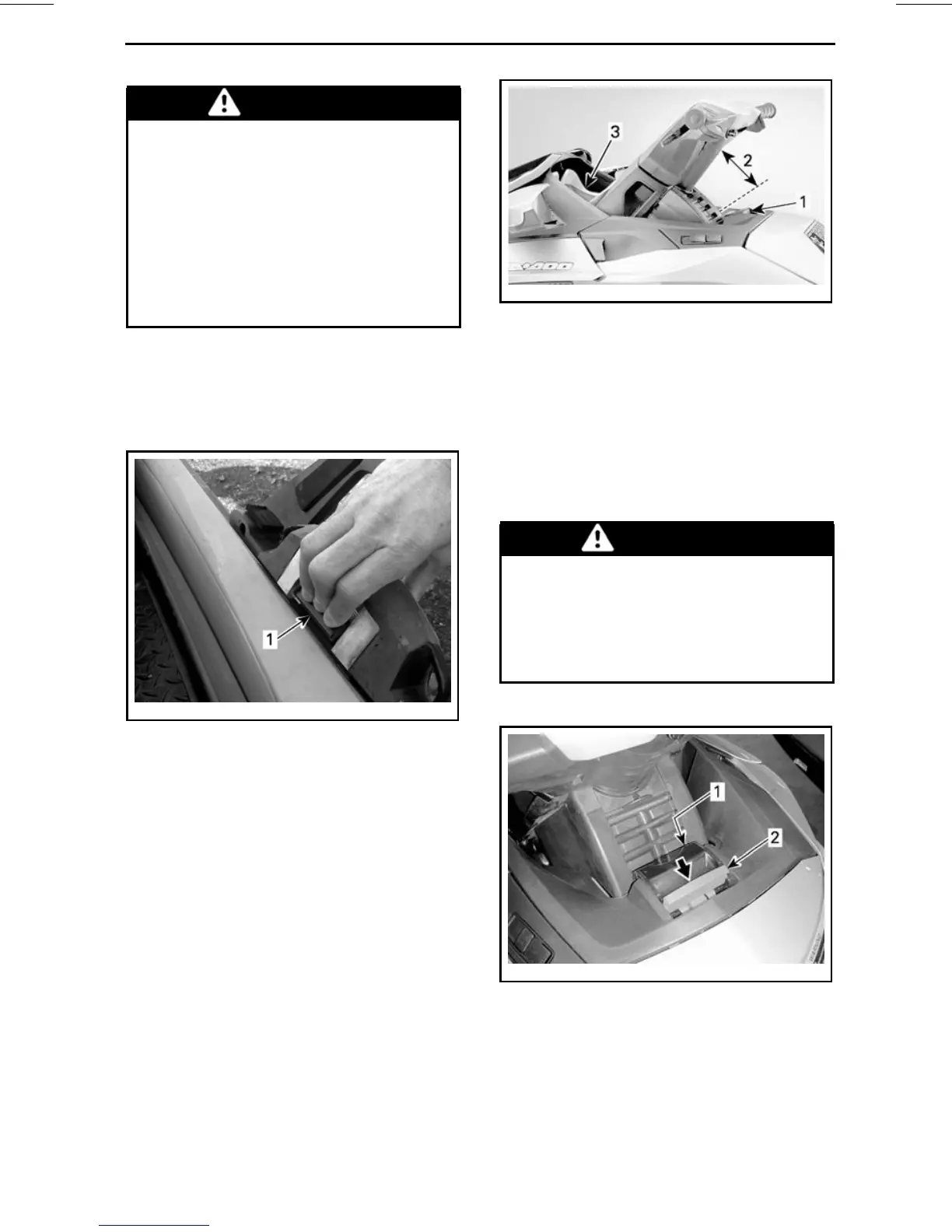

smo2010-002-010_a
WAKEBOARD RACK REMOVAL
1. Press this handle to release wakeboard rack
15) Tilt Adjustment
The handlebar position can be adjusted
to suit rider preferences.
The entire, handlebars, and steering
column tilts up or down as a unit.
To perform this adjustment, pull on the
release handle at the base of the steer-
ing column just ahead of the glove b
ox,
and tilt the handlebars to the desired
position.
sdd2009-001-088_a
TYPICAL
1. Release handle
2. Available tilt adjustment
3. Multifunction gauge
When the handlebars are at the de-
sired position, release the latch handle
and ensure the latch pawl properly en-
gages a groove in the steering column.
Also ensure the latch handle is in the
forward position.
WARNING
To prevent sudden movement of
the steering column, always en-
surethepawlonthesteeringcol-
umn latch is properly engaged in
one of the grooves on the steering
column.
smo2009-002-116_a
STEERING COLUMN ADJUSTMENT LATCH
NOT SECURED
1. Latch pawl engaged in steering column
groove
2. Release handle unlocked
_______________
81
