MULTIFUNCTION GAUGE
7) iS Position
GTX Ltd iS, GTX iS and RXT iS
The iS display (intelligent Suspension)
provides a visual indication of the rela-
tive height of the suspension.
It also indicates if the suspension is in
AUTO mode of operation.
1
2

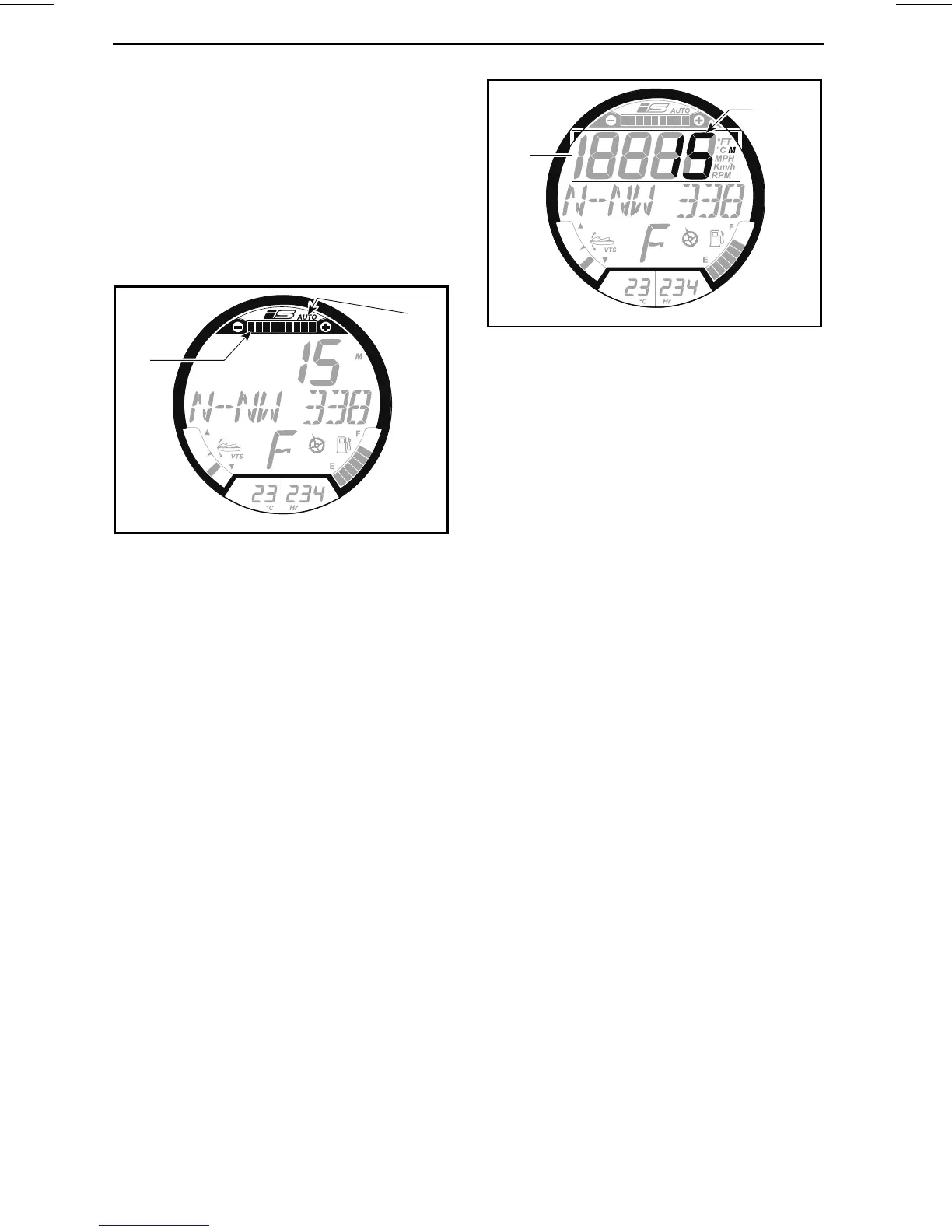

smo2009-002-114_m
1. iS position indicator
2. iS AUTO mode indicator
When the suspension system is oper-
ating in AUTO mode, the AUTO indica-
tor and all bar segments of the position
indicator will be on.
When the suspension height is ad-
justed manually using the iS button,
the system switches to MANUAL
mode of operation. The AUTO indi-
cation disappears and only one bar
segment of the position indicator will
be on.
Refer to
OPERATING INSTRUCTIONS
for more information on using the sus-
pension.
8) NumericalDisplay
The numerical display is used to pro-
vide a variety of indications as selected
by the operator using the DISPLAY
function in the multifunction display.
1
2
smo2009-002-114_n
TYPICAL
1. Water depth indication (GTX LTD iS)
2. Numerical display
60
