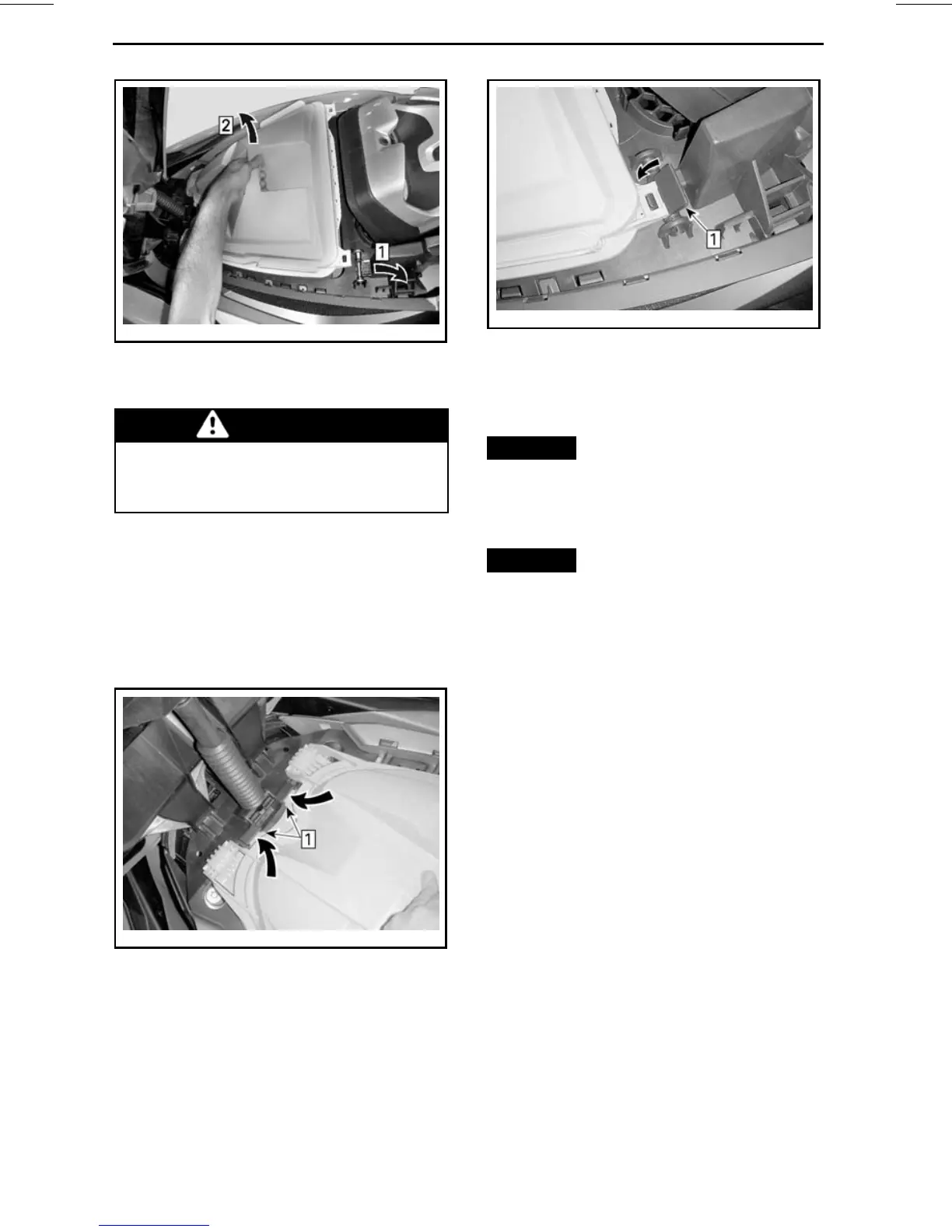

smo2009-002-124_a
STORAGE BIN REMOVAL
Step 1: Push back on storage bin latches
Step 2: Lift and tilt forward to release front tabs
WARNING
Never store or carry anything un-
derneath storage bin, or between
the moving deck and fixed deck.
Storage Bin Installation
As you insert the storage bin in the
front storage compartment, tilt it for-
ward to insert the storage bin front
tabs in their retainers underneath the
storage cover shock support.
smo2009-002-125_a
Step 1: Insert storage bin fro
nt tabs
Pushdownonaftendofstorageb
in
to secure in place with locking latches
(one each side).
smo2009-002-126_a
Step 1: Push down onto latches to secure
Ensure storage bin is properly inserted
in the locking latches, and ensure the
latches are locked forward.
NOTICE
Never operate the water-
craft if the storage bin is not properly
secured.
All Models Without iS
NOTICE
Do not operate water-
craft if the front storage bin is not
installed, otherwise water will enter
bilge.
3) Rear Storage Bins
NOTE: Rear storage bins are only pro-
videdonRXT-iS,GTXiSandGTXLim-
ited iS models. Other models are
equipped withpanels that can be easily
removed for servicing the watercraft.
The RH panel provides access to the
battery.
Two storage bins are located under the
rear boarding platform. They are Ideal
for storing items such as a towrope,
first aid kit, fire extinguisher, and other
items.
When the boarding platform is closed,
it serves as the cover for both storage
bins.
The RH storage bin is specially de-
signed for storing an approved fire ex-
tinguisher (sold separately).
72
