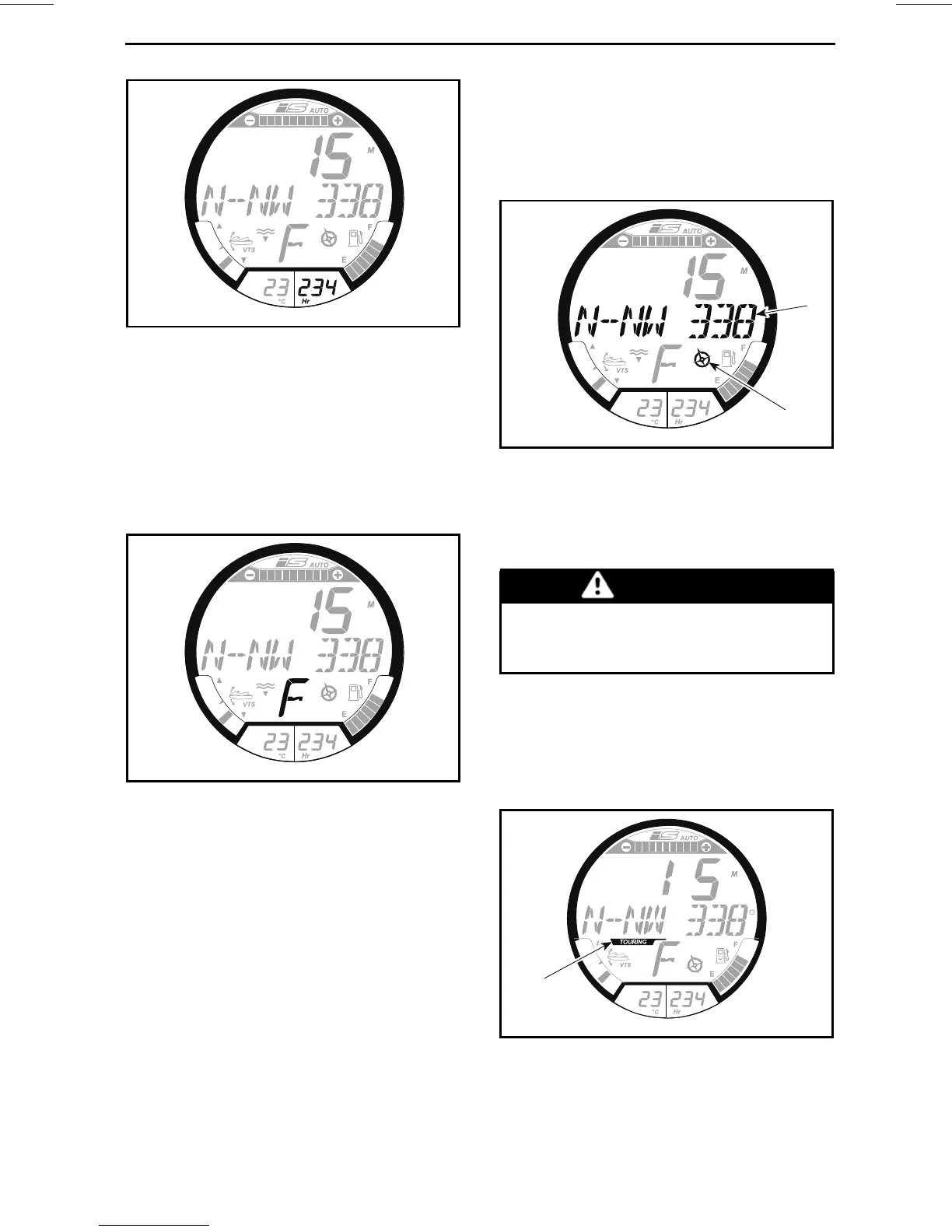

MULTIFUNCTION GAUGE
smo2009-002-114_s
HOUR METER DISPLAY
13) iBR Position
Provides an indication of the iBR gate
position.
– N (neutral)
–F(forward)
– R (reverse).
smo2009-002-114_u
IBR POSITION INDICATOR
14) Compass
A GPS incorporated in the information
center provides the indication in the
multifunction display.
The cardinal points, intermediate car-
dinal points, as well as the azimuth the
watercraft is travelling are displayed
in the multifunction display by default
when the watercraft is moving.
For a compass indication to be dis-
played, the GPS must have a good lin
k
with the navigation satellites.
All Models Except GTX 155
This is confirmed when the COMPASS
active indicator is visible in the digital
screen.
2
1
smo2009-002-114_v
TYPICAL
1. Compass indication
2. Compass active indicator
NOTE: The compass indication is only
available above 5 km/h (3 MPH).
WARNING
Use the compass as a guide only.
Nottobeusedforprecisionnavi-
gation purposes.
15) Touring Mode Indicator
When the TOURING mode indicator is
ON, the default TOURING mode is ac-
tive.
1
smo2010-002-100_a
1. TOURING mode indicator on
For more information on the touring
mode, refer to
OPERATING MODES
subsection.
