EQUIPMENT

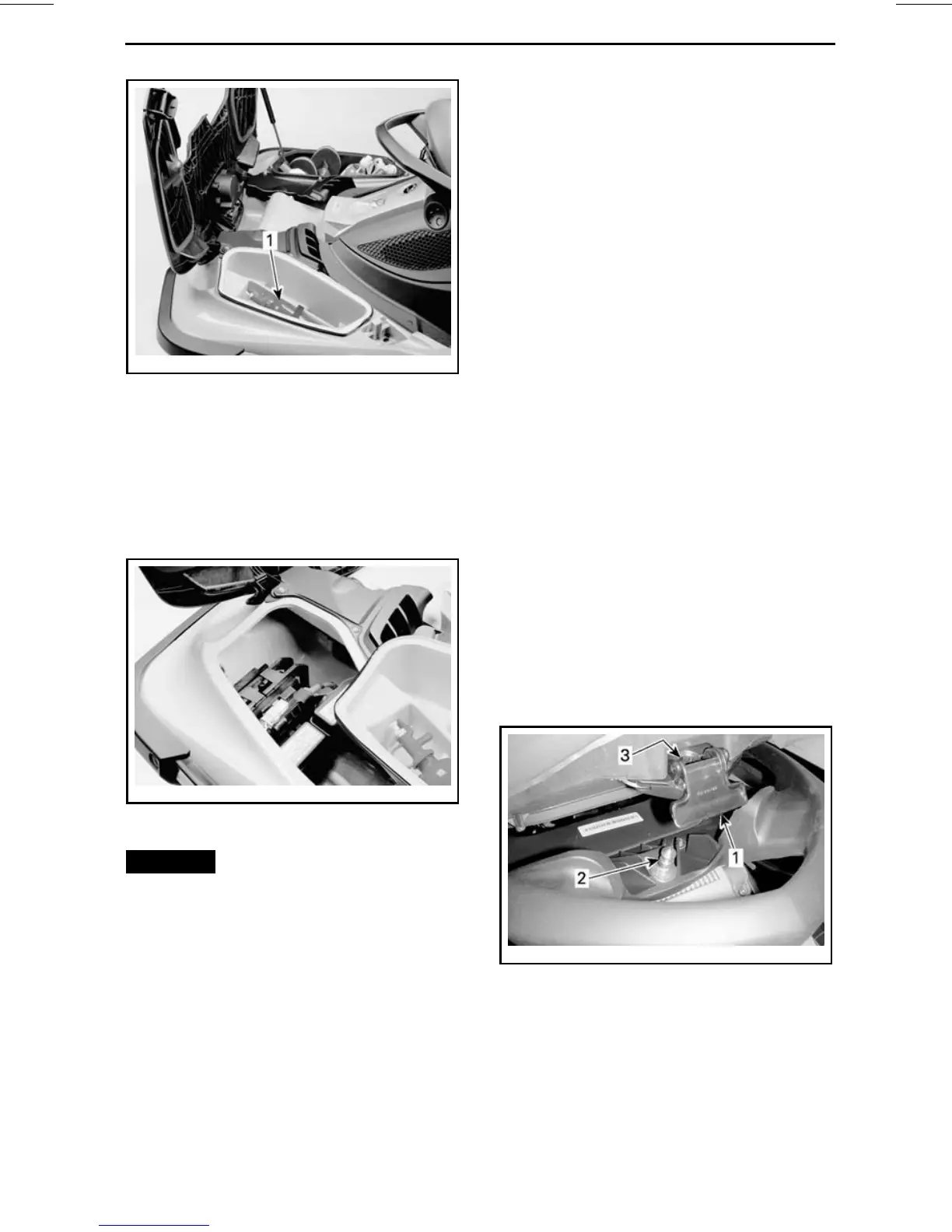

smo2009-002-127_a
1. Fire extinguisher holder location
The RH storage bin can be removed for
servicing the watercraft.
To remove storage bin, pull off the two
plastic rivets within the bin (fore and
aft) then lift the storage bin out of the
fixed deck.
smo2009-002-128
BATTERY AND FUSE ACCESS - RH
STORAGE BIN REMOVED
NOTICE
Never operate the water-
craft without both rear storage bins
installed. Always ensure the rear
boarding platform is properly closed
and latched over the storage bins.
If
not properly latch, water rushing
over the platform during extreme
maneuvers may open the platform
and dislodge the RH storage bin.
Should this happen, water will en-
terthebilgeandmayleadt
o engine
damages or electrical problems.
4) Fire Extinguisher
Holder
RXT-iS, GTX iS and GTX Limited iS
Use the support inside the RH storage
bin under the rear boarding platform,
and secure the extinguisher using the
rubber tie-down.
Refer to
REAR STORAGE BINS
for il-
lustration.
NOTE: Fire extinguisher is sold sepa-
rately.
Other Models
The fire extinguisher support is located
in the front storage bin.
5) Seat
Opening the seat provides access to
the engine compartment.
The seat latch is located at the back
end of the seat. The forward end of
the seat is mounted on a hinge.
To open the seat, pull up on the latch
handle and lift the seat fully open. A
cylinderatthefrontoftheseatserves
to hold the seat in the fully open posi-
tion.
smo2009-002-129_a
TYPICAL - SEAT LATCH
1. Seat latch handle
2. Latch pin
3. Pin insertion hole
To latch seat, close the seat and firmly
push down on the rear portion of the
seat.
_______________
73
