MULTIFUNCTION GAUGE
– ALTITUDE (GTX LTD iS)
– TOP SPEED (RXT-X)
– AVG SPEED (RXT-X)
– TOP RPM (RXT-X)
– AVG RPM (RXT-X)
–CLOCK.
NOTE: The DEPTH selection is only
available if a depth sounder is installed.
smo2009-002-114_q

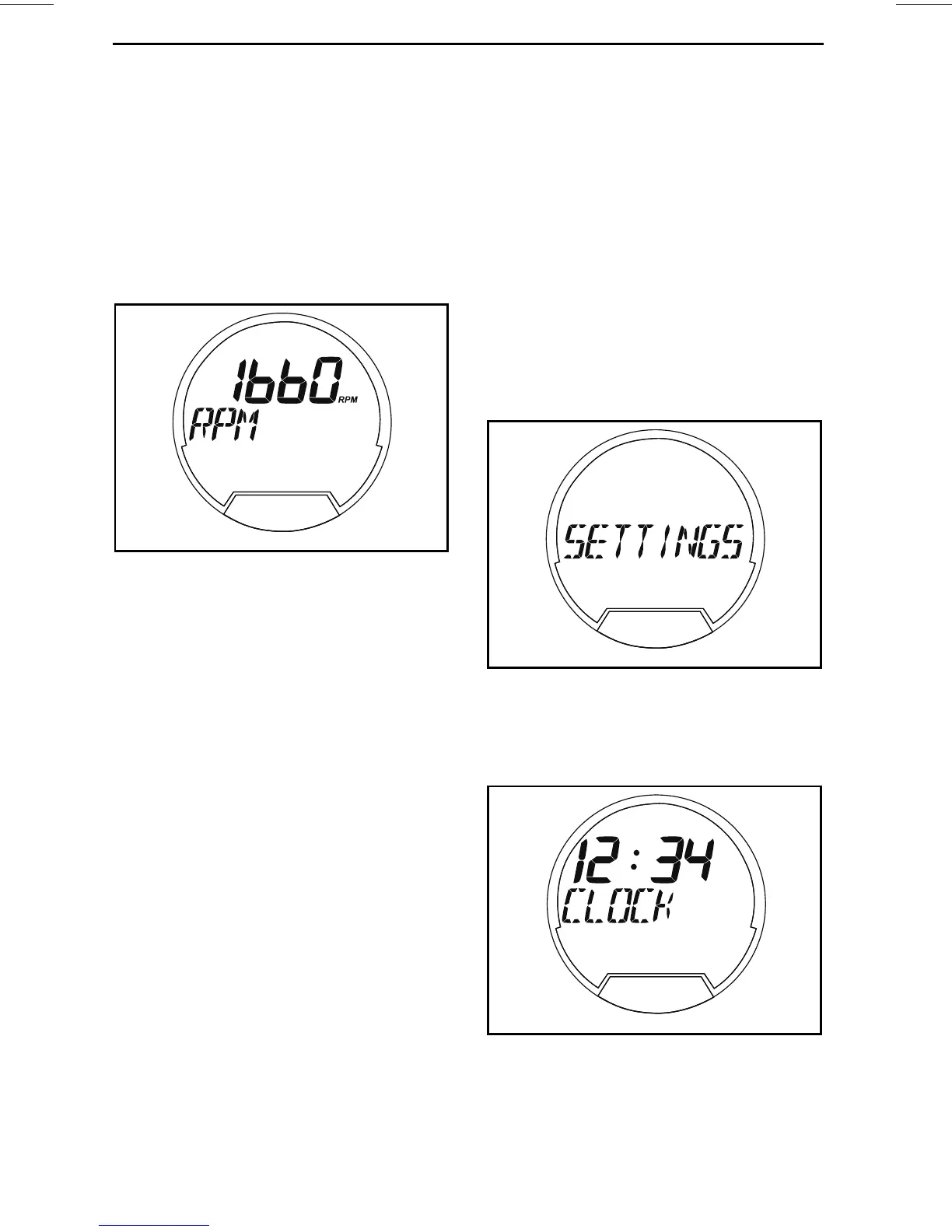

TYPICAL - NUMERICAL DISPLAY SELECTED -
RPM
4. Press the SET button to select and
save the preferred indication, or
wait for the display function to time
out. The last indication visible will
be automatically saved.
The following abbreviationsare used in
the numerical display:
–FTorM
–RPM
– MPH or Km/h
–°For°C
–AMorPM
– Gal/h or l/h.
Resetting Numerical
Display Indication
The following numerical display indica-
tions can be reset:
– Average fuel consumption
–Topspeed
– Average speed
–TopRPM
–AverageRPM.
To reset indications, double click the
SET button. The numerical display will
momentarily indicate zero (0).
NOTE: Each of these functions be-
come active ONLY when selected as
the numerical display indication.
Multifunction Gauge
Setup
Changing Clock Setting
1. Press the MODE button repeatedly
until SETTINGS is visible in the mul-
tifunction display.
smo2009-002-114_y
FUNCTION SELECTED - SETTINGS
2. Press the UP or DOWN arrow but-
ton repeatedly until CLOCK is visi-
ble.
AM
smo2010-002-107
FUNCTION SELECTED - CLOCK
3. Press the SET button to enter t
he
function. CHANGE CLOCK OFF-
SET message will be displayed.
68
