SeaSTAR OPTIMUM EPS - Page 100

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
8-2

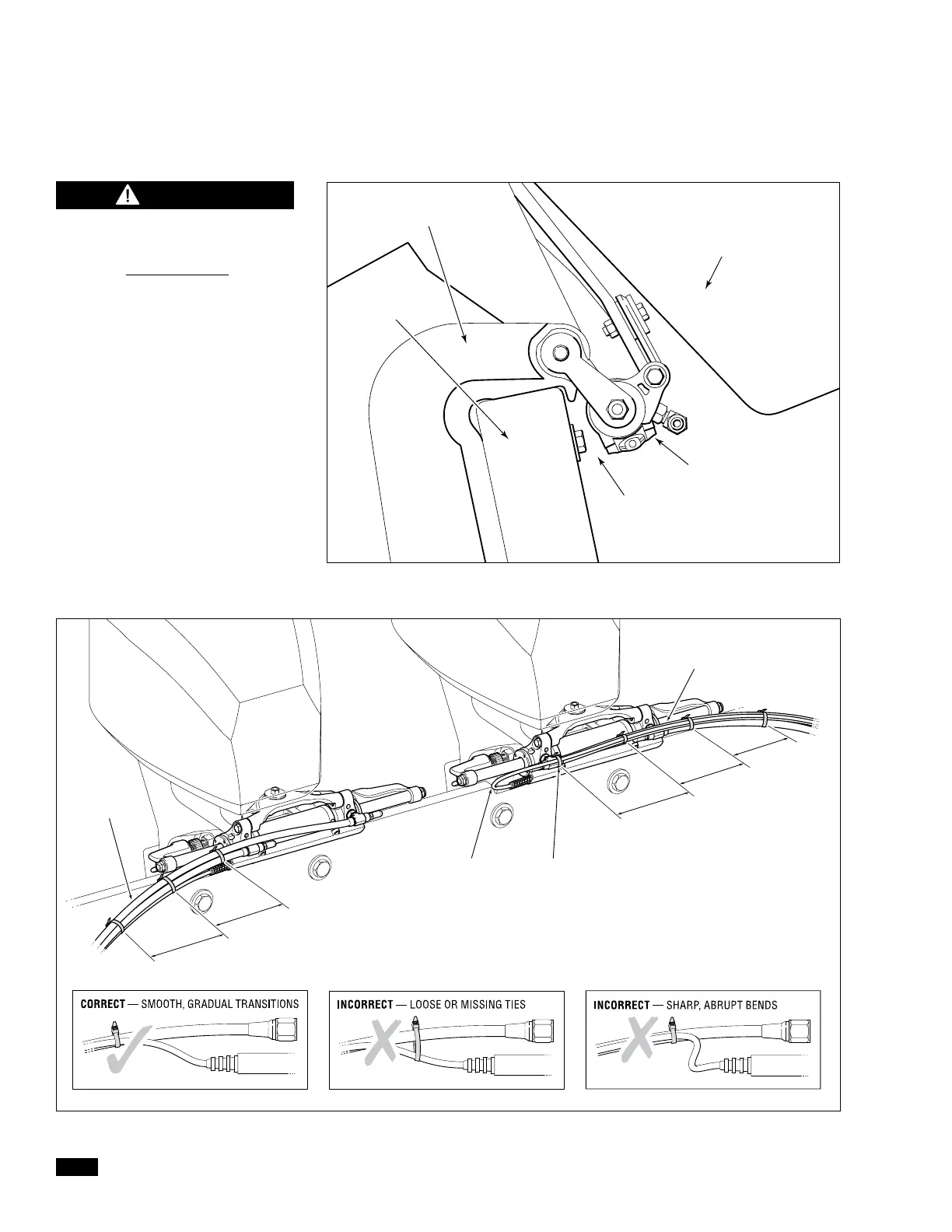

Figure 8-2. Sensor cable and hose routing checks.
6"
MAX
6"
MAX
6"
MAX
6"
MAX
6"
MAX
TIE SECURED
TO FITTING
SMOOTH BEND
(NO KINKING)
PORT EXIT CABLE
(ALTERNATE METHOD)
STARBOARD
EXIT CABLE
(PREFERRED
METHOD)
IF ANY ISSUES ARE FOUND
DURING THE INSTALLATION
CHECKS, IMMEDIATELY RETURN
THE BOAT TO THE SERVICE
DEALER FOR THOSE ISSUES
TO BE REMEDIED.
WARNING
ENGINE
ENGINE MOUNTING
BRACKET
SMART CYLINDER
CHECK FOR CLEARANCE TO BOTTOM SIDE
OF SMART CYLINDER WITH ENGINE FULLY
TILTED THROUGHOUT STEERNG RANGE
TRANSOM
Figure 8-1. Engine side view when tilted.
