6.3.2 PCM Wiring Strain Relief
CAN1 CAN1 CAN3 CAN2
FAILURE TO SECURE HARNESS, AS SHOWN, MAY RESULT IN
HARNESS WEAR, CAUSING LOSS OF STEERING CONTROL,
PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH.
• Whenallconnectionsaremade,strainrelievethewiresas
shown below. Be sure to properly strain relieve the wires at the
power source as well.
• Allunusedportsmusthavesealingcaps.
ALL UNUSED CONNECTORS REQUIRE SEALING PLUGS. THEY
WILL LIKELY BE REQUIRED ON PCM AND THE HELM.

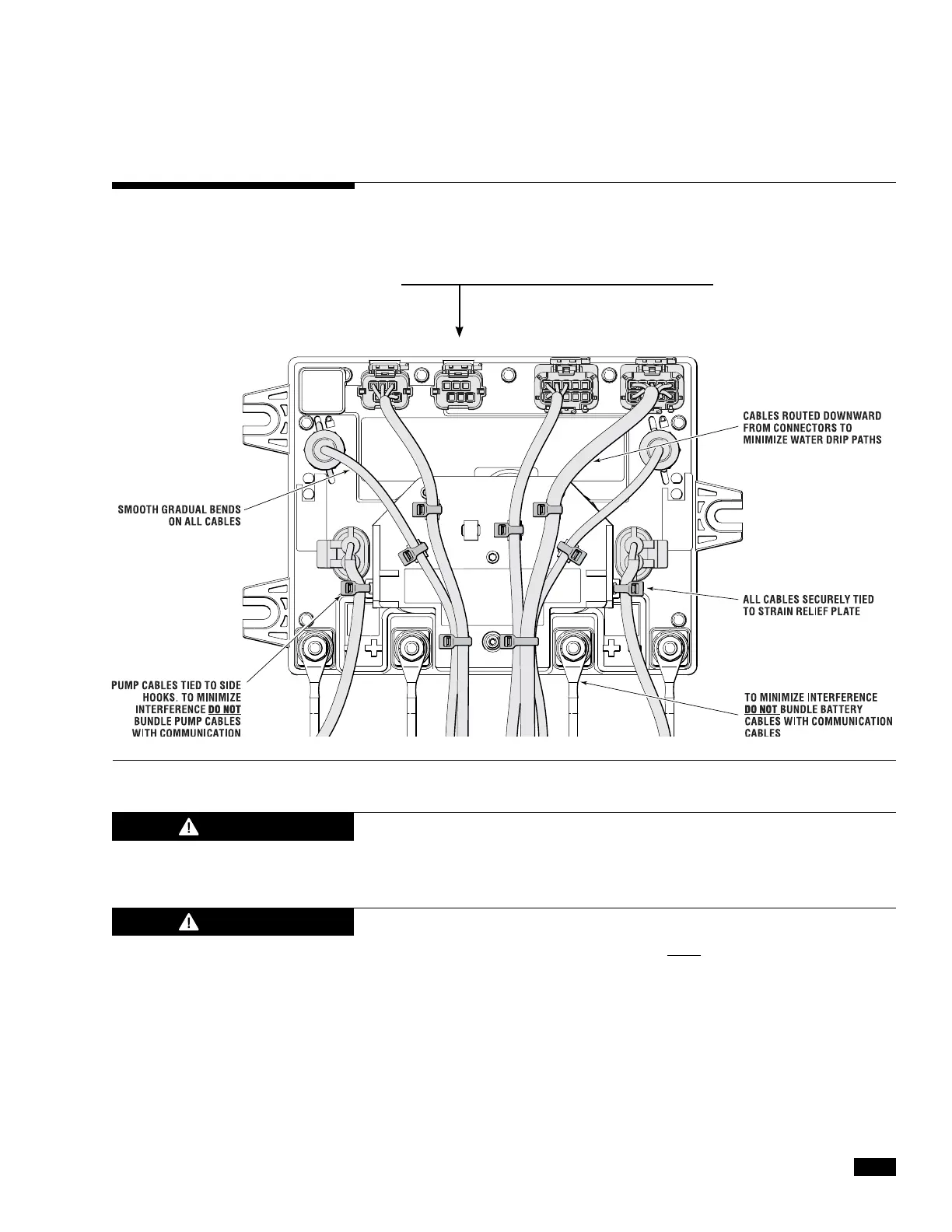

Figure 6-10.
