SeaSTAR OPTIMUM EPS - Power Steering Pump; Power Steering Pump Mounting Dimensions

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
A-12
10.5"
(267 mm)
7.9 "
(200 mm)
8.6"
(218 mm)
8 X .28 DIA.
MOUNTING HOLES
(ONLY FOUR FASTENERS
REQUIRED)
3 x 1.1"
(28 mm)

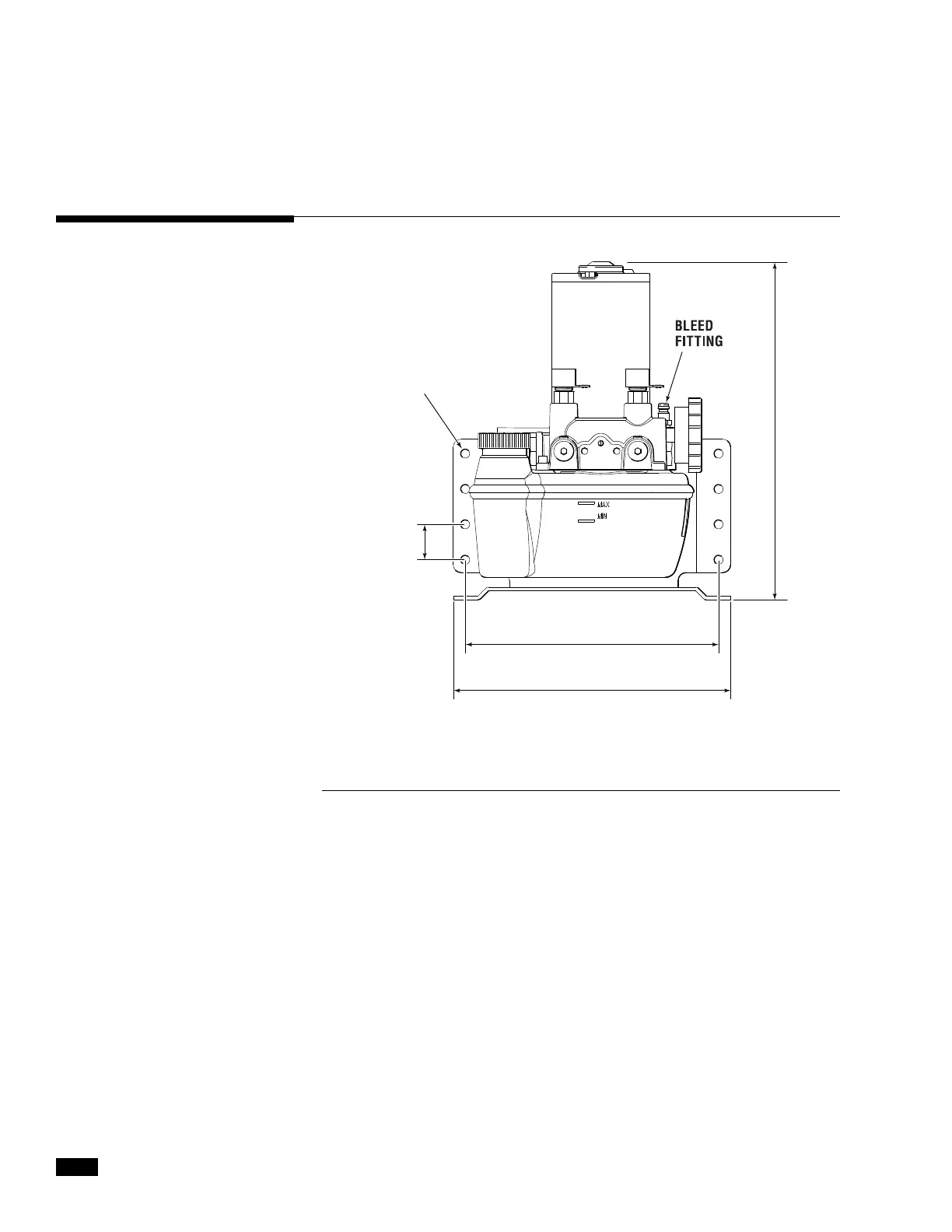

A.4.1 Power Steering Pump Mounting Dimensions
A.4 Power Steering Pump
Figure A-7.
