APPENDIX D USING THE COLOR CANtrak
DISPLAY
The color CANtrak display is used to display system status and fault
information. It is also a powerful tool that can be used to set up
the Optimus EPS system, purge and calibrate the SmartCylinders,
adjust steering parameters, and perform software updates.
D.1 Display Navigation
The five buttons at the bottom of the unit are used to select various
actions. The five boxes at the bottom of the display screen will indicate
the legend for each button. These legends vary based on what is on
the screen.

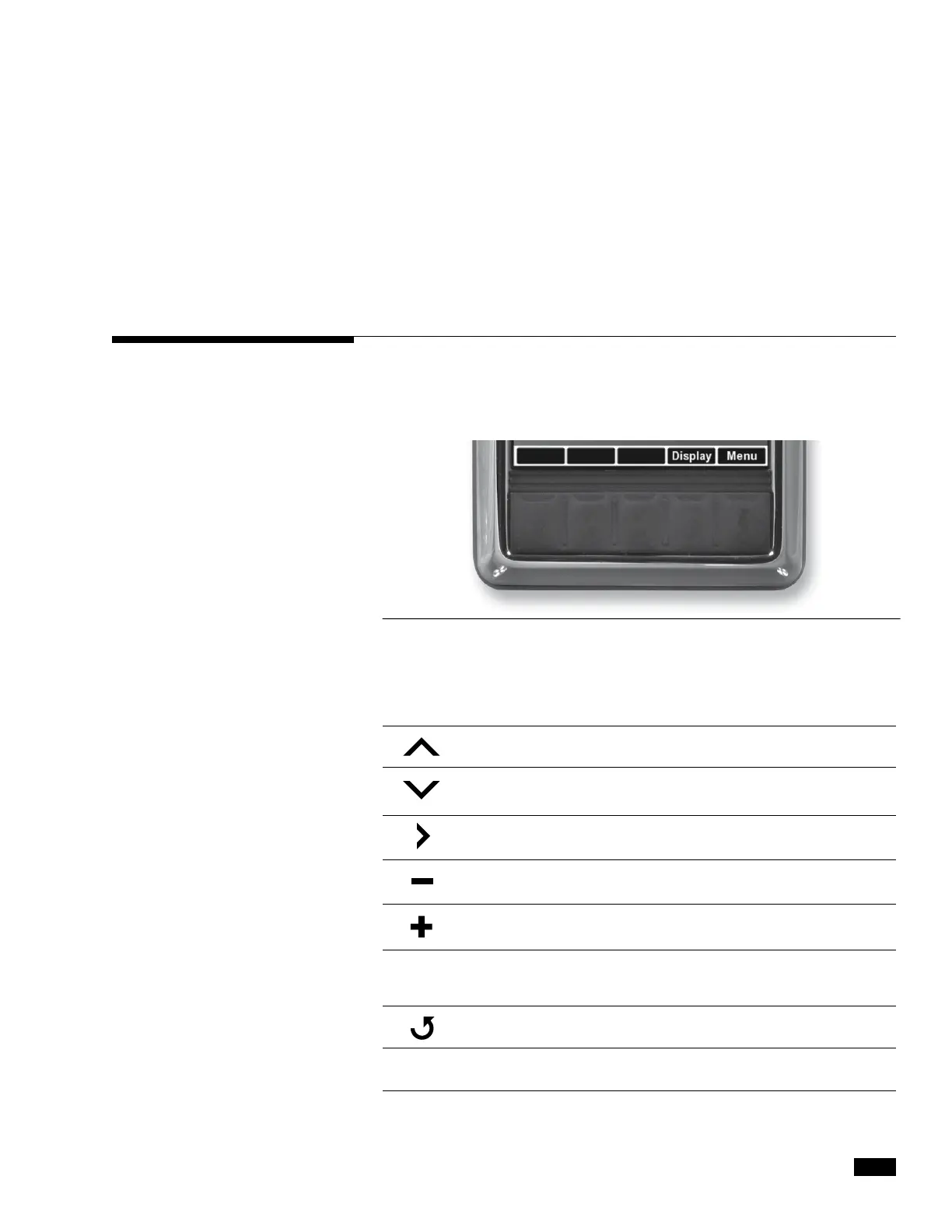

Figure D-1. Navigation buttons and legend.
WORD
OR SYMBOL IDENTIFIES A FUNCTION OR SETTING
Moves the cursor up the screen to the next item.
Moves the cursor down the screen to the next item.
Enters the sub-menu at the cursor location.
Reduces the setting of the selected item.
Increases the setting of the selected item.
Accepts a given statement or condition and advances
to the next screen.
Returns to previous menu.
Saves change and returns to previous menu.
OK
Save
To Next Page
