SeaSTAR OPTIMUM EPS - CAN Bus Connectors

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
B-2
Note regarding connectivity of tee connectors:
•
When connecting a tee connector to a component always install via the
middle connection (“NODE”).
•
When connecting a tee connector to a CAN Bus harness to connect
components that are far from each other, always install via the male/
female end of the connector (whichever applies).
•
Hand-tighten after the connection is made. DO NOT tightly tie down the
tee connectors, as this will create stress.

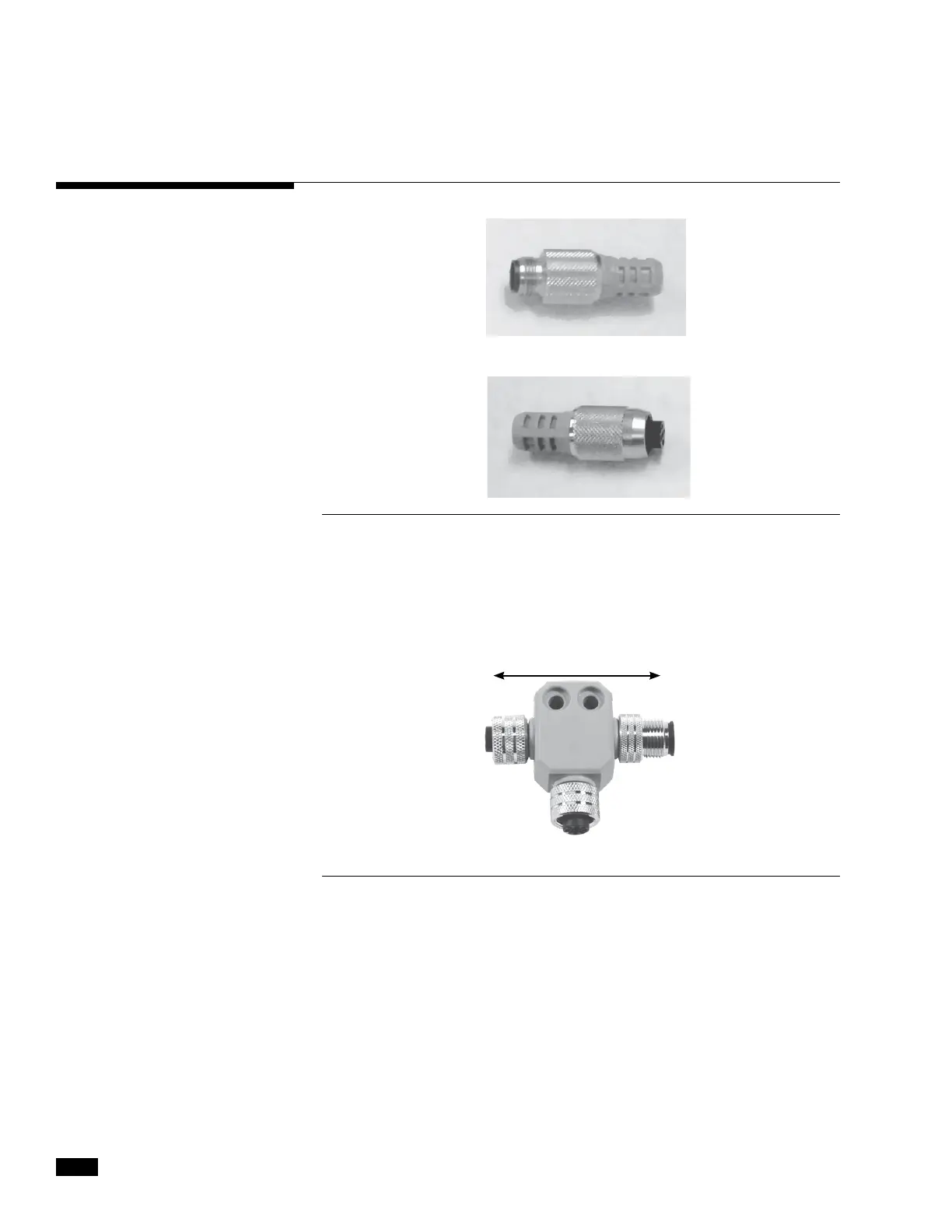

CM10051: MALE TERMINATOR
CM10052: FEMALE TERMINATOR
Tee Connectors:
Supplied by several vendors. Appearance may vary - parts are
interchangeable.
BACKBONE
MALE FEMALE
NODE IS ALWAYS FEMALE
B.1.1 CAN Bus Connectors
Figure B-2.
Figure B-3. CM10060: Single tee connector.
