SeaSTAR OPTIMUM EPS - Power Steering Pump Mounting Considerations

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-9
• Pumpsshouldbemountedinacool,dry,wellventilatedlocation.
• Pumpharnessesare3’longandmustNOTbeextended.Choose
pump and PCM mounting locations accordingly.
• Pumpscanbewalloroormounted.SeeAppendixAfor
mounting dimensions.
• Pumpsmustbemountedsothattheoillevelindicatorsandthe
well are not only visible, but available to the operator.
• Theservicevalveknobmustbeeasilyaccessible.Ensurethereis
room around the knob for a user to grasp it and turn it.
• Pumpportsarecolorcodedformthefactorytoindicatethe
appropriate cylinder fitting connection.
• Pumpportsandcorrespondingcylinderportsarealsomarked
with “U” and “D.”
5.3.3 Power Steering Pump Mounting Considerations
THE PUMP MOTOR MAY BE HOT TO THE TOUCH DURING OPERATION.
DO NOT MOUNT PUMPS IN AN AREA WHERE FABRICS AND/OR
OTHER FLAMMABLE MATERIAL MAY COME IN CONTACT WITH
THE PUMP MOTOR. DO NOT COVER.

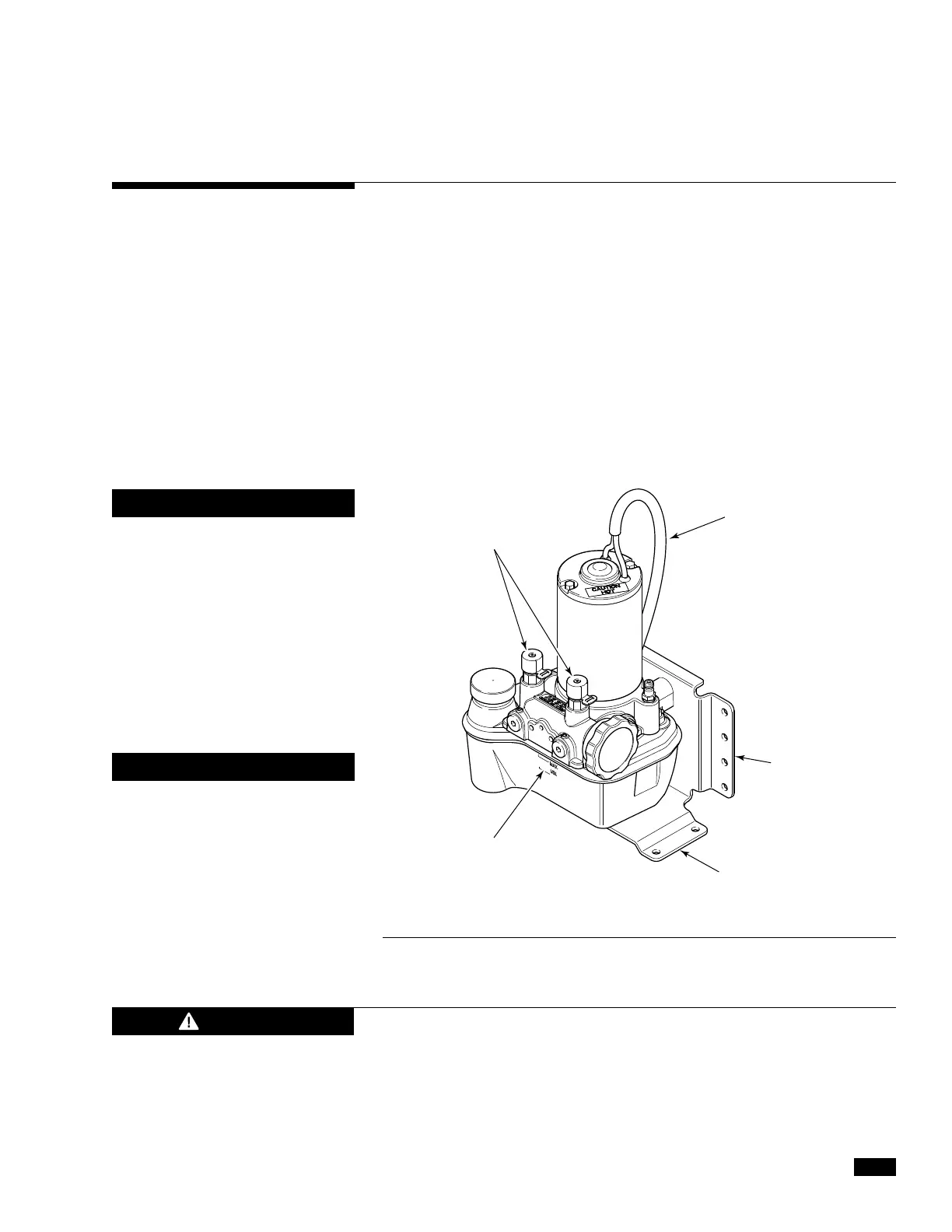

Figure 5-9.
WARNING
OIL LEVEL MARKS
WALL MOUNTING
BRACKET
FLOOR MOUNTING
BRACKET
COLOR CODED AND
LAB ELED PORTS TO
MATCH CYLINDER
PORTS
POWER HARNESS
TO PCM (MUST NOT
BE EXTENDED)
Hose fittings can be relocated to
plugged ports if required. (See
figure 4-9, item 1 and 2.) Torque
hose fittings to 18 ft-lb (24 Nm)
and plugs to 50 in-lb (6 Nm).
You can also install 90° fittings
(Kit # HF6004) for additional hose
routing flexibility.
NOTICE
Due to material variability, fitting
installation torque differs between
the power steering pump and the
steering cylinder. Be sure to use
the correct installation torque to
avoid irreparable damage to the
pump housing or cylinder body
when installing an ORB fitting.
NOTICE
