SeaSTAR OPTIMUM EPS - Page 52

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
5-10

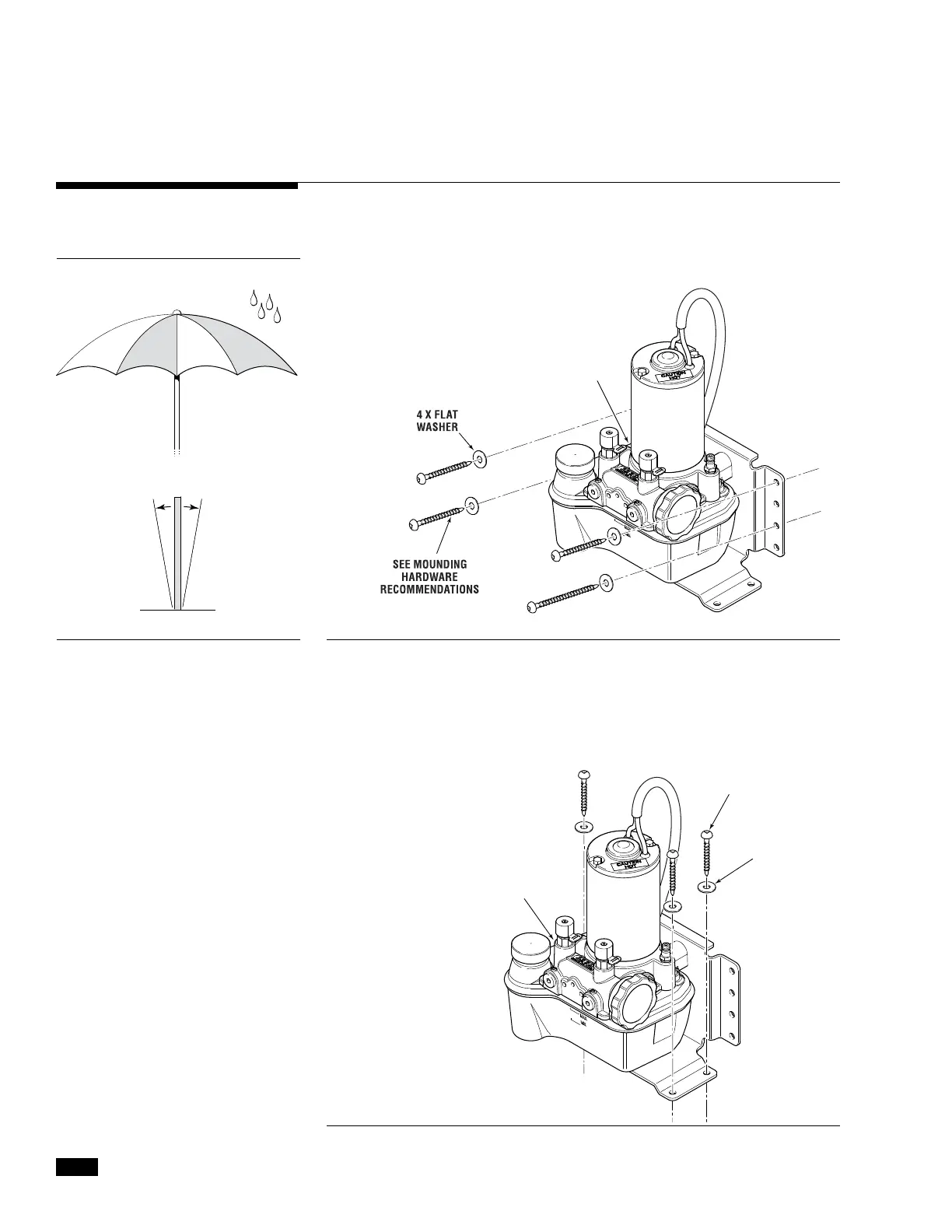

POWER STEERING PUMP
Note: if wall-mounting the power steering pump:
• Pumpsmustbemounteduprighttofacilitateoilllandpurge.
• Ifmountingtoanangledwall,useshims
to mount the pump upright. If you are
mounting to a 12° transom, use
wedge kit HA5485.
SEE MOUNDING HARDWARE
RECOMMENDATIONS
3 X FLAT
WASHER
POWER
STEERING
PUMP
Figure 5-12.
Figure 5-11.
Note: if floor-mounting the power steering pump:
• Pumpsmustbemounted
upright to facilitate oil fill
and purge.
Figure 5-10.
DO
Protect from
elements
5°
Mount at
vertical
angle of less
than 5°
