SeaSTAR OPTIMUM EPS - Integrated Steering Service Valve; Power Steering Pump Mounting Hardware

To Next Page

To Previous Page

5-11

The power steering pump has an integrated service valve for

maintenance and emergency use. It must be accessible to the

operator. If it isn’t accessible, you will need to use the remote-

mount service valve kit, HA5480.

There is an instruction label on the pump motor. If it is not visible,

you must install the label shown in ﬁgure 5-13 in a visible location.

Recommended Mounting Hardware:

• M6capormachinescrewandwasher

• 1/4”capormachinescrewandwasher

• #14woodscrewandwasher(atbearingsurfaceunderscrew

head only)

5.3.4 Integrated Steering Service Valve

5.3.5 Power Steering Pump Mounting Hardware

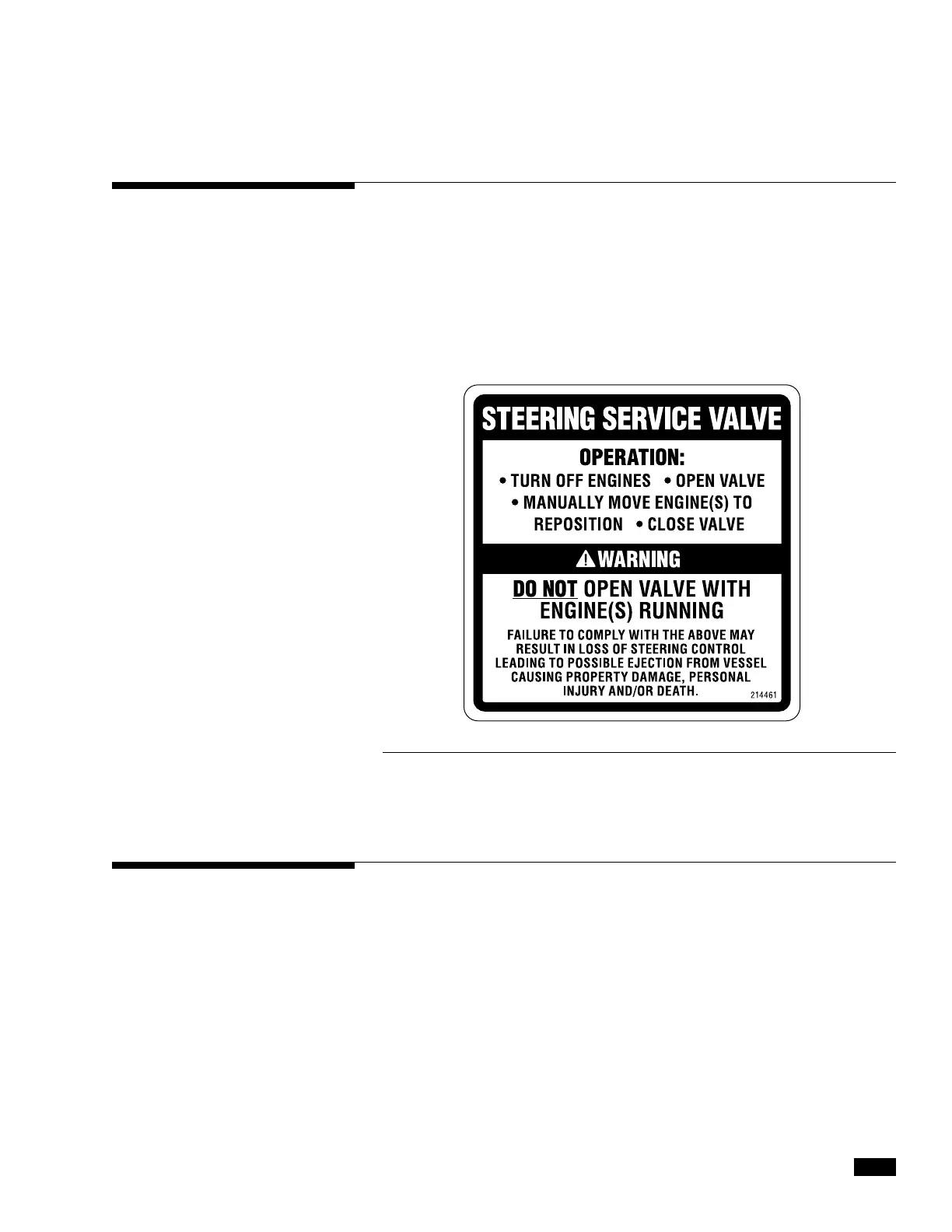

Figure 5-13.

This decal MUST be visible!
