8.2 Pre-trip Checks
1. Check steering fluid level in all steering pumps.
Each Optimus hydraulic pump has a steering fluid reservoir.
Ensure the fluid level is between the MIN and MAX marks on
the reservoir as shown in the figure below. Use only SeaStar
Electronic Power Steering Fluid in the Optimus EPS System.
FAILURE TO ADHERE TO THESE WARNINGS MAY RESULT IN LOSS
OF BOAT CONTROL, LEADING TO POSSIBLE EJECTION FROM VESSEL;
CAUSING PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH.
2.
Verify immediate steering response when turning steering wheel(s).
Turn on the ignition and then slowly turn the steering wheel to
port and to starboard and make sure the engines follow the
commands. Watch that the hoses and harness move freely
without any snags or hang-ups.
3. Inspect all steering hoses, fittings, mechanical cables, and
electrical harness for wear, kinks, or leaks.
Check all steering hoses and fittings between the pump, service
valves and cylinders for any signs of leakage, kinking, wear or
chafing. Check all electrical and mechanical cabling for abrasion,
wear, rubbing or chafing. Check that all connections are tight.
4.
Check for binding, loose, worn or leaking steering or shift/throttle
control components.
Check all shift and throttle harness for signs of wear, damage or
chafing. Check that all linkages and harness move freely and are
not binding or corroded.

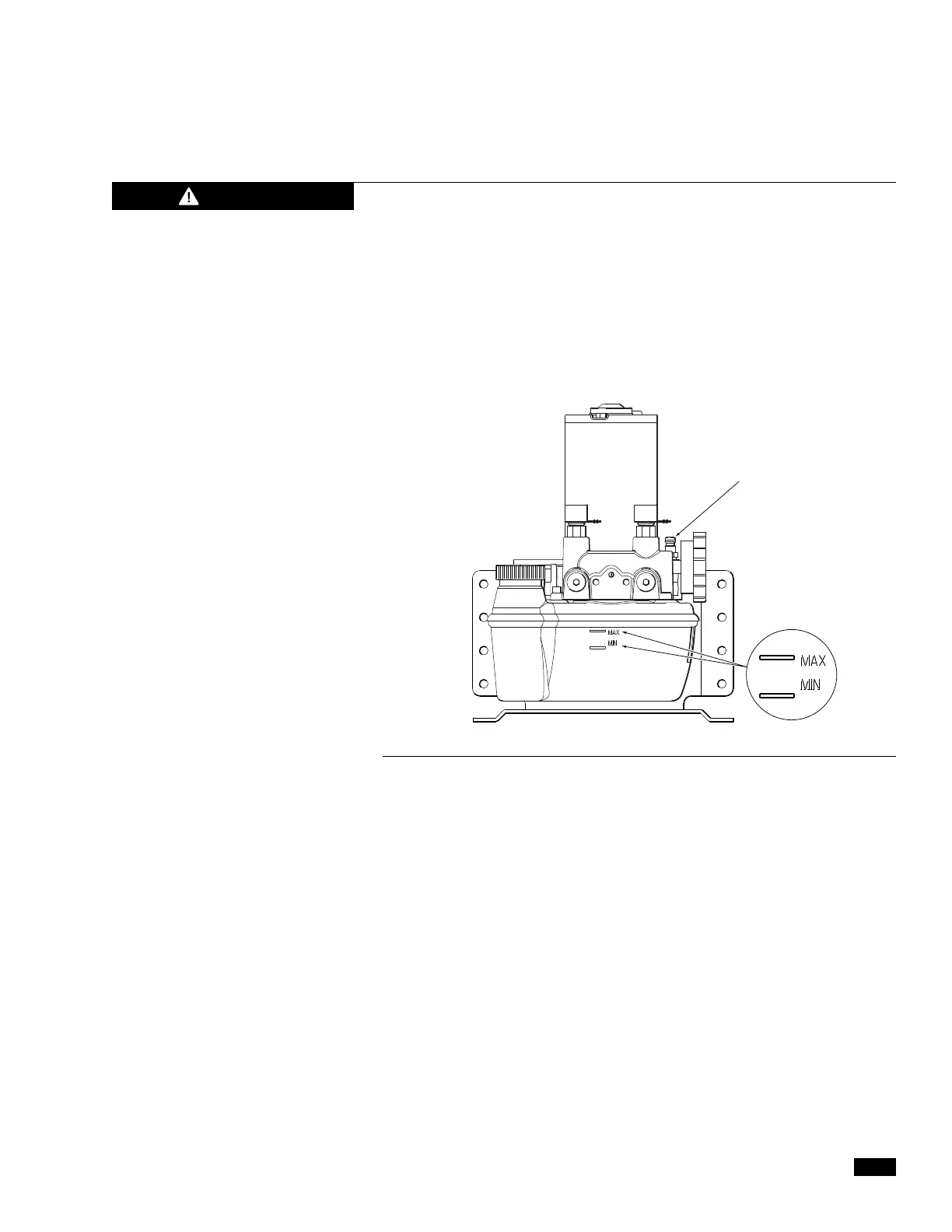

BLEEDER FITTING
Figure 8-3.
