SeaSTAR OPTIMUM EPS - Page 78

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
6-8
*Breakers are not supplied as part of the SeaStar Solutions Kit.
** Battery Switch (PCM power may be connected directly to the
battery or to the battery switch.

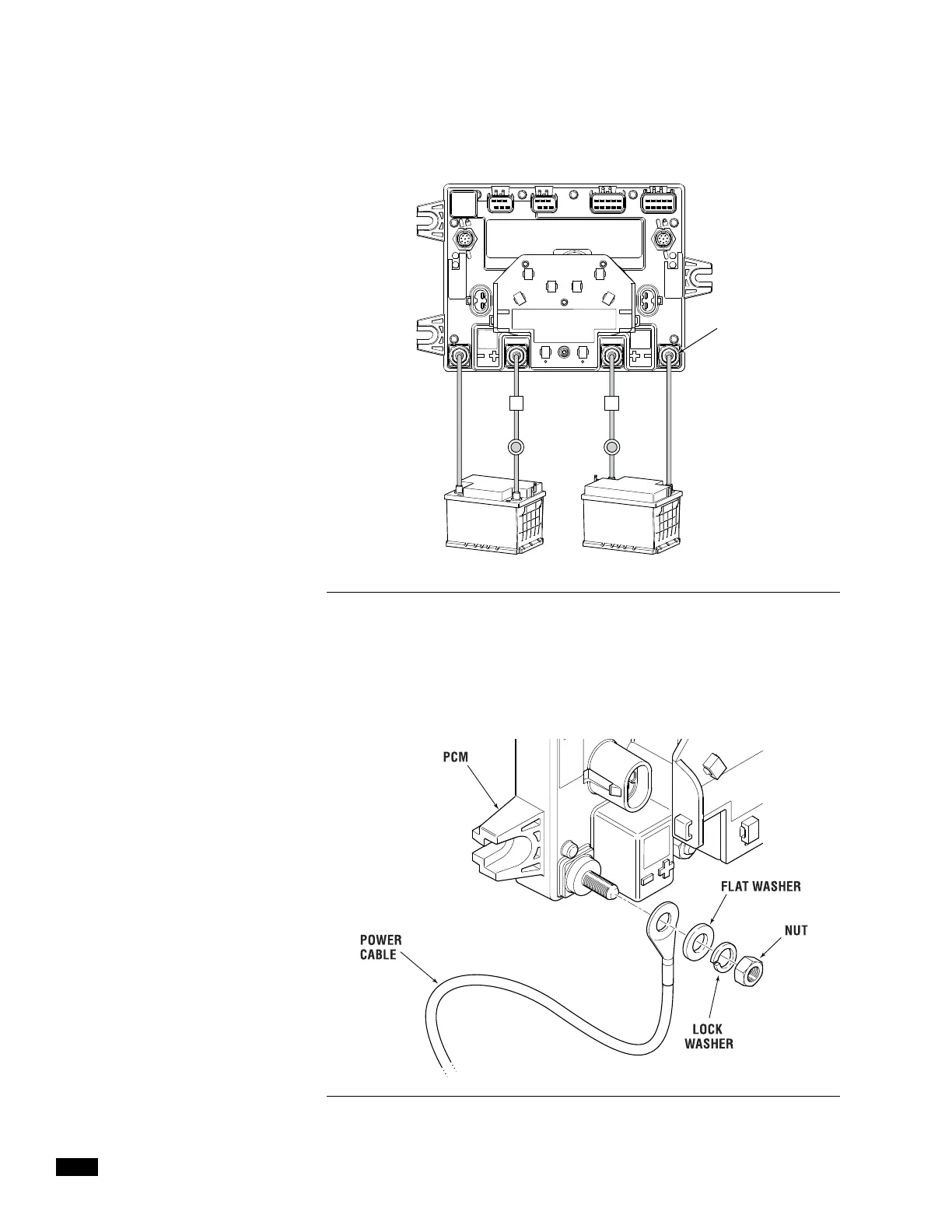

Figure 6-9.
Figure 6-8.
TORQUE PCM
BATTERY POSTS
TO 22–30 IN-LB
PCM
*60 AMP
BREAKERS
** **
PORT
POWER
SOURCE
STARBOARD
POWER
SOURCE
++– –
