© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
4-4
36' OR LESS
36' OR LESS
36' OR LESS
Two separate harnesses —
total combined length of 36' or less
Two separate harness — each 36' or less
CAN1 HARNESS – HELM TO PCM
One harness is required for single helm station, two are required
for multiple helm stations.
DESCRIPTION LENGTH PART No.
Harness, EPS, H4, 6 PIN FCI 6 FOOT CM20406
Harness, EPS, H4, 6 PIN FCI 12 FOOT CM20412
Harness, EPS, H4, 6 PIN FCI 18 FOOT CM20418
Harness, EPS, H4, 6 PIN FCI 24 FOOT CM20424
Harness, EPS, H4, 6 PIN FCI 30 FOOT CM20430
Harness, EPS, H4, 6 PIN FCI 36 FOOT CM20436

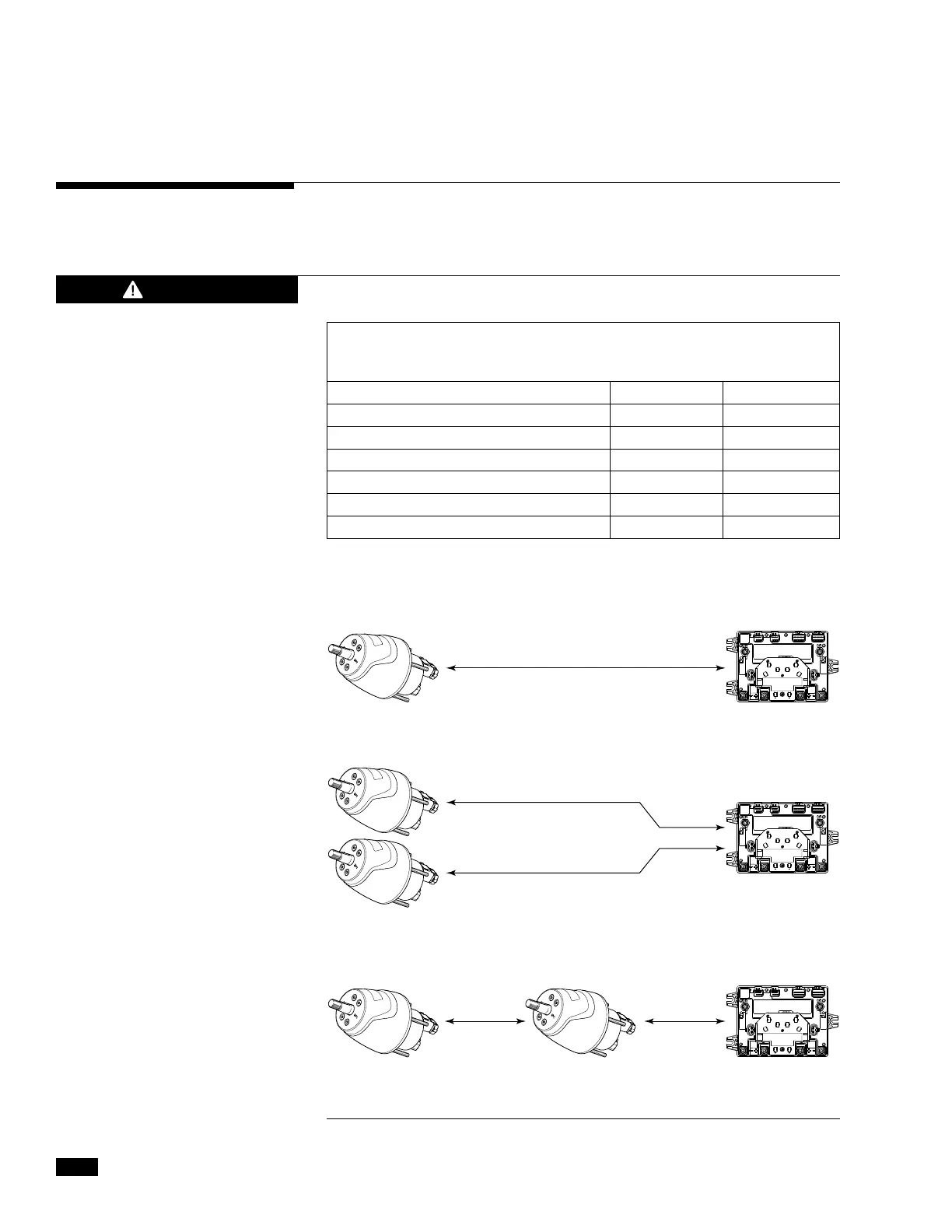

Single Helm Harness Length
Multiple Helm Harness Lengths (Optional Arrangement)
Multiple Helm Harness Lengths (Preferred Arrangement)
The harness length from the PCM to the farthest helm may not exceed
36 total feet. Harness are available in 6-foot incremental lengths to
cover various installations and CANNOT be extended.
Total harness length CANNOT exceed 36 feet.
Figure 4-3.
CAUTION
Table 4-1.
