SeaSTAR OPTIMUM EPS - Page 28

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
4-6

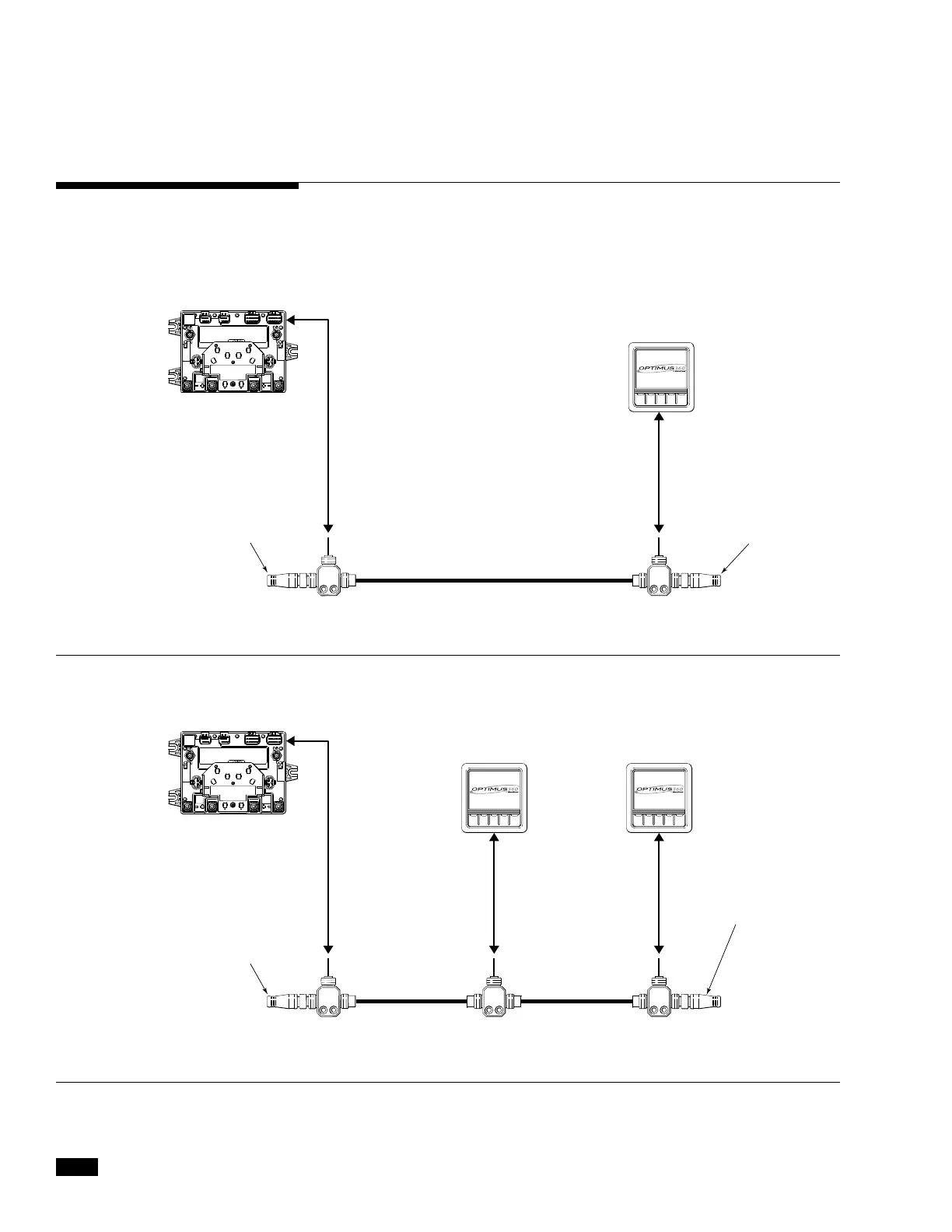

The following cabling is required to connect the CANtrak on
multi-engine installations. These connections are not used on
single-engine applications.
Single Station
Dual Station
* Note: see next page for harness information.
Figure 4-6.
Figure 4-5.
Female terminator
CM10052
CM20304
4' HARNESS
CM21504
3' HARNESS
CM21504
3' HARNESS
Male terminator
CM10051
NETWORK TEE
CM10060
NETWORK TEE
CM10060
NETWORK TEE
CM10060
DEVICENET
HARNESS*
DEVICENET
HARNESS*
Female terminator
CM10052
CM20304
4' HARNESS
CM21504
3' HARNESS
Male terminator
CM10051
NETWORK TEE
CM10060
NETWORK TEE
CM10060
DEVICENET HARNESS*
