SeaSTAR OPTIMUM EPS - Page 40

© 2014 SeaStar Solutions Optimus Installation Manual, Rev. E
4-18

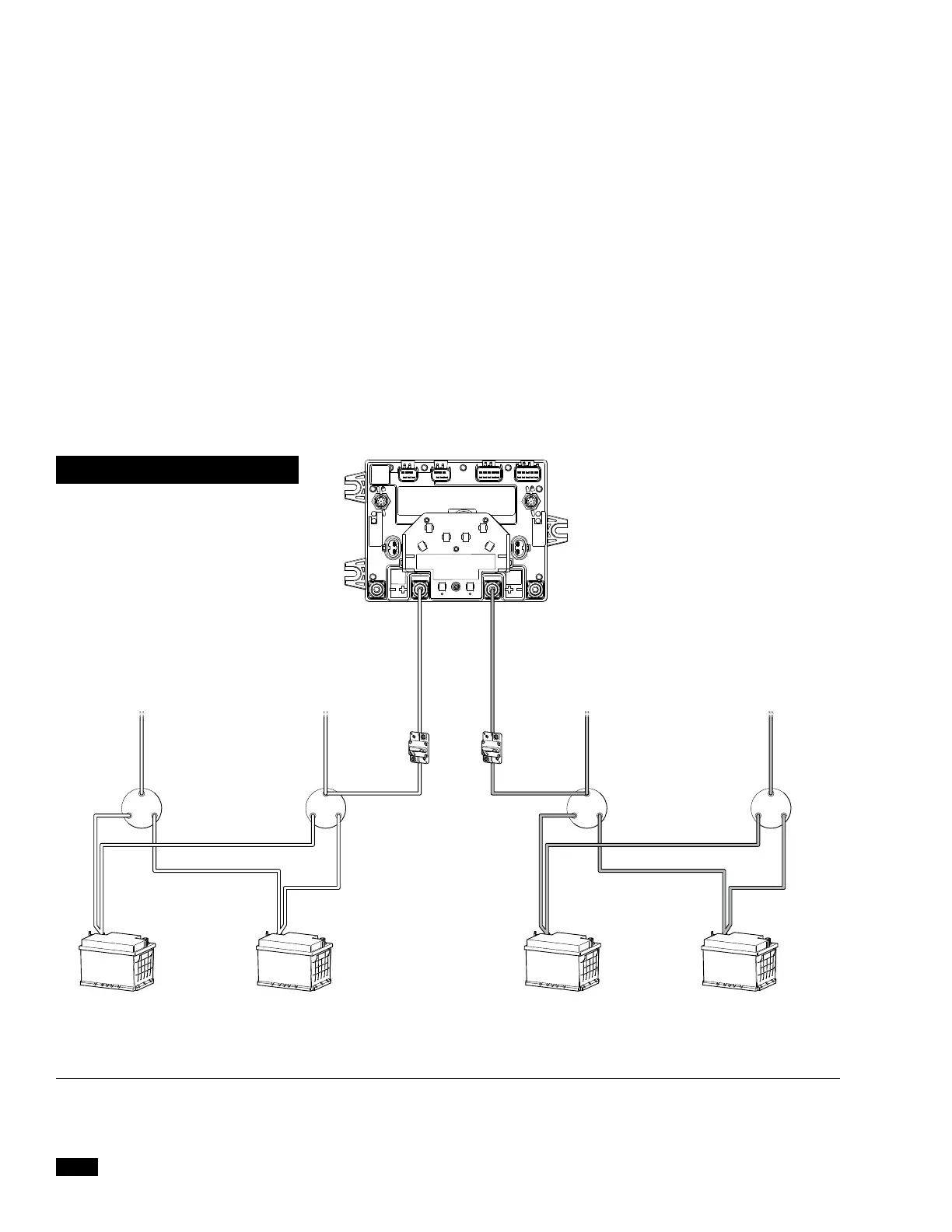

Figure 4-16. Sample quad engine connection without ACR.
Figure 4-16 shows a possible connection for a quad engine vessel,
but without ACRs. In single engine trolling this connection does not
guarantee that the PCM is connected to a charging battery, so the
battery switch for the running engine must be set to ‘Both’ (or ‘1+2’
or ‘All’ on some switches). If the engines are always trolled in pairs
(inboard pair or outboard pair) the position of the battery switches is
not important because one charging battery will always be connected
to the PCM when connected as shown.
To make your system as error-proof as possible, SeaStar recommends
the use of ACRs as shown in figure 4-15.
+–
+
–
+
–
–+
PCM
Brea k erBrea k er
STARBOARD
SIDE
PORT
SIDE
SW SW
CENTER STARBOARD
12V BATTERY
STARBOARD
12V BATTERY
CENTER STARBOARD
ENGINE
STARBOARD
ENGINE
+
–
+
–
SW SW
PORT
12V BATTERY
CENTER PORT
12V BATTERY
PORT
ENGINE
CENTER PORT
ENGINE
For clarity only positive wire
connections are shown.
NOTICE
