A SEALING PLUG MUST BE INSTALLED IN ANY UNUSED PORTS.
FAILURE TO SECURE HARNESS MAY RESULT IN HARNESS WEAR,
CAUSING LOSS OF STEERING CONTROL, PROPERTY DAMAGE,
PERSONAL INJURY AND/OR DEATH.
WARNING
WARNING

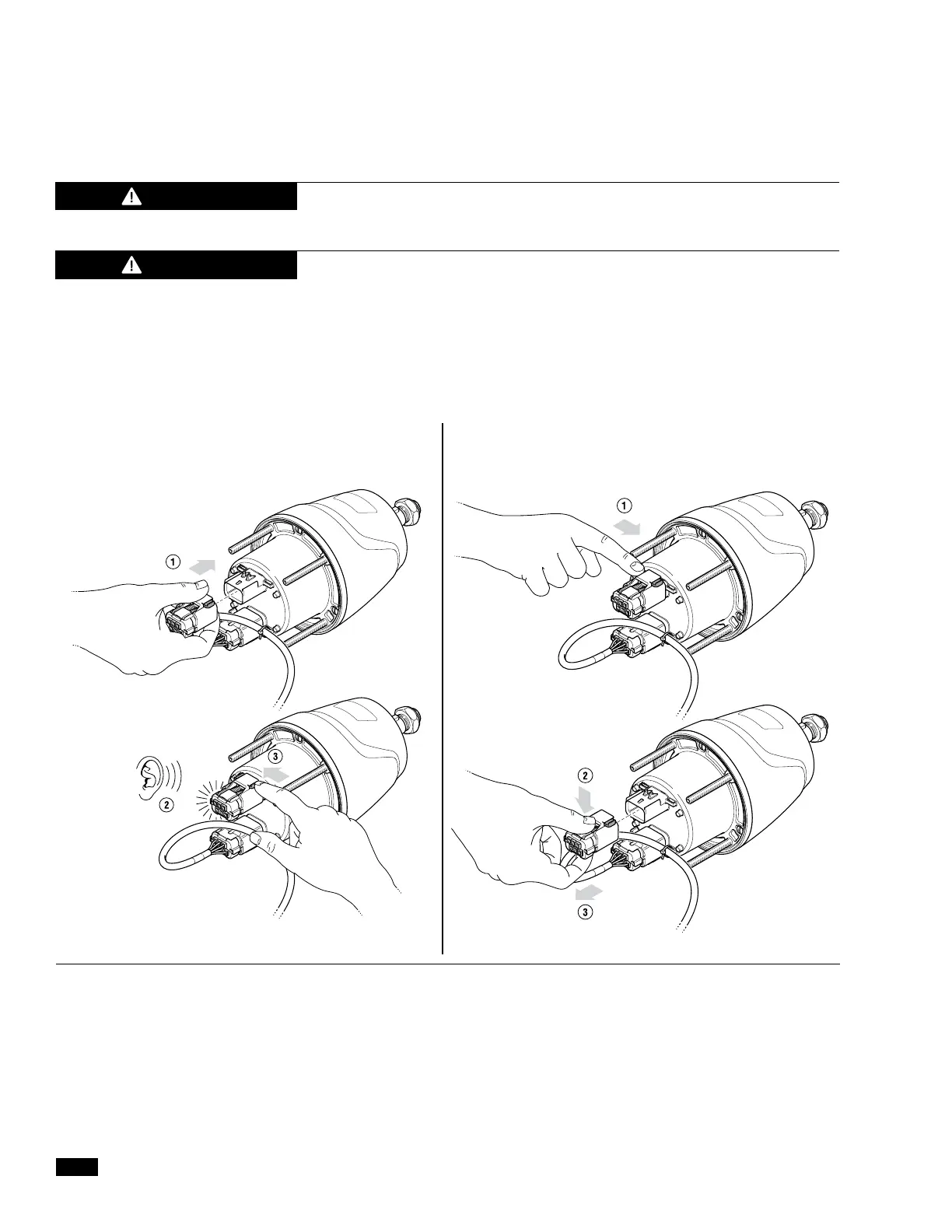

To properly install connector, push into the socket, listen for it to
click, then push the lock over, as shown below.
TO LOCK:
1. PRESS THE CONNECTOR FIRMLY ONTO THE RECEPTACLE
2. LISTEN FOR THE “CLICK” AS THE CONNECTOR LOCKS
3. PUSH TO ENGAGE THE SECONDARY LOCK
TO UNLOCK:
1. PUSH TO DISENGAGE THE SECONDARY LOCK
2. SQUEEZE TO UNLATCH THE CONNECTOR
3. PULL TO REMOVE
Figure 6-4.
