1 - 54

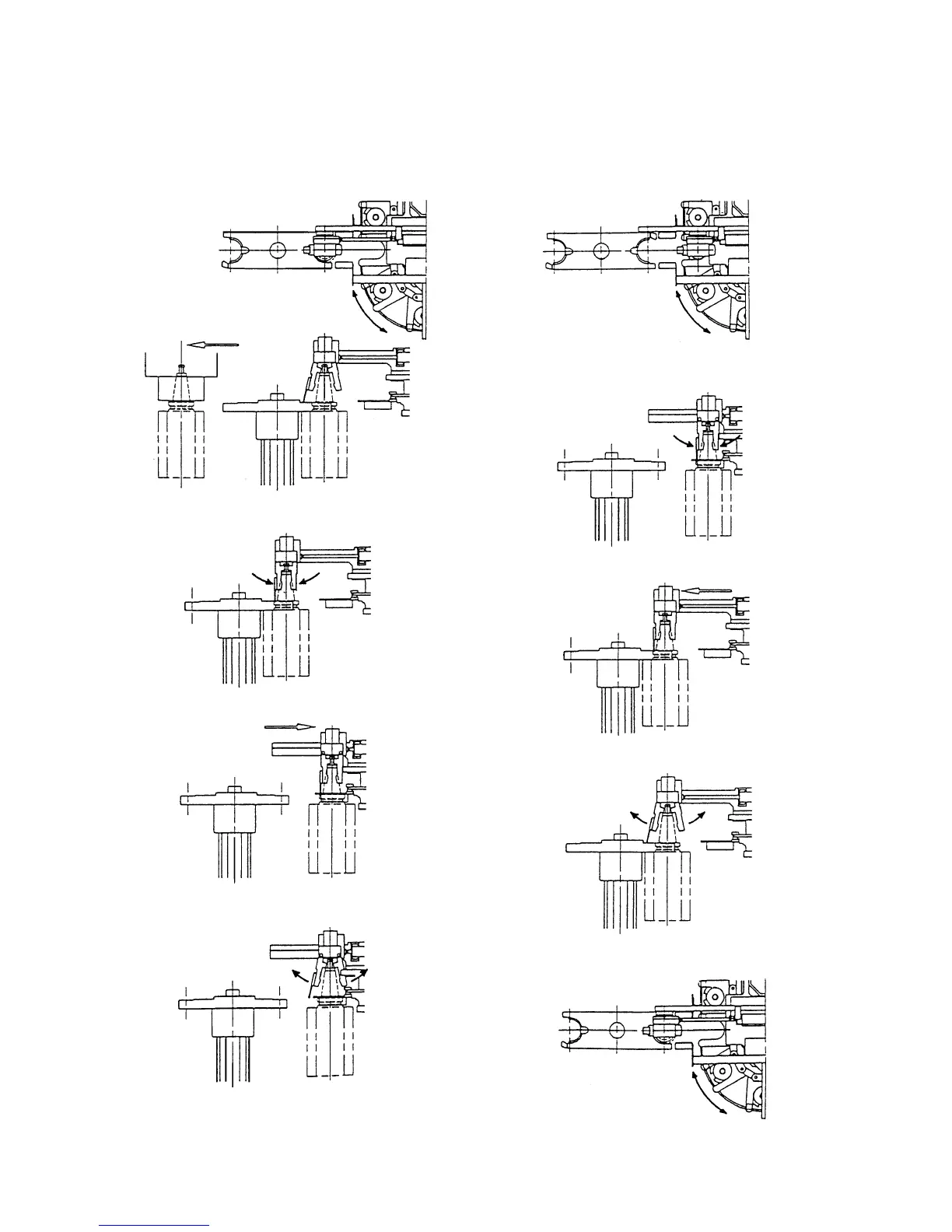

2. Call Tool to Waiting Position………….T01~T20 (T30 Option)
Note) (M1**) in the figures operates only at the maintenance mode.
1) Index magazine of waiting tool number. 5) Index magazine of T code number.
(M104)
2) Feed hand is closed (M102).
3) Move feed hand to magazine side.
4) Feed hand is open (M103).
6) Feed hand is closed (M102).
7) Move feed hand to twin arms side
(M105).
8) Feed hand is open (M103).
9) Index magazine of spindle tool number.
To Next Page
