3. Return Waiting Tool to Magazine……….T00 Action
Note) (M1**) in the figures operates only at the maintenance mode.

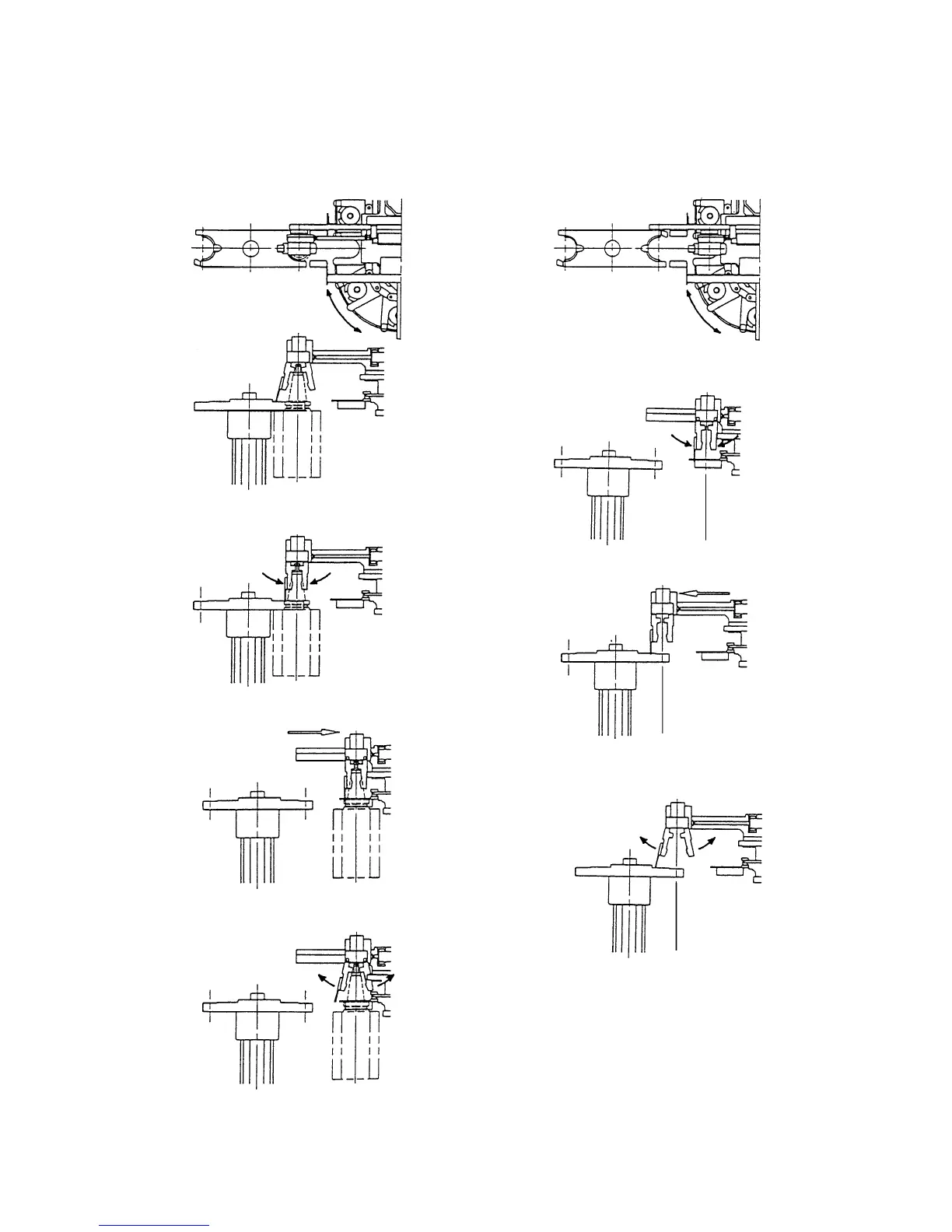

1) Index magazine of waiting tool number. 5) Index magazine of spindle tool number.
(M104)
2) Feed hand is closed (M102).
3) Move feed hand to magazine side.
4) Feed hand is open (M103).
6) Feed hand is closed (M102).
7) Move feed hand to twin arms side
(M105).
8) Feed hand is open (M103).
