1 - 86

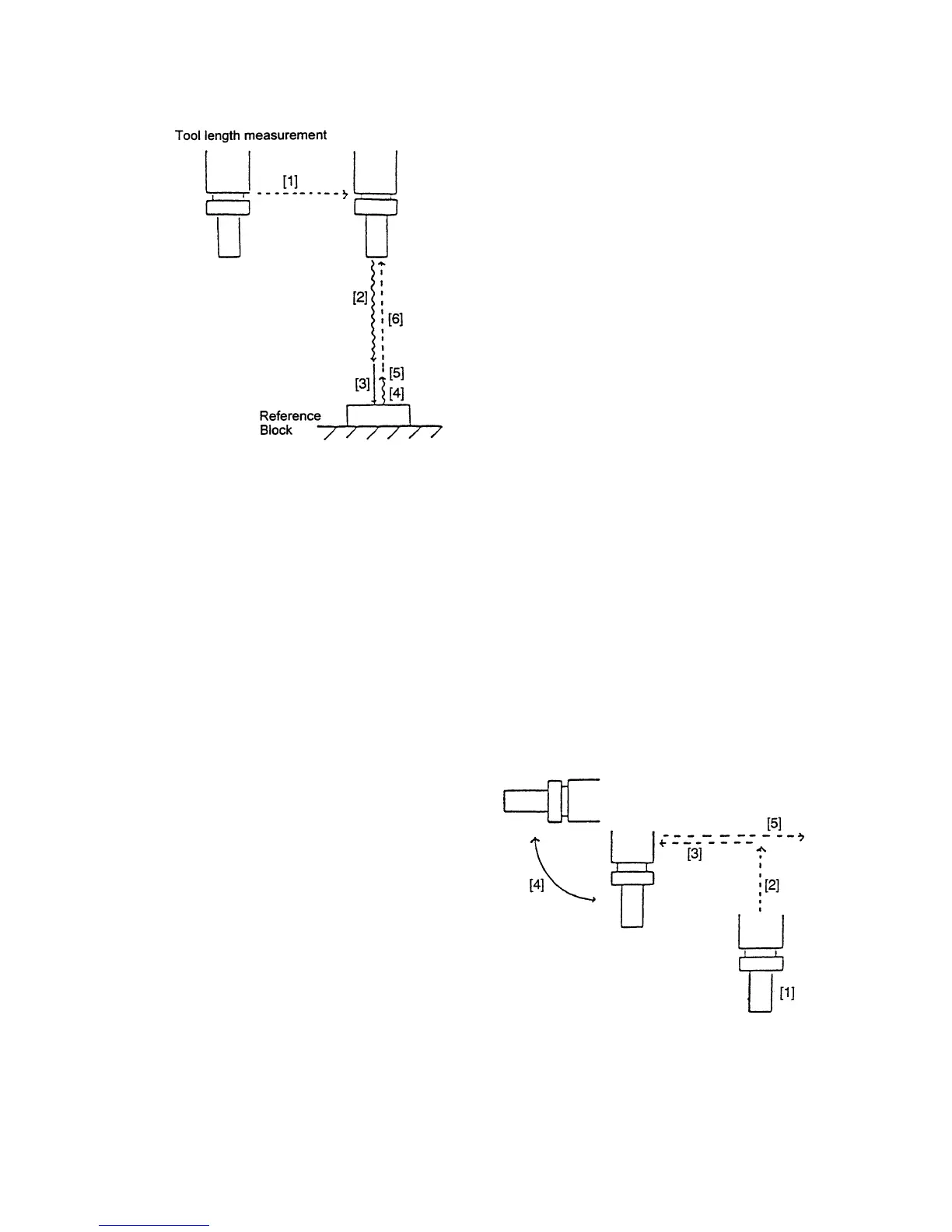

(4) Description of Measuring Operation
[1] The X and Y axis move to the reference
block position at rapid traverse rate.
[2] Bring the Z axis close to the reference
block by the [HANDLE] or [JOG] feed.
(Operate just in the automatic mode.)
[3] Apply the Z axis to the reference block
by the [HANDLE] or [JOG] feed.
→ The buzzer sounds and the offset
amount of the H code is rewritten.
[4] Retract from the block by the [HANDLE]
or [JOG] feed until the buzzer goes off.
[5] Press the [PROGRAM START] switch.
[6] The Z axis moves to the ATC position at rapid traverse rate and the program proceeds
to the next block.
* If the [PROGRAM START] switch is pressed after completing the movement, [1],
the program proceeds to the next block, cancelling the movement [2] on.
(5) ATC Operation
Ordinary ATC operations, as mentioned below, vary by machine type, which operate in the
same way as ATC canned cycle.
ATC (M06)
[1] The coolant stops and the spindle
stops.
[2] The Z axis moves to the ATC position at
rapid traverse rate.
[3] Spindle orientation is performed, and
the X and Y axes move to the ATC
position at rapid traverse rate.
[4] ATC
[5] The X and Y axes move to the
reference block position at rapid
traverse rate.
(Note) As with the ATC canned cycle, set the parameters in advance.
