Technical Expl
anation
/ SKii
P
®
4
Page 15/73
5.
Gate Driver Board
5.1
Overview
The functionality of the Gate Driver board is indicated in the followi
ng block diagram.
•
Gate driver interface SKiFace marked as red block in Figure 5.1 (refer to Chapter 5.2)
•
Gate driver board, marked as green block in Figure 5.1 (refer to Chapter 5.3)

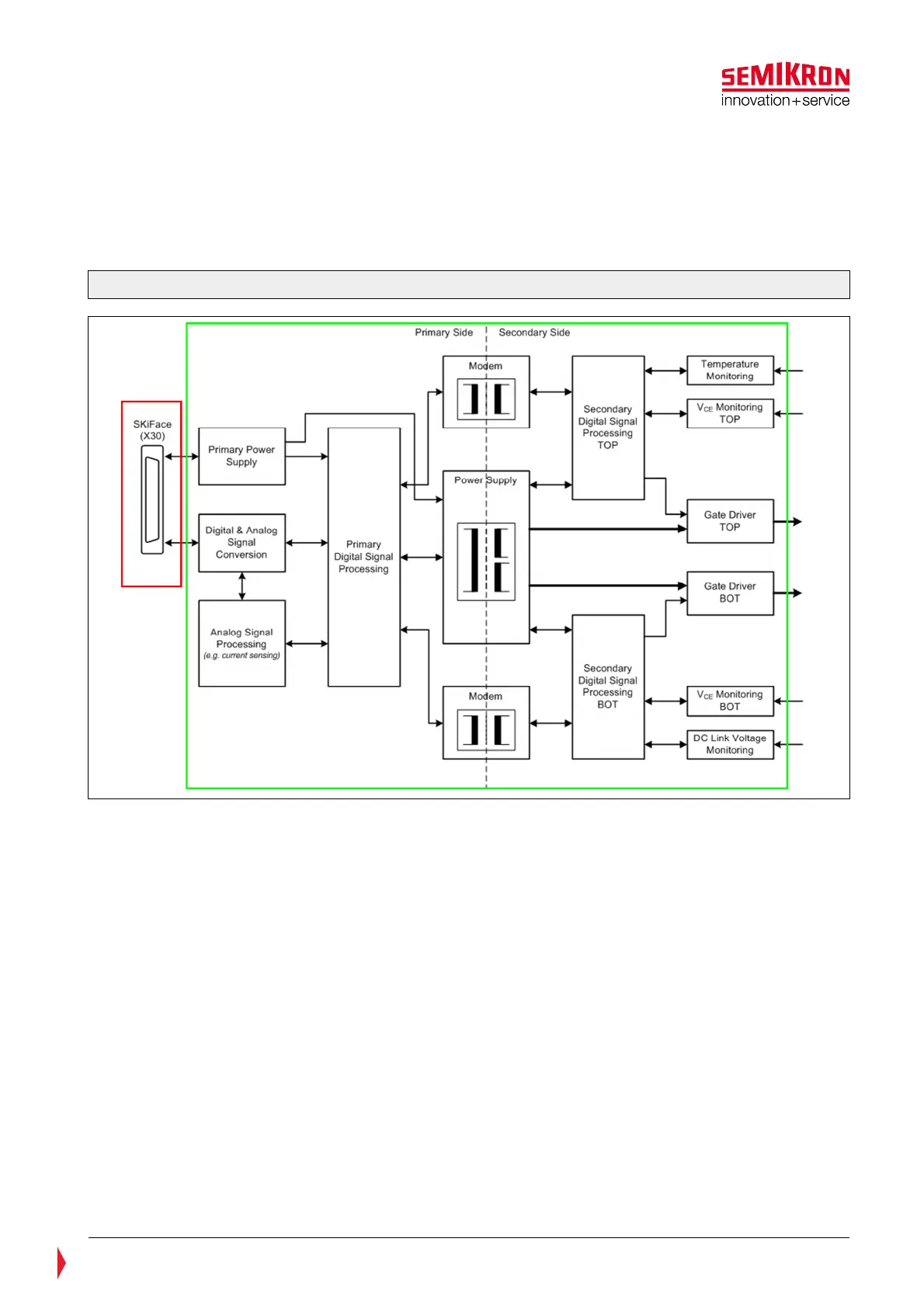

Figure 5.1: Gate Driver Board block diagram
