SEMIKRON SKiiP 4 - Half Bridge Laser Label Information; Warranty Label Identification; Data Matrix Code Explained

© by SEMIKRON / 2017-09-07 / Technical Explanation / SKiiP
®
4 Page 67/73

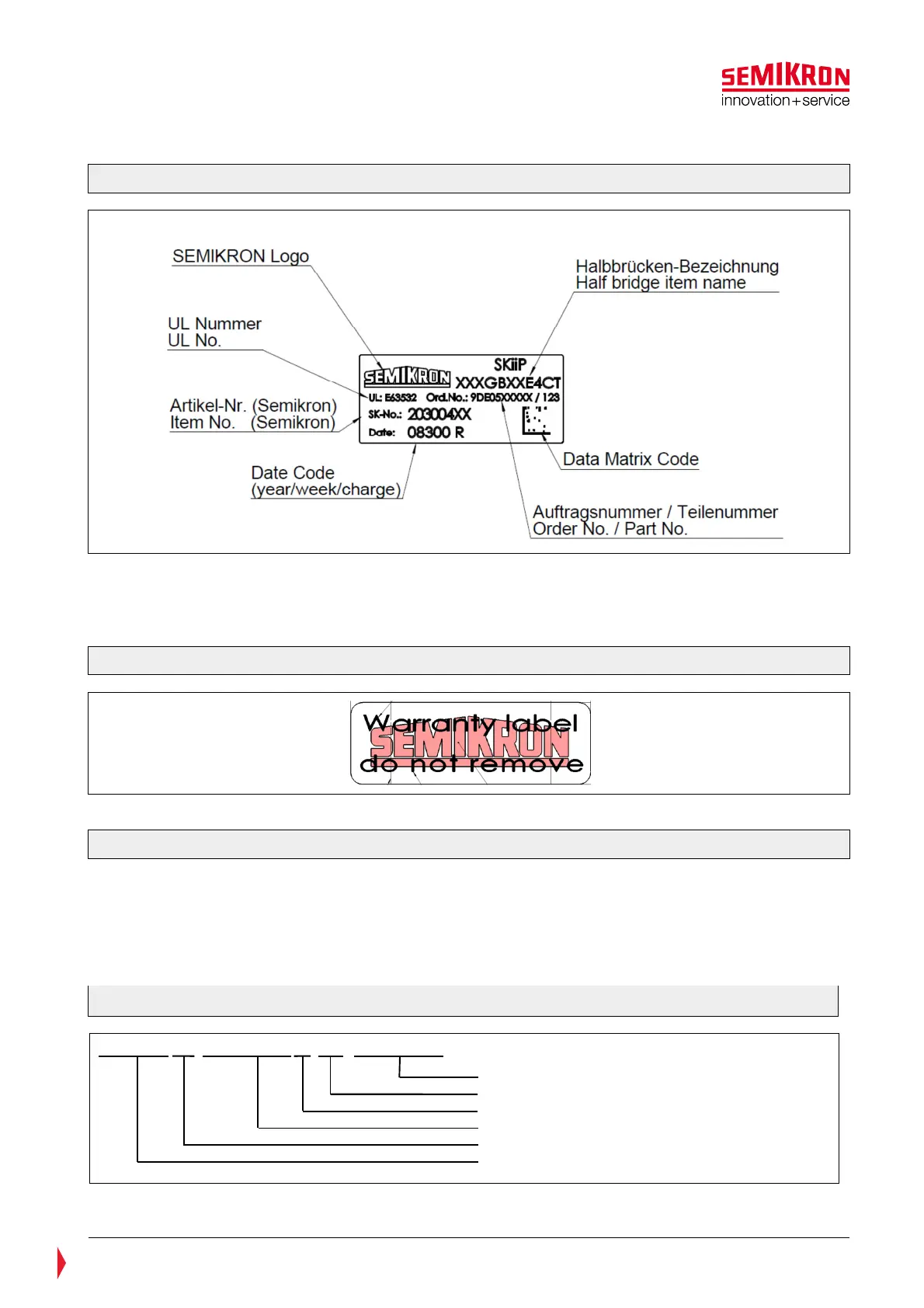

8.1.2 Half bridge Laser Label
Figure 8.2: Half bridge label of SKiiP
®
4
8.1.3 Warranty Label
The warranty label is shown in Figure 8.3. The position of the warranty label can be found in the
corresponding data sheet.
Figure 8.3: Warranty Label of SKiiP
®
4
Please note: Removing the warranty label will result in loss of warranty in case of product reclamation
8.1.4 Data Matrix Code
The Data Matrix Code is described as follows
• Cell size: 0,3mm
• Read distance: 60 – 100mm
• Max. angle of 30° (vertical reference line) for reading
Figure 8.4: Data Matrix Code of SKiiP
®
4 (example)
2060XXXX01_16DE12345601_001_ABCDEFGHIJ
10 digits free for customer information
3 digits continuously module number
2 digits additionally order number
10 digits production order number
2 digits
8 digits SKiiP item number
