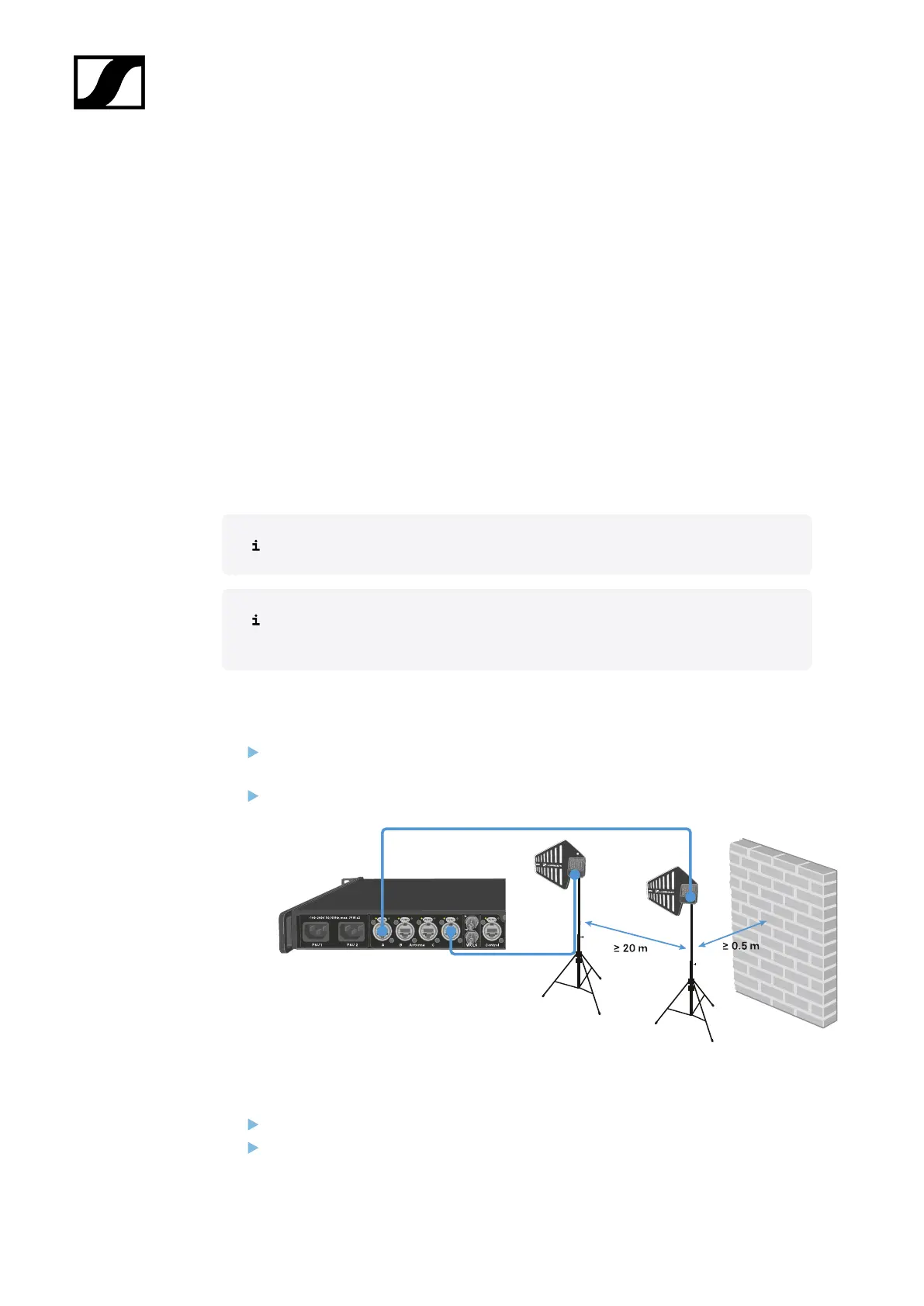

Connecting antennas
You can connect up to four antennas to the Base Station.
Recommandations regarding the antenna setup:
• Keep a distance more than 20 m (787.4") between the antenna and another antenna.
• Keep a distance more than 0.5 m (19.69") between the antenna and a wall.
The cable must
• be a CAT5e or higher,
• have ruggedized plugs and
• not extend 100 m (3937").
We recommend using a antenna cable cat 5e (see Accessories for the DAD).
Both variants (UHF and 1G4) can be connected to the Base Station at the same
time.
To connect an antenna to the Base Station:
Plug on side of the cable into one antenna port (A, B, C or D) at the rear side of the
Base Station.
Plug the other side of the cable into an antenna.
To disconnect an antenna from the Base Station:
Hold down the push button.
Unplug the cable from the Base Station.
