| 3 - User manual

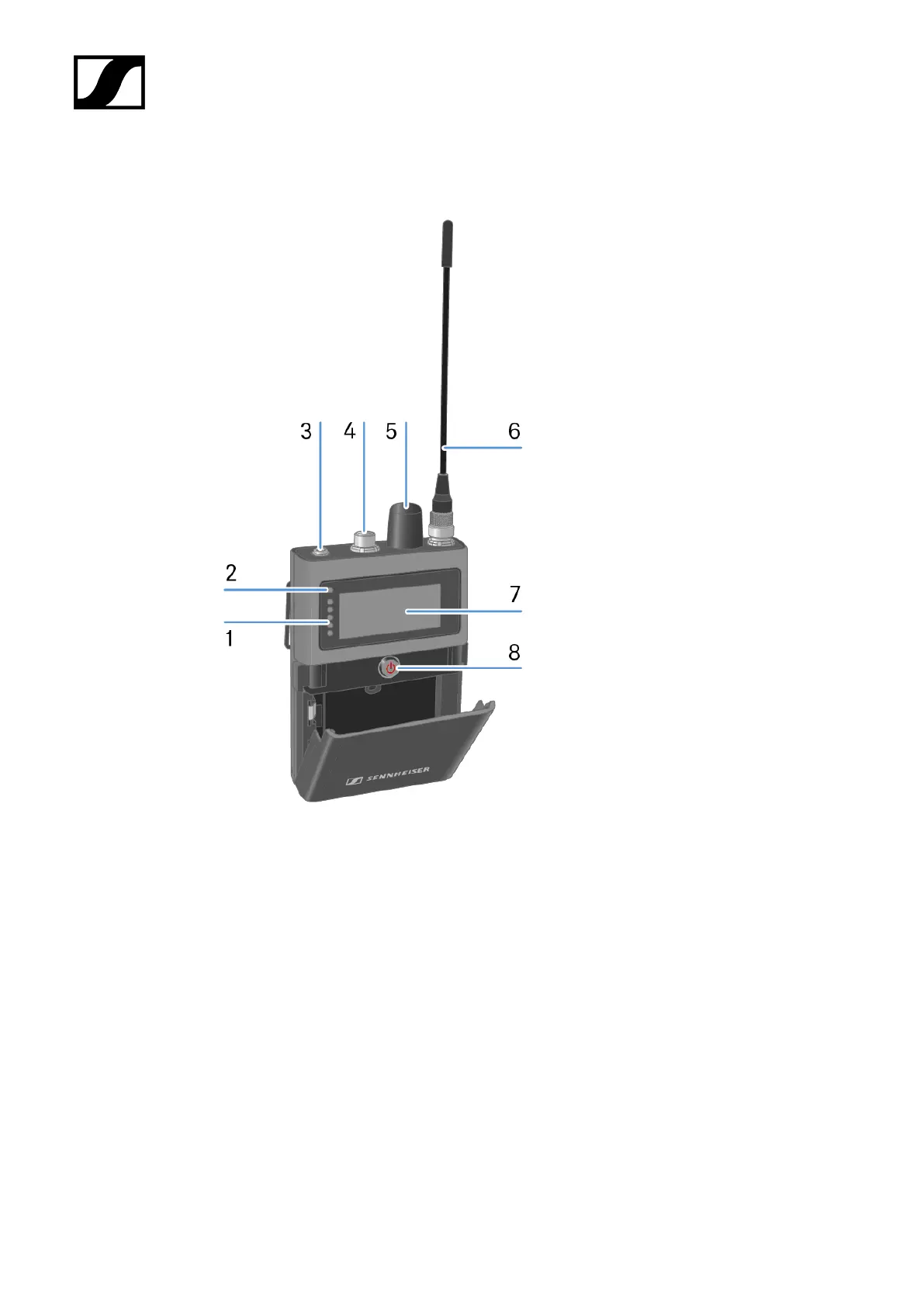

Product overview
1 LEDs
• see Meaning of the LEDs
2 Status LED
• see Meaning of the LEDs
3 Phones 3.5 mm jack
• see Connecting earphones
4 Microphone / Instrument input
• see Connecting a microphone / instrument
5 Rotary encoder
• with push function
• see Information on the display
6 Antenna
• see Mounting the antenna
70
