| 3 - User manual

Setup with a mobile device

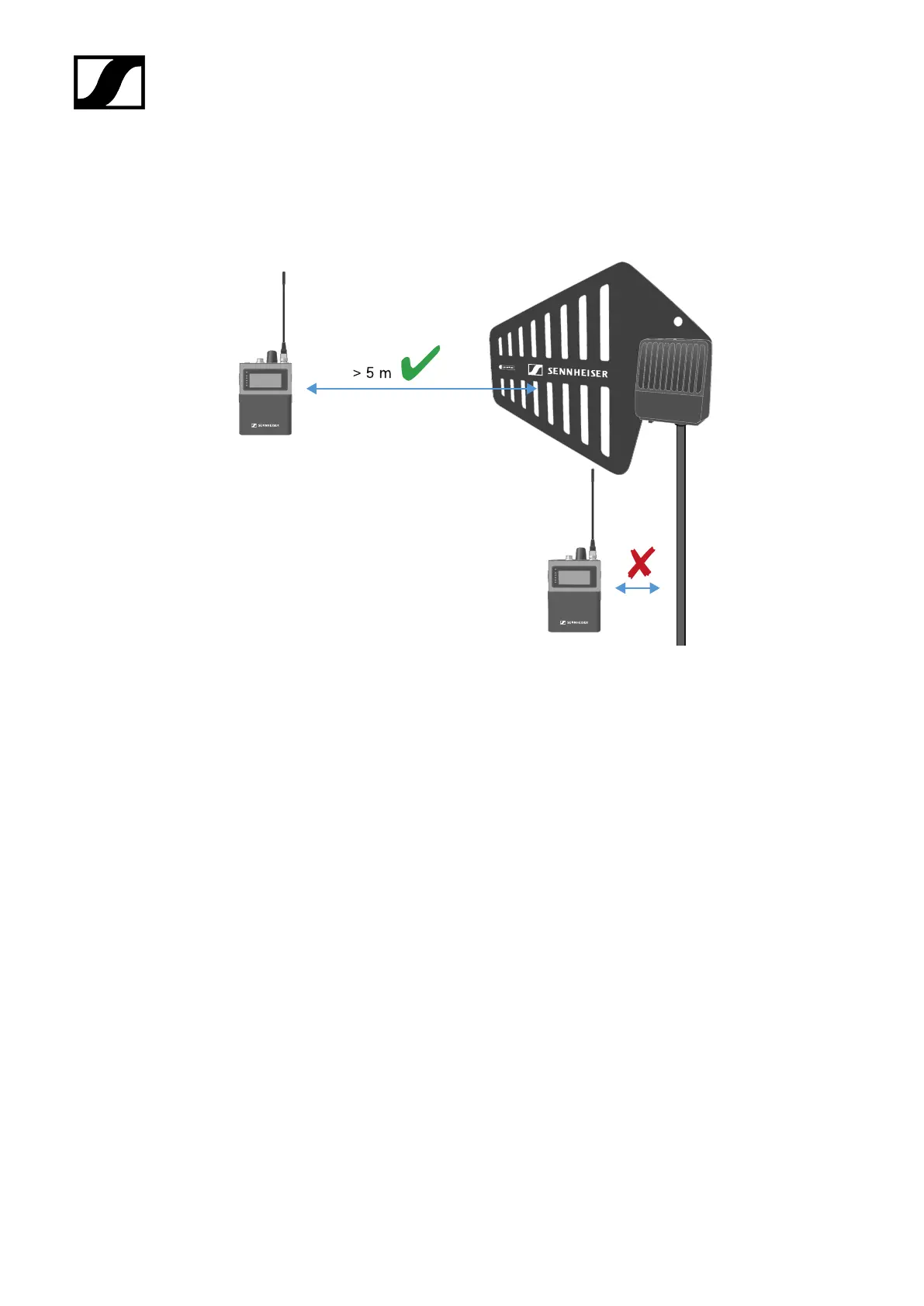

• Keep a distance more than 5 m (169.85") between the antenna and the mobile device.
