9.1. REAR-PANEL PORT DESCRIPTIONS
9.1.6 Ethernet/USB

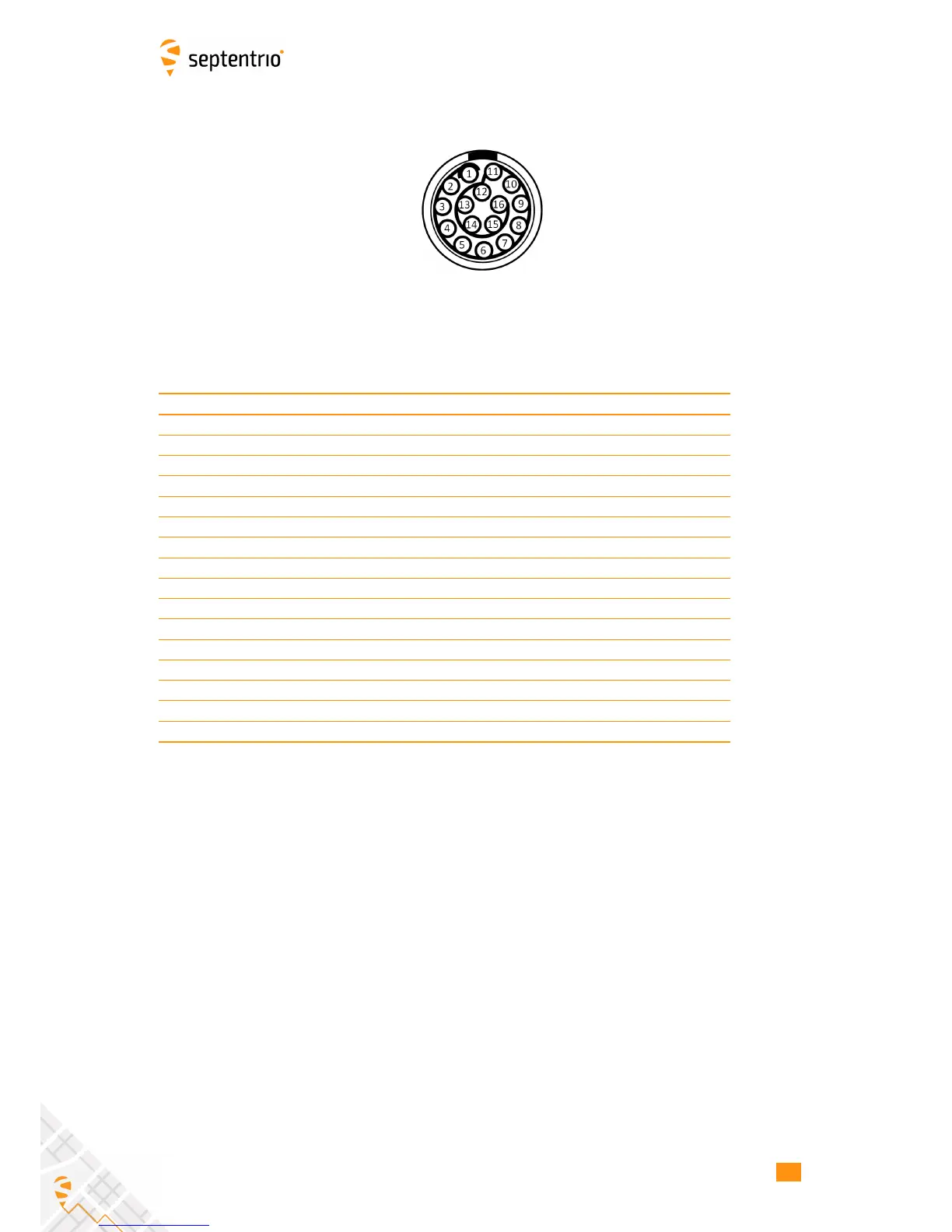

Figure 9-6: 16-pin female socket pin-numbering guide as viewed end on. Start
counting at pin indicated by bold semi-circle and follow the line in an anti-clockwise
direction. This socket can be paired with a LEMO multipole male connector of type
1B.
PIN # Name Comment
1 Ground
2 RXP Ethernet 10/100 RX+
3 RXN Ethernet 10/100 RX-
4 TXP Ethernet 10/100 TX+
5 TXN Ethernet 10/100 TX-
6 USB_DP USB 2.0 data signal positive D+
7 USB_DM USB 2.0 data signal positive D-
8 USB_VBUS USB Power. Cannot be used to power the receiver.
9 reserved
10 reserved
11 not connected
12 Ground
13 Ground
14 Ground
15 Ground
16 Ground
83
