Servomex DF-310E User Manual

Options DF-310E 29
.14 [3.5]
6-32 UNC-A2 X .50 LG
THREADED MOUNTING STUDS
4 PLS
3.30 [83.8]
4.15 [105.4]
6.80 [172.7]
1.21 [30.7]
5.45 [138.4]
PHANTOM LINE REPRESENTS
THE PANEL CUT OUT TO ALLOW
CLEARANCE FOR DISPLAY
ELECTRONICS.
.74 [18.7]
.69 [17.4]
3.650 [92.7]
.40 [10.1]
1.63 [41.3]
.25 [6.4]
.25 [6.4] 6.30 [160.0]
ESC
P
P
M

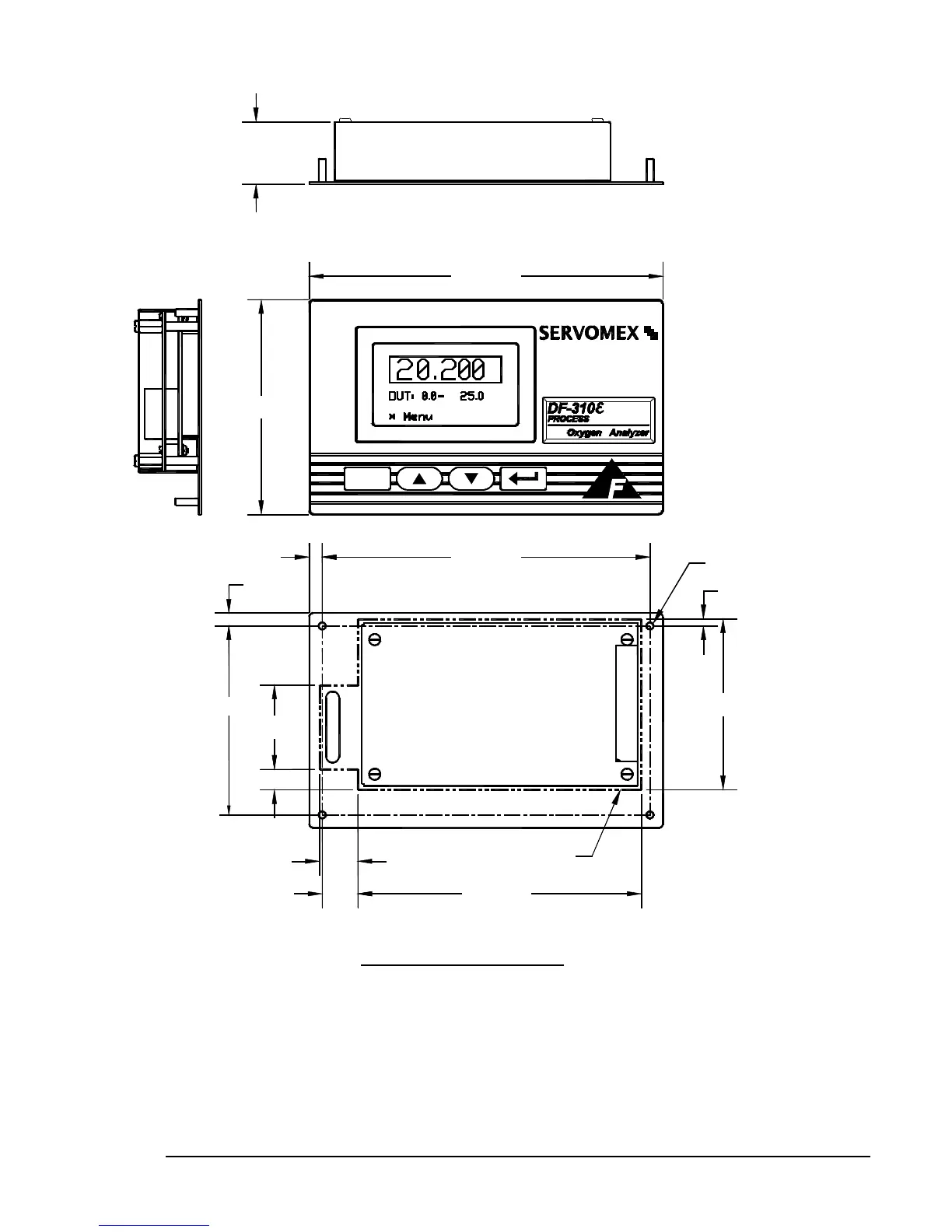

Figure 15: Remote Display

Servomex DF-310E Specifications

General

Brand	Servomex
Model	DF-310E
Category	Analytical Instruments
Language	English
