SERVOPRO FID Online Total Hydrocarbons Analyser
SERVOPRO FID 01000001A rev:5 44
Connect the wires in your cable to the screw terminals on the rear terminal
connector (Figure 1). Section 2.8 provides information on the rating and size of
cable.
Further details are given in Appendix A.6.

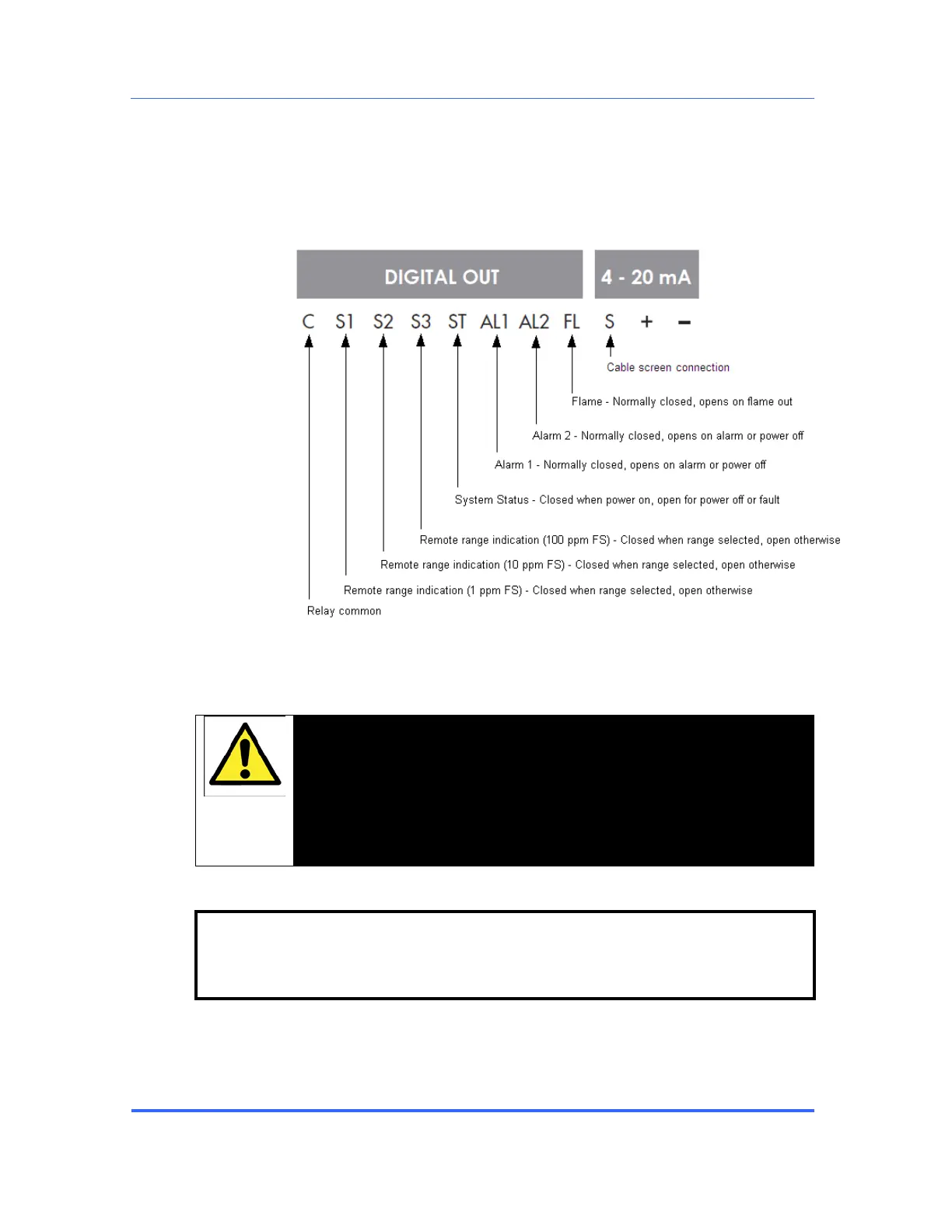

Figure 39 Digital output connections
5.3.4 Fuel shut-off/Hydrogen relay output
The output terminals are separated from the analyser mains circuits
by reinforced insulation. The terminals must only be connected to
circuits that are themselves separated from mains voltage by at
least reinforced insulation.
To comply with EMC requirements, a screened cable must be used to
Connect the wires in your cable to the screw terminals on the rear terminal
connector (Figure 1). Section 2.9 provides information on the rating and size of
cable.
