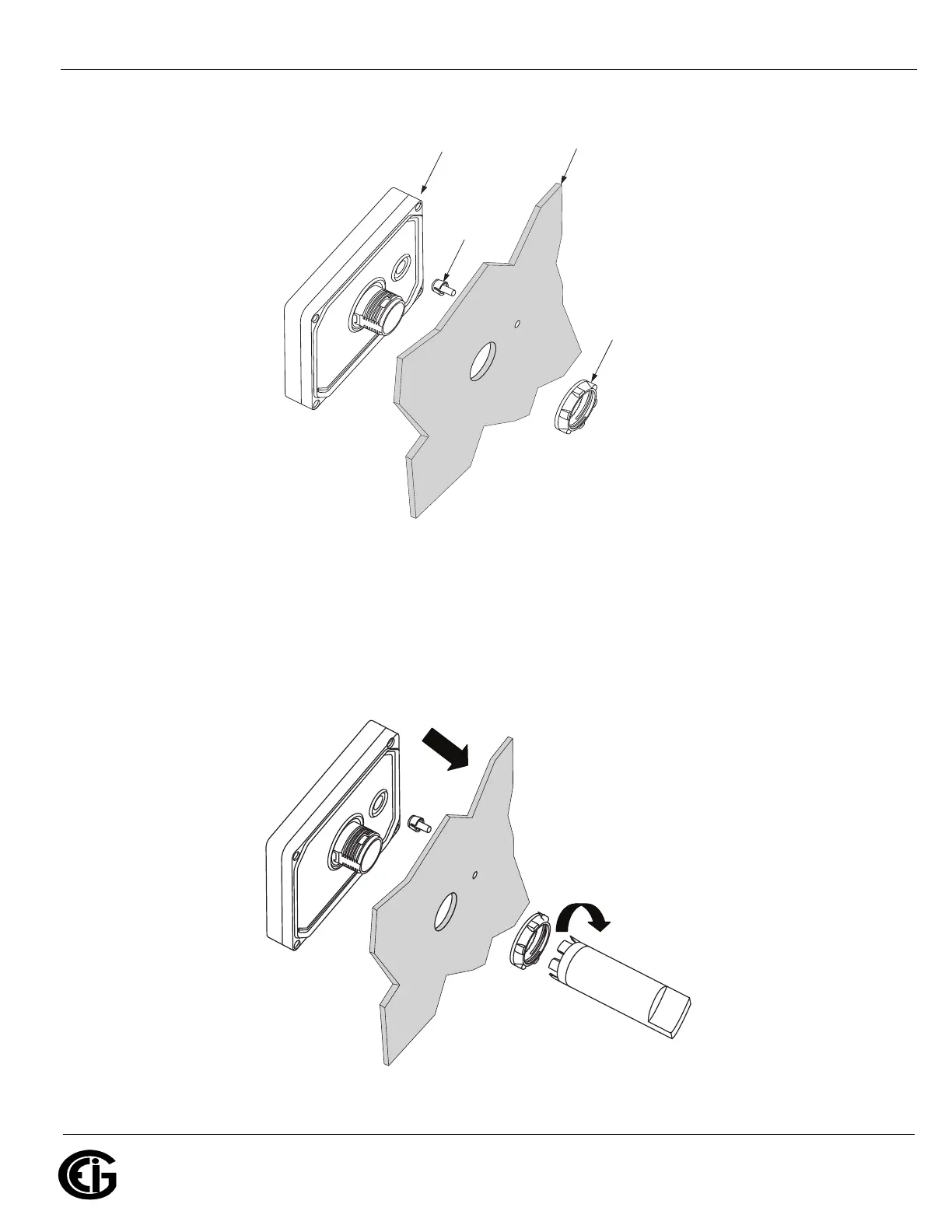

Figure 10.8: Installation Components
2. Insert the display module (along with the tee insert if you are using it) into the
panel hole (see Figure 10.8).
3. Screw the nut using the socket wrench with a torque between 1.2 and 2Nm/10.62
and 17.70 in-lb - see figure below.
Figure 10.9: Attaching the Nut Using the Socket Wrench
(5)
(1) (8)
(7)
1: Display Module (front)
2: Panel with Cutout
3: Display Installation Nut
4: Anti-Rotation Tee
