Doc# E166703 10-23
10: Using the Optional Display
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions

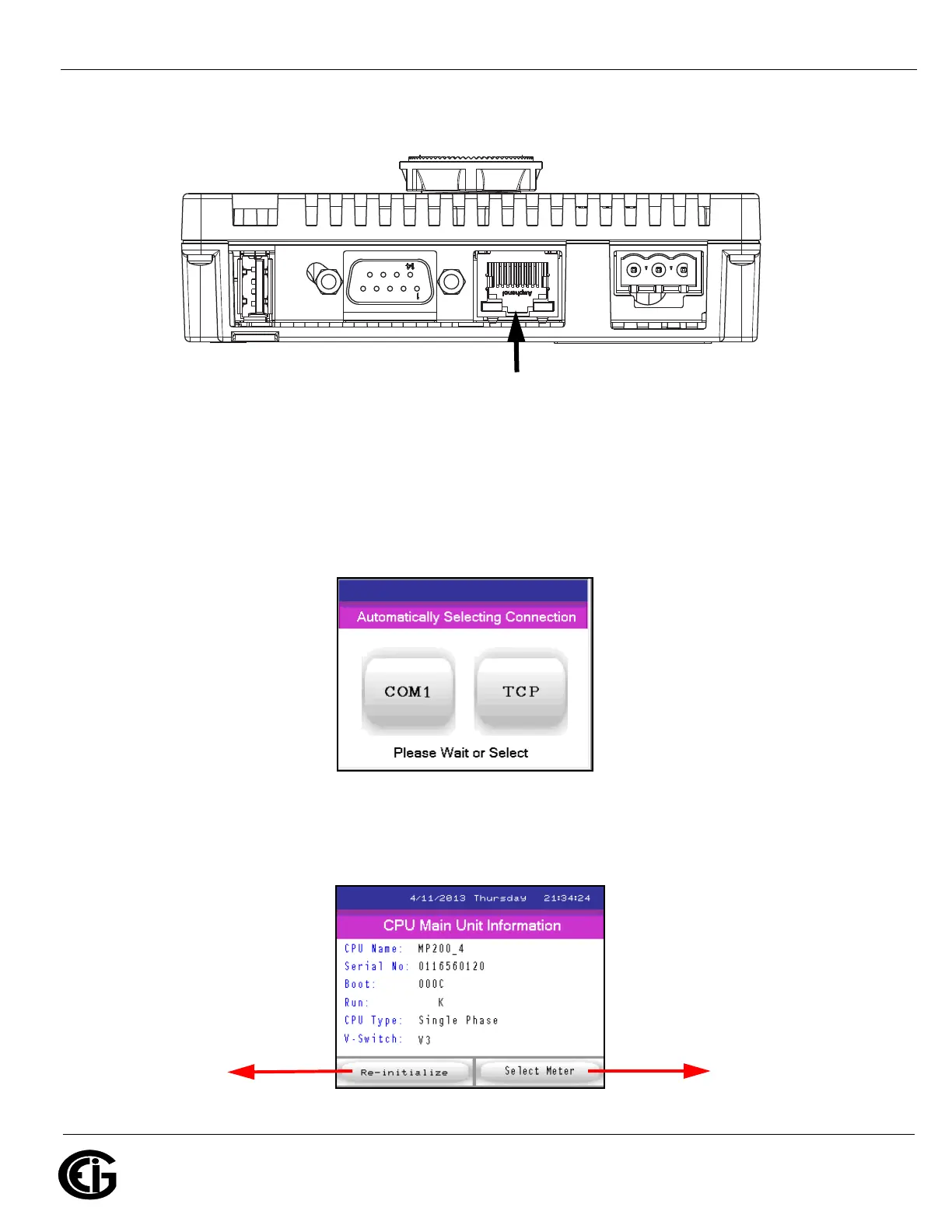

3. Use an Ethernet cable to connect the MP200 unit’s RJ45 port to the MDLN/MDSN
display’s RJ45 port, at the bottom of the display.
Figure 10.13: RJ45 Connection
4. Plug in the display. The display will show messages as it boots up. You will then see
the screen below. You can either click the TCP button or else wait for the display to
select the TCP connection automatically.
5. The display will initialize and then show the first screen, which lists information
about the MP200 unit. An example screen is shown below. Continue to 10.7: Dis-
play Screens, on page 10-24.
Display’s RJ45 Connection
