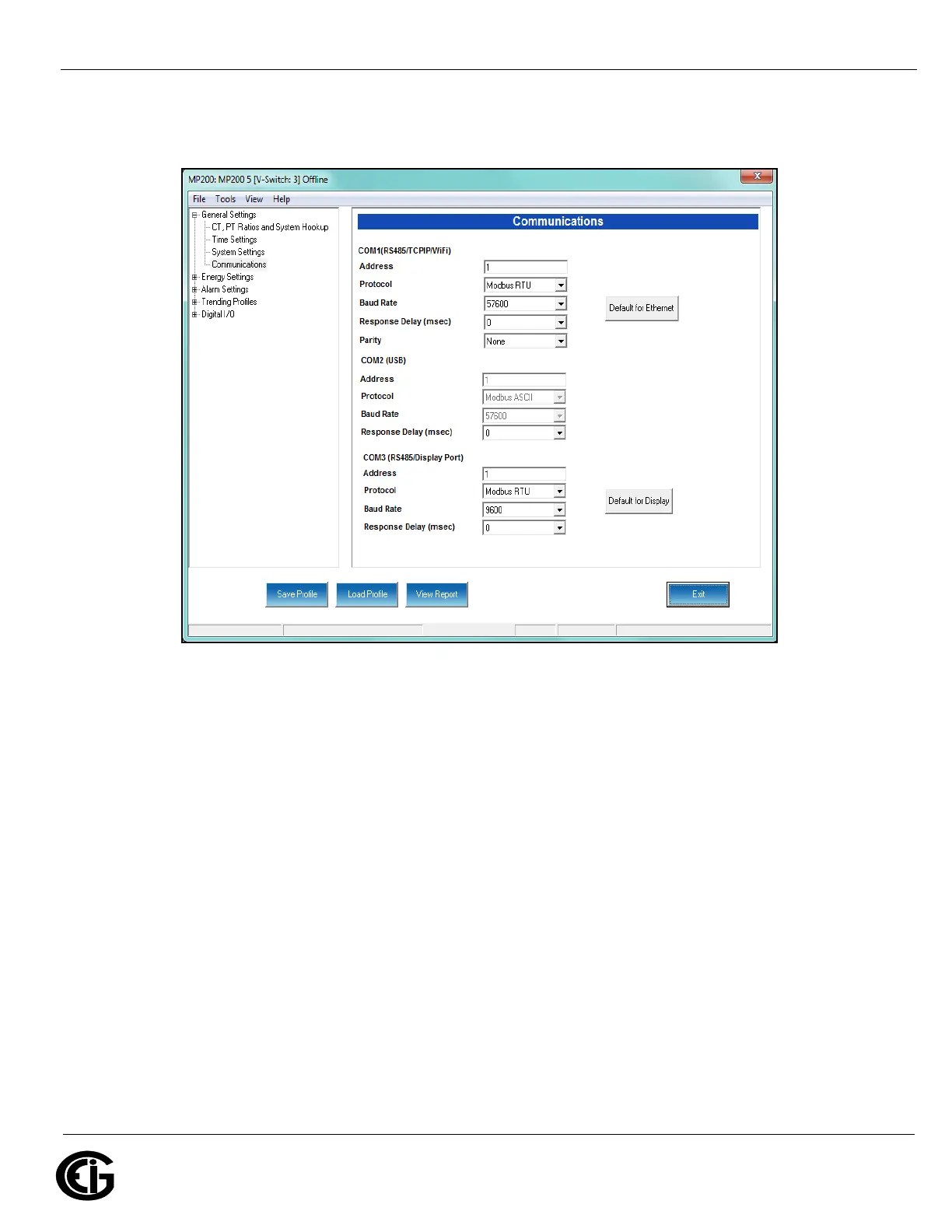

7. Click Communications. You will see the screen shown below. Use this screen to
enter communication settings for the MP200 unit's communications ports.
Valid Communication Settings are as follows:
COM 1: RS485/ Ethernet/WIFI (optional)
Address: 1-247
Baud Rate: 9600, 19200, 38400, 57600 (For WiFi/Ethernet, only 57600)
Protocol: Modbus RTU/ASCII (For WiFi/Ethernet, only Modbus RTU)
Response Delay: 0-750ms
Parity: Odd, Even or None
COM 2: USB port
Protocol: MODBUS ASCII
Baud Rate: 57600
Address: 1
