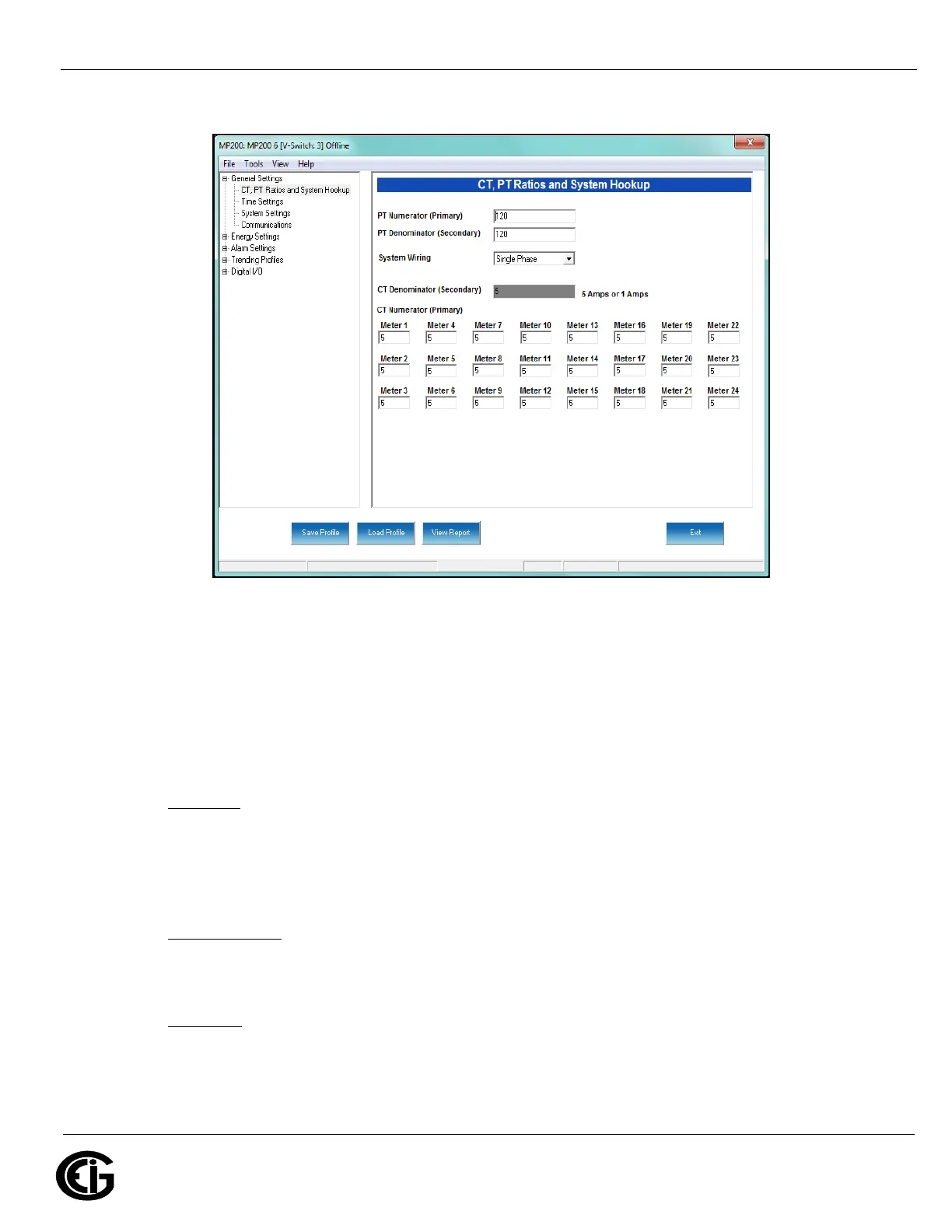

Note that the settings you see on the screen depend on your MP200 unit’s circuit con-
figuration. The top screen on the previous page is for an MP200 unit with the three
phase Wye circuit configuration; the bottom screen is for an MP200 unit with the three
phase 2 CT Delta circuit configuration, and the screen on this page is for an MP200
unit with the single phase circuit configuration.
The settings for this screen are as follows:
PT Ratios
PT Numerator (Primary): 1 - 99999999
PT Denominator (Secondary): 40 - 65535
System Wiring
3 Element Wye; Single Phase; 2 CT Delta
CT Ratios
CT Numerator (Primary): 1 - 65535
