Sharp MX-M266N

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 25

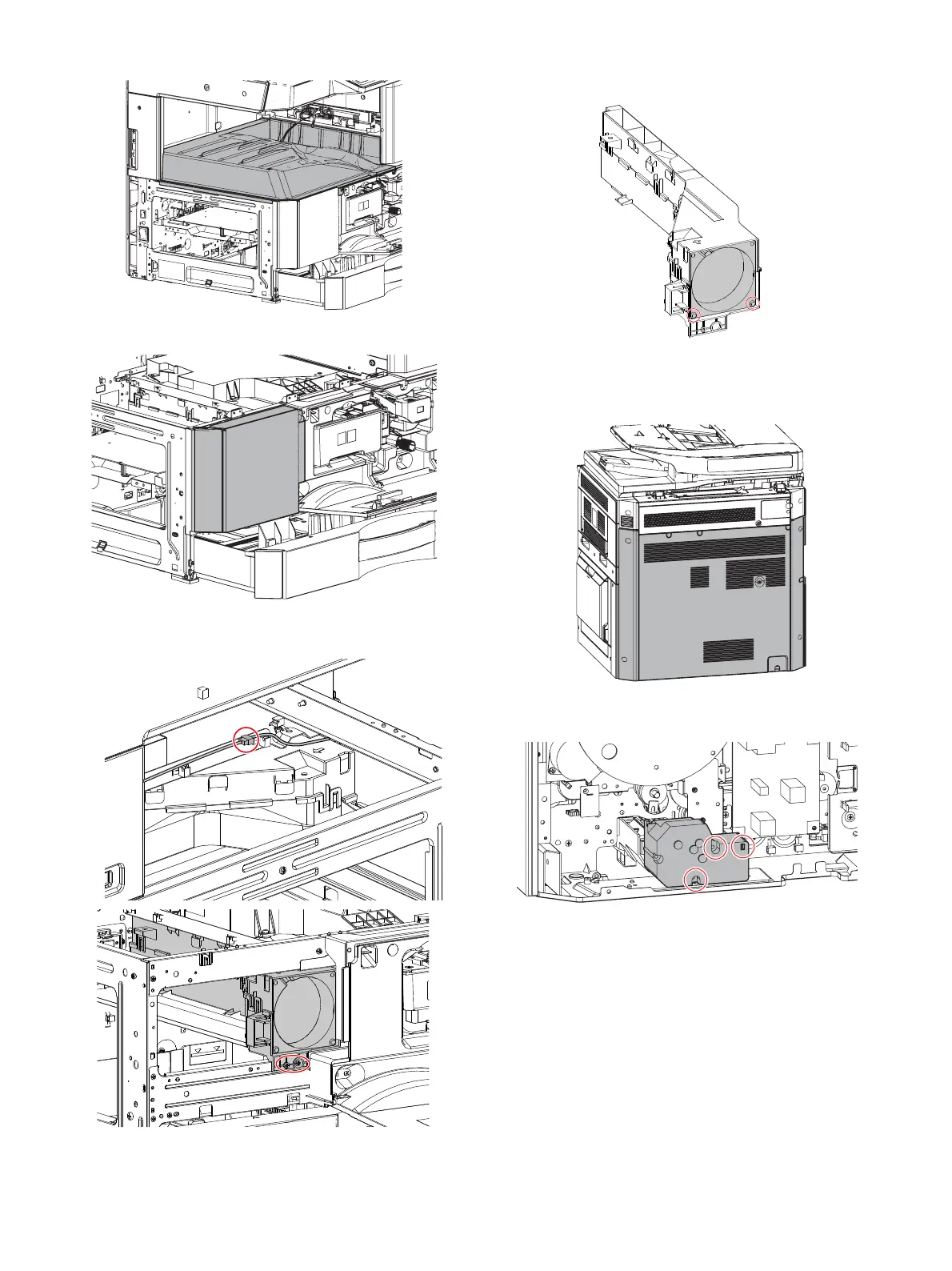

4) Remove the paper exit tray.
5) Remove the main front cabinet left.
6) Remove the connector of the harness and screws of the DV
cooling duct unit. Then, remove the DV cooling duct.
7) Remove the screws of the DV cooling duct and remove the DV
cooling duct.
(6) Lift up motor
1) Remove the rear cabinet.
2) Disconnect the harness of the lift up motor and screws of the
lift up motor. Then, remove the lift up motor.
