Sharp MX-M266N

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 17

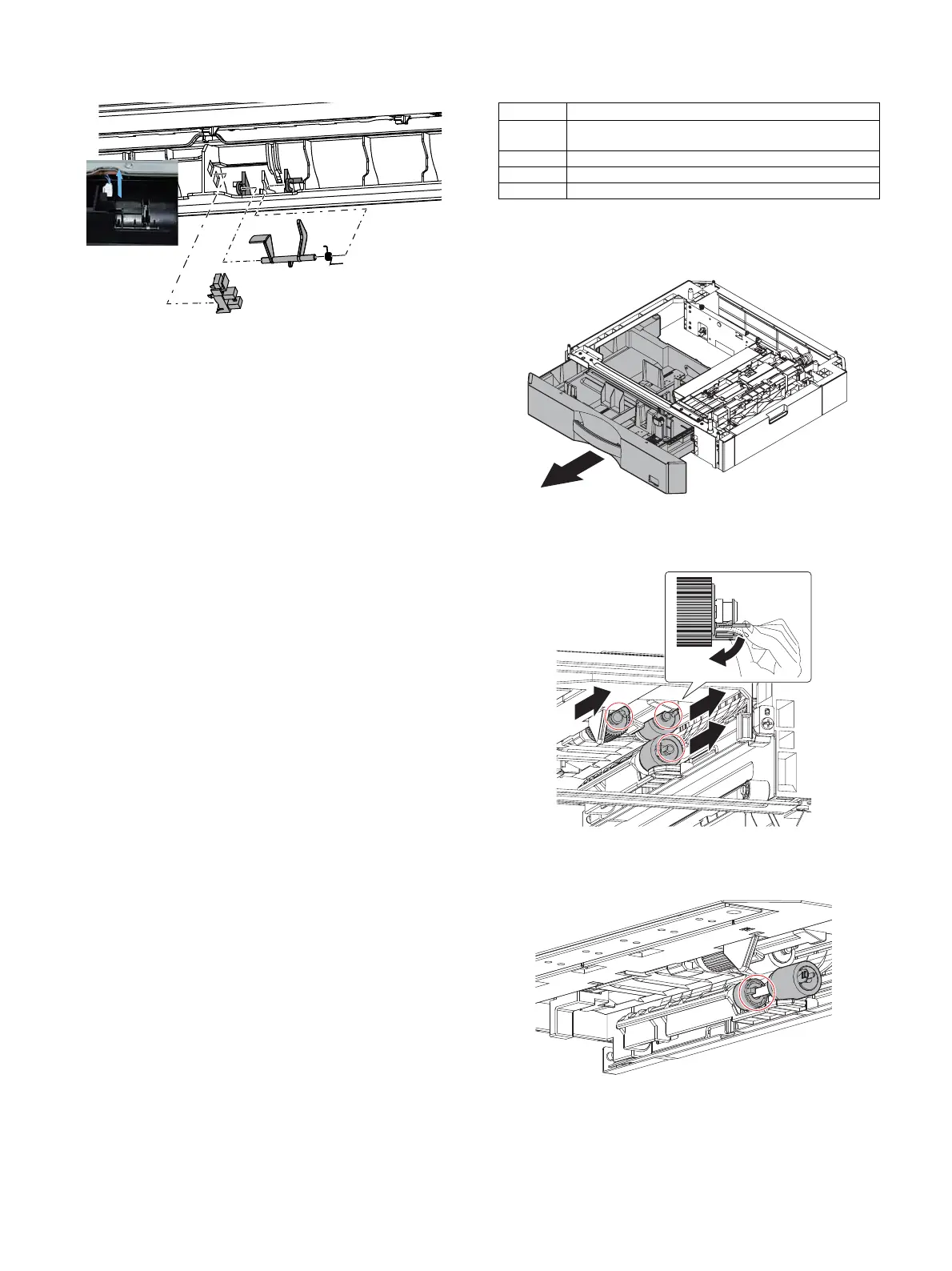

3) Remove the PIN sensor detection lever. Remove the connec-
tor, then, remove the PIN sensor.
I. Tray paper feed section/Paper transport
section
(1) Tray pick up roller/ Tray paper feed roller/ Tray
separation roller
1) Open the tray.
2) Remove the tray pick up roller, the tray paper feed roller and
the tray separation roller.
3) Remove the tray separation roller is fixed, the dent part of the
clutch has to be fit with the tray separation roller.
No. Contents
1 Tray pick up roller/ Tray paper feed roller/ Tray separation
roller
2 Tray paper feed drive unit
3 Tray transport clutch/Tray paper feed clutch
4 Tray transport roller
