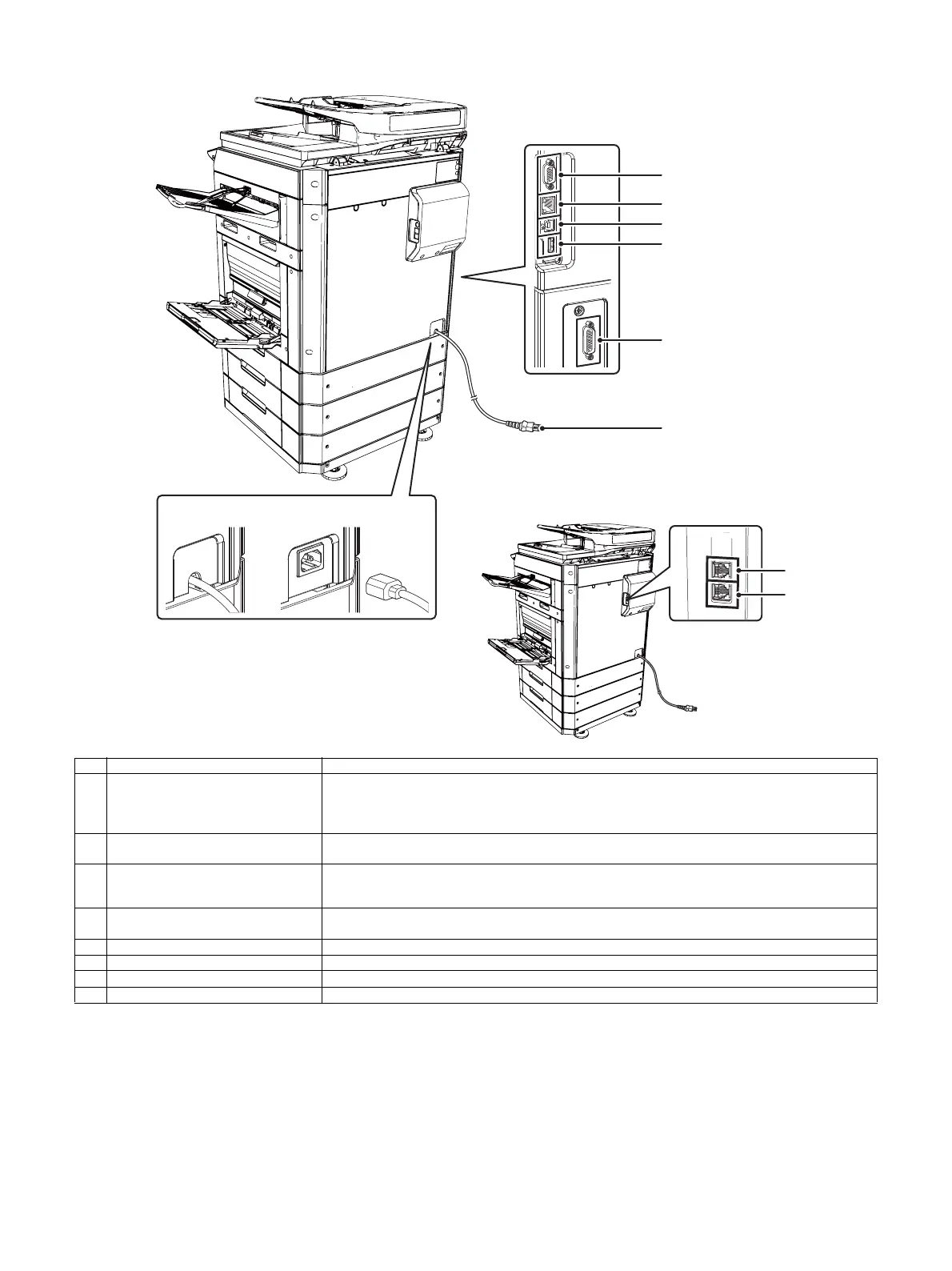

MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 4
4. I/F connectors
No. Name Function/Operation
1 Service-only connector This connector is for use only by service technicians.
Connecting a cable to this connector may cause the machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be less than 118" (3 m) in length.
2 LAN connector Connect the LAN cable to this connector when the machine is used on a network.
For the LAN cable, use a shielded type cable.
3 USB connector (B type) Supports USB 2.0 (Hi-Speed).
A computer can be connected to this connector to use the machine as a printer.
For the USB cable, use a shielded cable.
4 USB connector (A type) Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB memory to the machine.
5 Connector for the finisher only Connects the finisher.(At the time of optional wearing)
6 Power plug
7 Extension phone jack When the fax function of the machine is used, an extension phone can be connected to this jack.
8 Telephone line jack When the fax function of the machine is used, the telephone line is connected to this jack.
When a fax expansion kit is installed
6
7
8
5
1
2
3
4
100V Type 200V Type
