MX-M316N OPERATIONAL DESCRIPTIONS 11 – 17
9. Duplex section

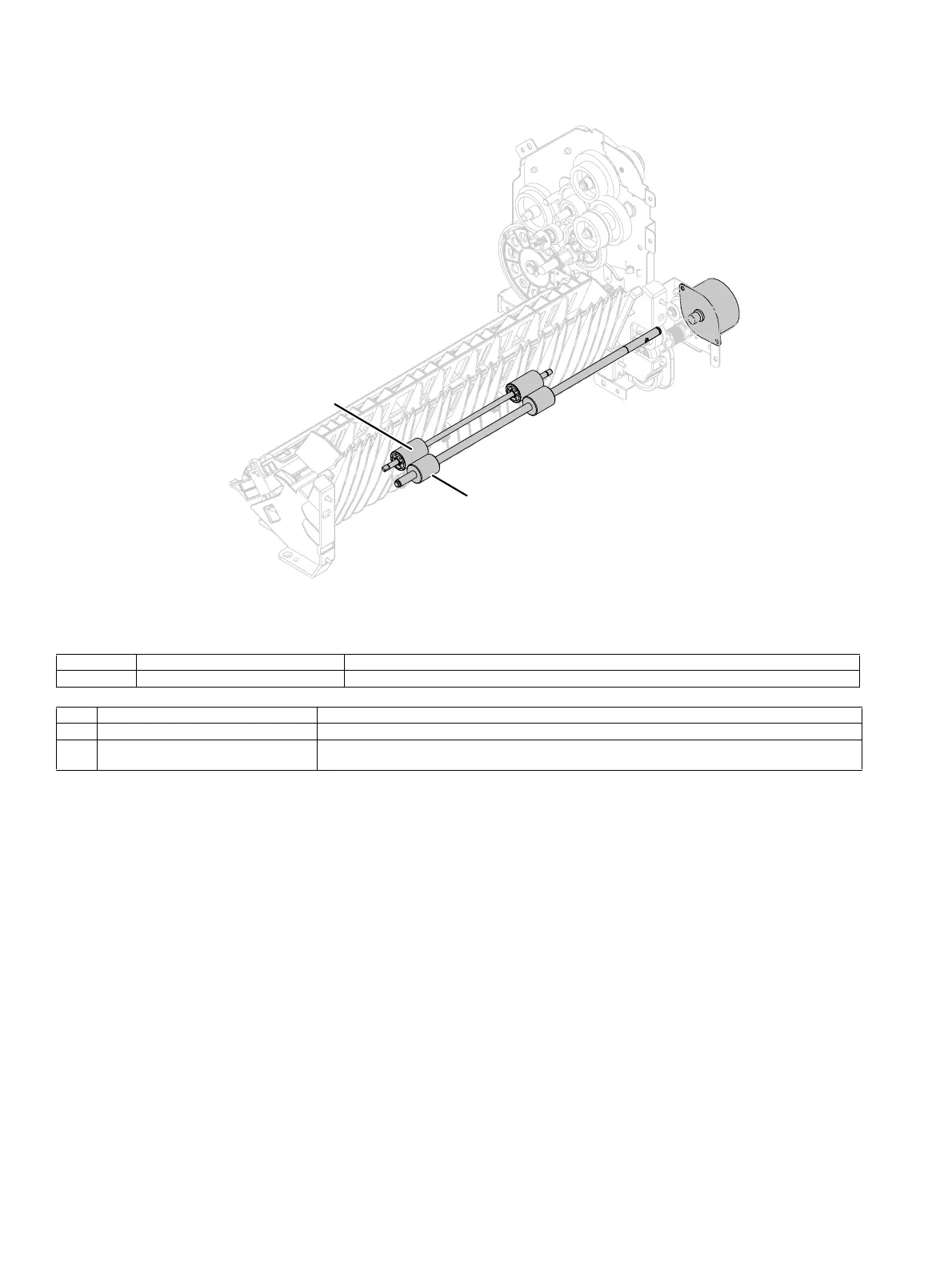

A. Mechanism relation diagram
B. Operational description
The switched back paper which comes from paper exit section goes to
ADU section. The paper feed rollers are driven by the duplex motor
transporting the paper to the registration section
Signal name Name Function and operation
ADUM Duplex motor Drives the rear fusing roller and the paper exit roller with the duplex model.
No. Name Function and operation
1 Paper feed roller (Idle) Applies pressure to the back of the paper for drive to the Lower Duplex Transport Rollers
2 Paper feed roller (Drive)
Drive Roller in upper Duplex section that transports paper to the Lower transport rollers in the Duplex
Section.
ADUM
2
1
