MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 6
6. RSPF

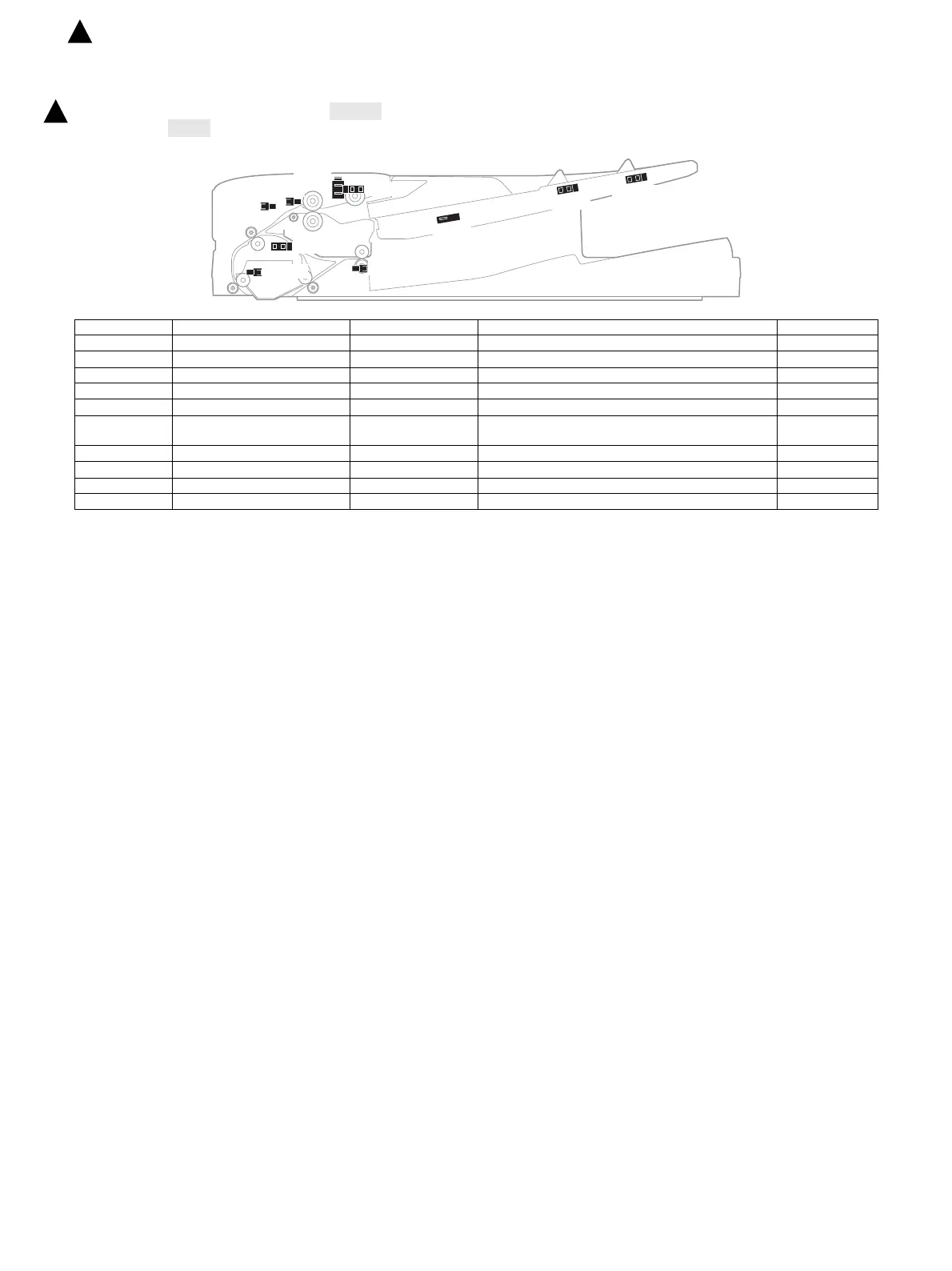

A. Sensors and detectors
(1) MX-M316N/M266N/M265N/M315N/M356N
MX-RP19/RP20
Signal name Name Type Function/Operation Note
SCOV RSPF cover open/close detector Micro switch Detects open/close of the RSPF cover.
SOCD RSPF open/close sensor Transmission type Detects open/close of the RSPF unit.
SPED Document sensor Transmission type Detects document empty in the RSPF paper feed tray.
SPLS1 Paper size detector 1 Transmission type Detects the document length in the RSPF paper feed tray.
SPLS2 Paper size detector 2 Transmission type Detects the document length in the RSPF paper feed tray.
SPPD1 Document transport sensor 1 Transmission type Detects paper feed and the document size in random
paper feed.
SPPD2 Document transport sensor 2 Transmission type Detects paper pass.
SPPD3 Document transport sensor 3 Transmission type Detects paper pass.
SPPD4 Document transport sensor 4 Transmission type Detects paper exit and switchback.
SPWS Document size detector Volume-type resistor Detects the document width.
SPED
SPWS
SOCD
SCOV
SPPD1
SPPD2
SPPD3
SPPD4
SPLS1
SPLS2
1
: ‘15/Aug.
1
