MX-M316N OPERATIONAL DESCRIPTIONS 11 – 13
5. Manual paper feed section

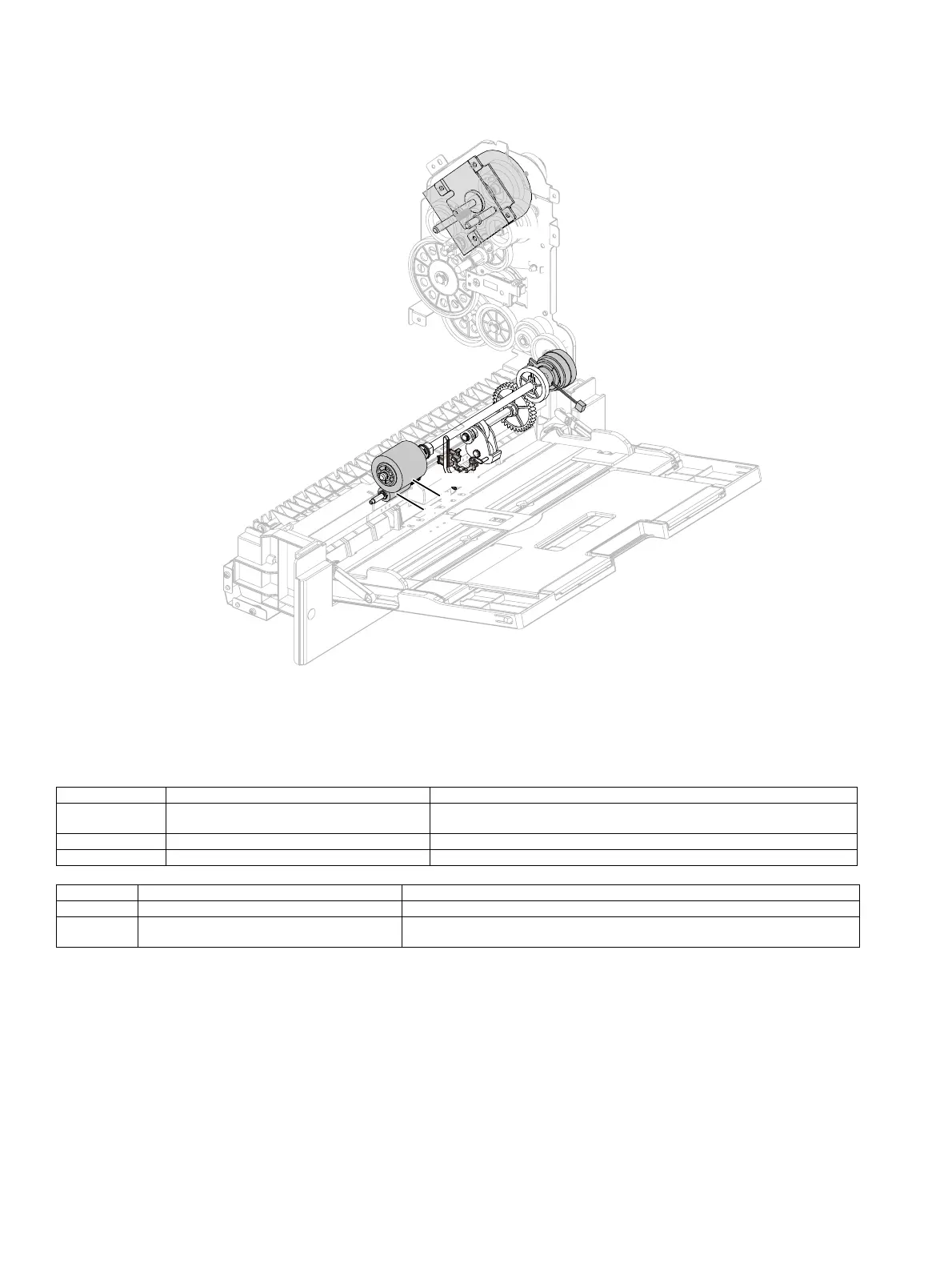

A. Mechanism relation diagram
B. Operational descriptions
Only the top sheet of paper is fed from the paper stack on the manual
bypass tray, the feed roller is pressed against the paper surface and
sent to the transport section.
The feed roller transports paper to registration section. Against the
paper, by applying a force in the direction opposite to the feed roller
from below, separation rollers are prevented double feeding of the
paper. On / OFF control of the feed roller is carried out by the Manual
Feed Clutch
This model does not have an automatic paper size detection function
in Multi-purpose tray.
Signal name Name Function and operation
MM Main motor
Drives the most of the driving parts except the duplex section, the toner section and
the scanner sections.
MPED Paper empty detector (Manual paper feed tray) Detects paper empty. (Manual paper feed tray)
MPFC Paper feed clutch (Manual paper feed tray) Controls the paper feed roller ON/OFF.
No. Name Function and operation
1 Paper feed roller Feeds paper to the paper transport section.
2 Separation roller Apply the pressure to the paper feed roller in reverse direction and prevents the paper
from feeding it in layered condition.
