Sharp MX-M266N

MX-M316N OPERATIONAL DESCRIPTIONS 11 – 16
8. Paper exit section

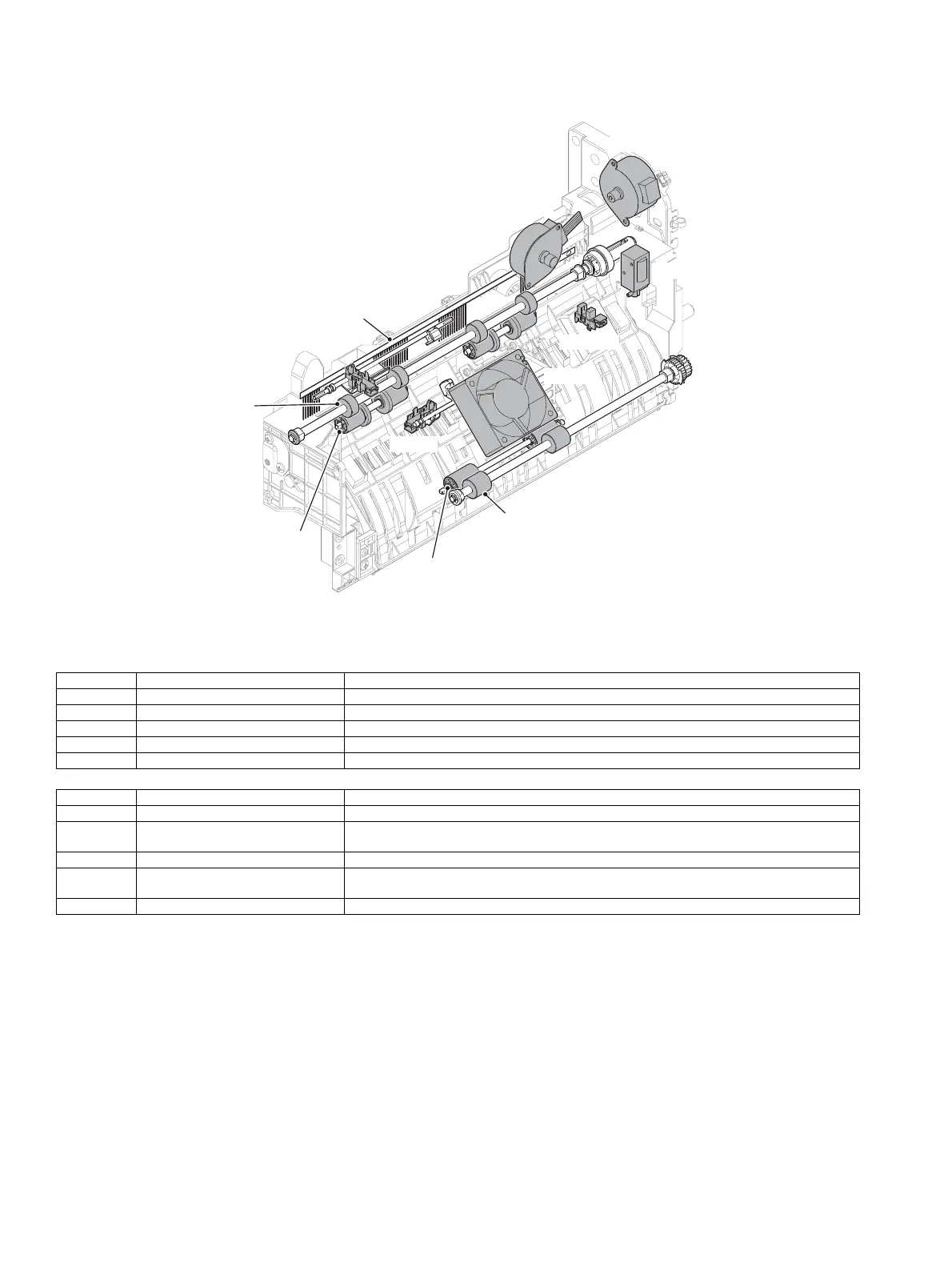

A. Mechanism relation diagram
B. Paper exit operation
The paper transported from the fusing section is sent from transport
roller to paper exit roller, and then discharged to the inner tray.
When the paper is discharged to the right tray: The paper is trans-
ported to paper exit roller, and the paper exit motor is reversed. Then
the paper is passed over the right paper exit gate through paper exit
roller to the right tray.
Signal name Name Function and operation
FUFM Paper exit cooling fan Cools the fusing section and the paper exit section.
OSM Offset motor Offsets (shifts) paper.
POD1 Paper exit detector 1 Detects paper transport from the fusing section.
POM Paper exit motor Drives the roller in the paper exit section.
SHPOS Shifter home positions sensor Detects the shifter home position.
No. Name Function and operation
1 Paper exit roller (drive) To exit paper onto the exit tray and perform switch back operations when in duplex mode.
2 Paper exit roller (idle)
To apply pressure to a paper with the paper exit roller (Drive), to give a feeding force of the exit roller to
a paper.
3 Fusing rear roller (drive) Transport the paper from the fusing unit to the paper exit unit.
4 Fusing rear roller (idle)
To apply pressure to a paper with the paper exit roller (Drive), to give a feeding force of the exit roller to
a paper.
5 Discharge Brush2 To discharge static generated in the paper exit section.
FUFM
POGS
SHPOS
POM
OSM
POD1
1
5
2
3
4
